This section explains how to connect your output devices (monitors) to your C900 card.

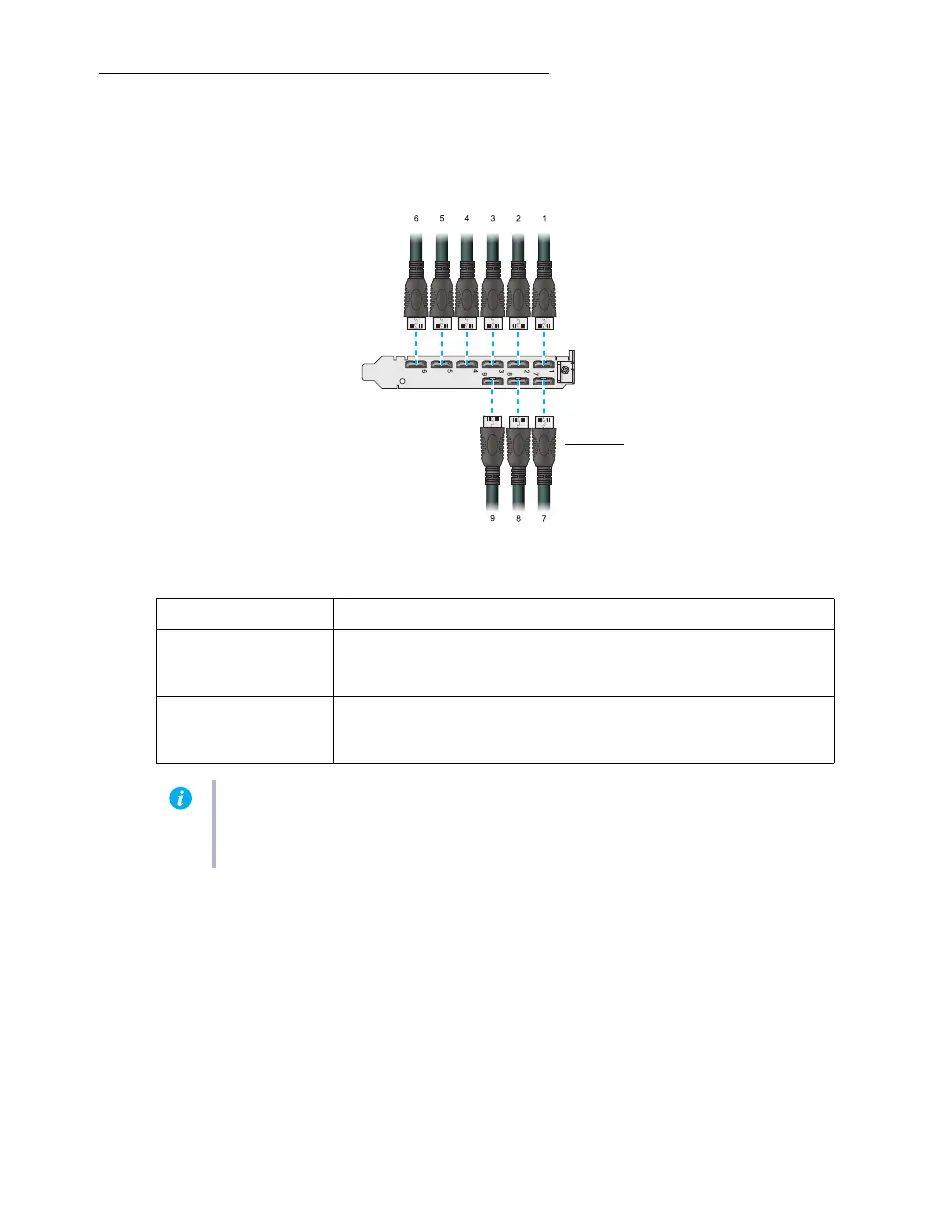

Connection overview
Description of supported connections
Device connector Description
HDMI If your monitor has an HDMI connector, attach your mini HDMI to
HDMI cable to your Matrox card. Connect the other end of the cable
to your monitor.
DVI If your monitor has a DVI connector, use a mini HDMI to DVI adapter
to connect your monitor cable to the mini HDMI connector on your
Matrox card. Connect the other end of the cable to your monitor.
Note
: To connect to the bracket of your Matrox product, the overmold (or boot) of the
mini HDMI connectors must respect the maximum width (0.551in/14 mm) and thickness
(0.331in/8.4 mm) stated in the HDMI specifications.
Monitor connector
(Mini HDMI)
