80 Matrox Display Wall – User Guide
Description of cable
Description of supported connections
Matrox M9120 and M9125 PCIe ×16

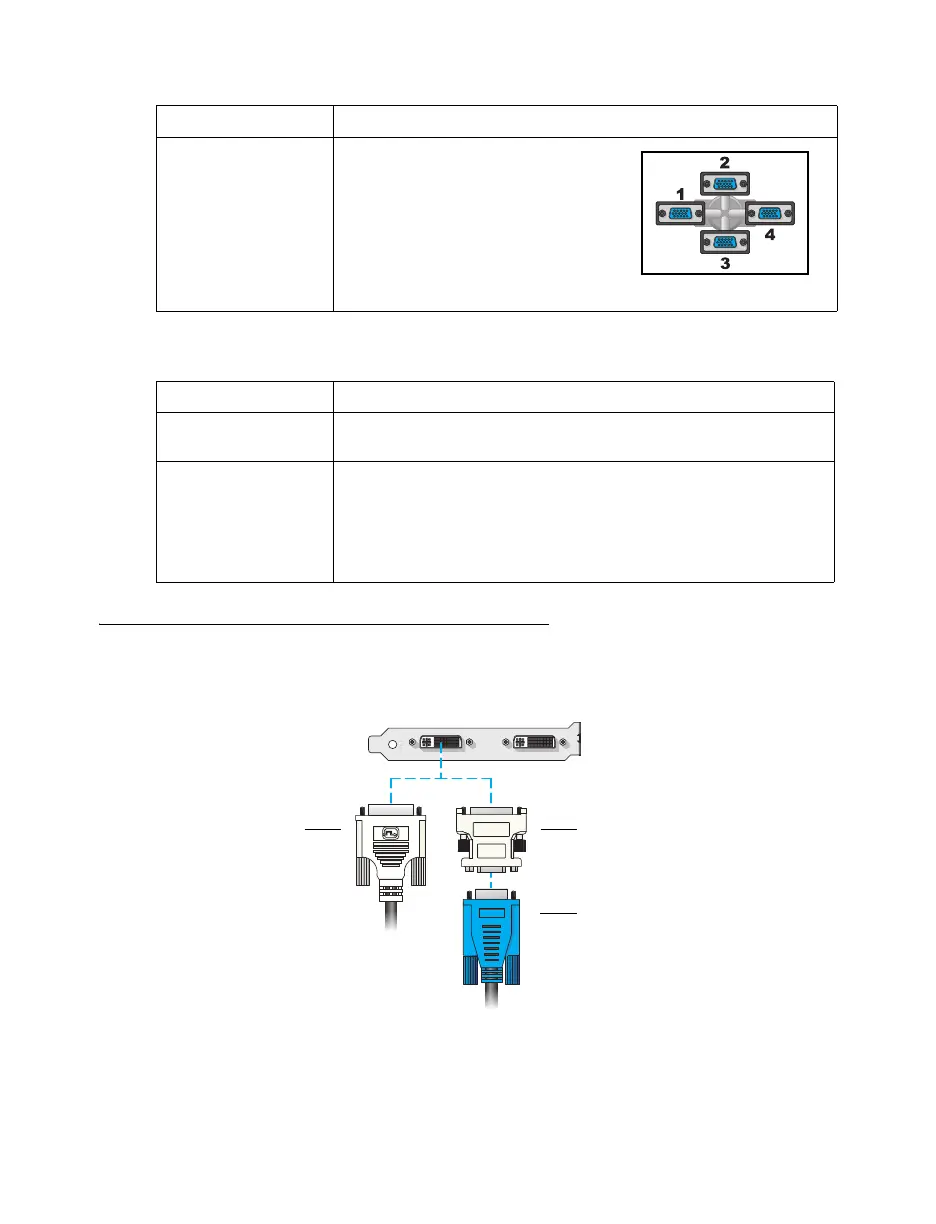

Connection overview
Cable Description
Output Matrox P690 cards use an LFH-60 to
quad-HD15 cable to connect up to
four (4) monitors per card. Monitors
are numbered consecutively based
on which connector each is attached
to, starting with connector labeled 1.
Device connector Description
HD-15 If your monitor uses an HD-15 connector, connect it directly to your
quad-monitor cable.
DVI If your monitor uses a DVI connector and supports analog input, you
need an HD15-to-DVI adapter (sold separately). Some monitors with
DVI connectors support both digital and analog input. If you’re using
one of these monitors with your Matrox product, make sure it’s
configured to use analog input. For more information, see your
monitor documentation.
LFH-60 to quad-HD-15 cable
Monitor
connector
(HD-15)
Monitor
connector
(DVI)
DVI to HD-15
adapter
