Matrox Display Wall – User Guide 83
Matrox M9140 LP PCIe ×16

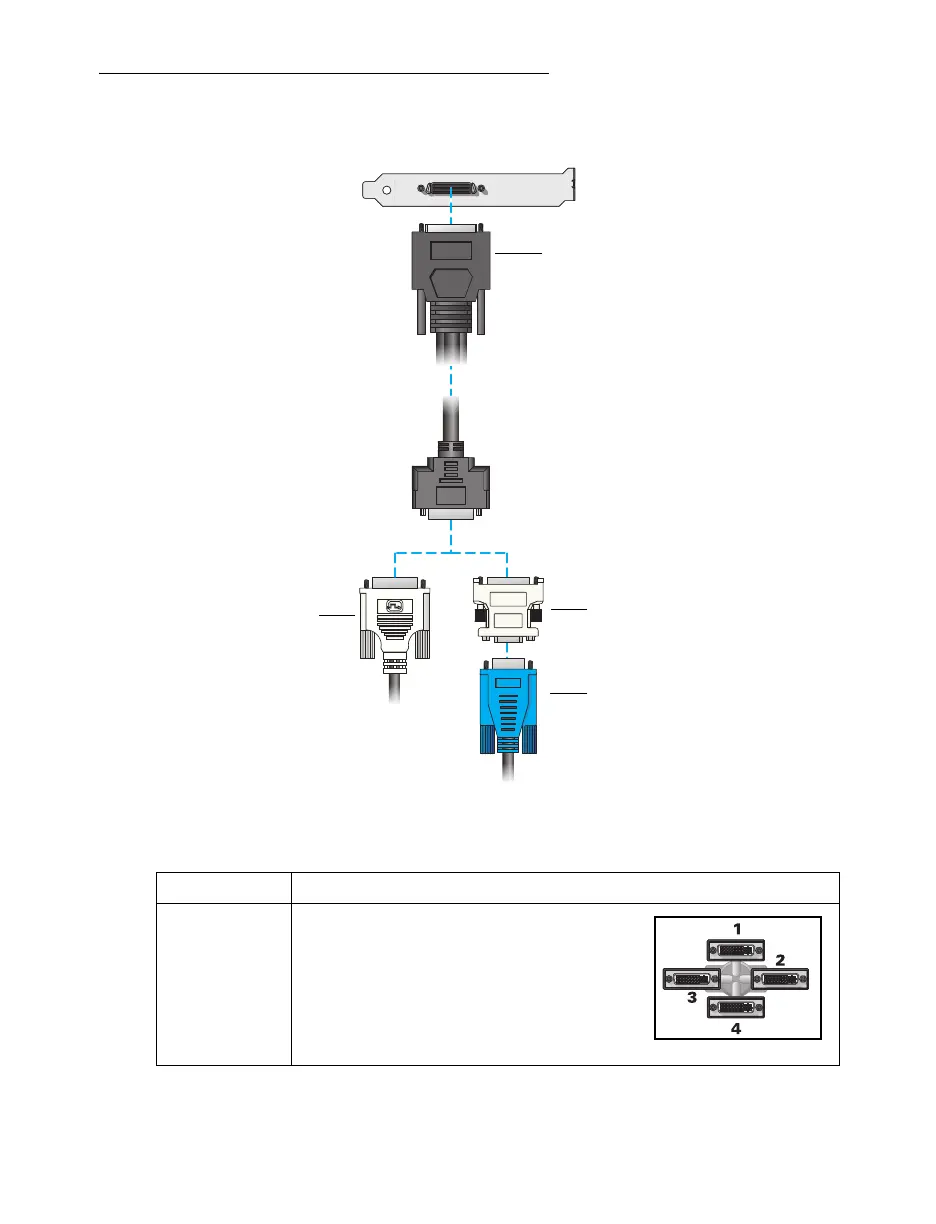

Connection overview
Description of cables
Cable Description
Output M9140 cards use KX20 to quad-DVI cables
to connect up to four (4) monitors per card.
Monitors are numbered consecutively
based on which connector each is attached
to, starting with connector labeled 1.
Output cable
(KX20 to Quad-DVI)
Monitor
connector
(HD-15)
DVI to HD-15
adapter
Monitor
connector
(DVI)
KX20 to quad-DVI cable
