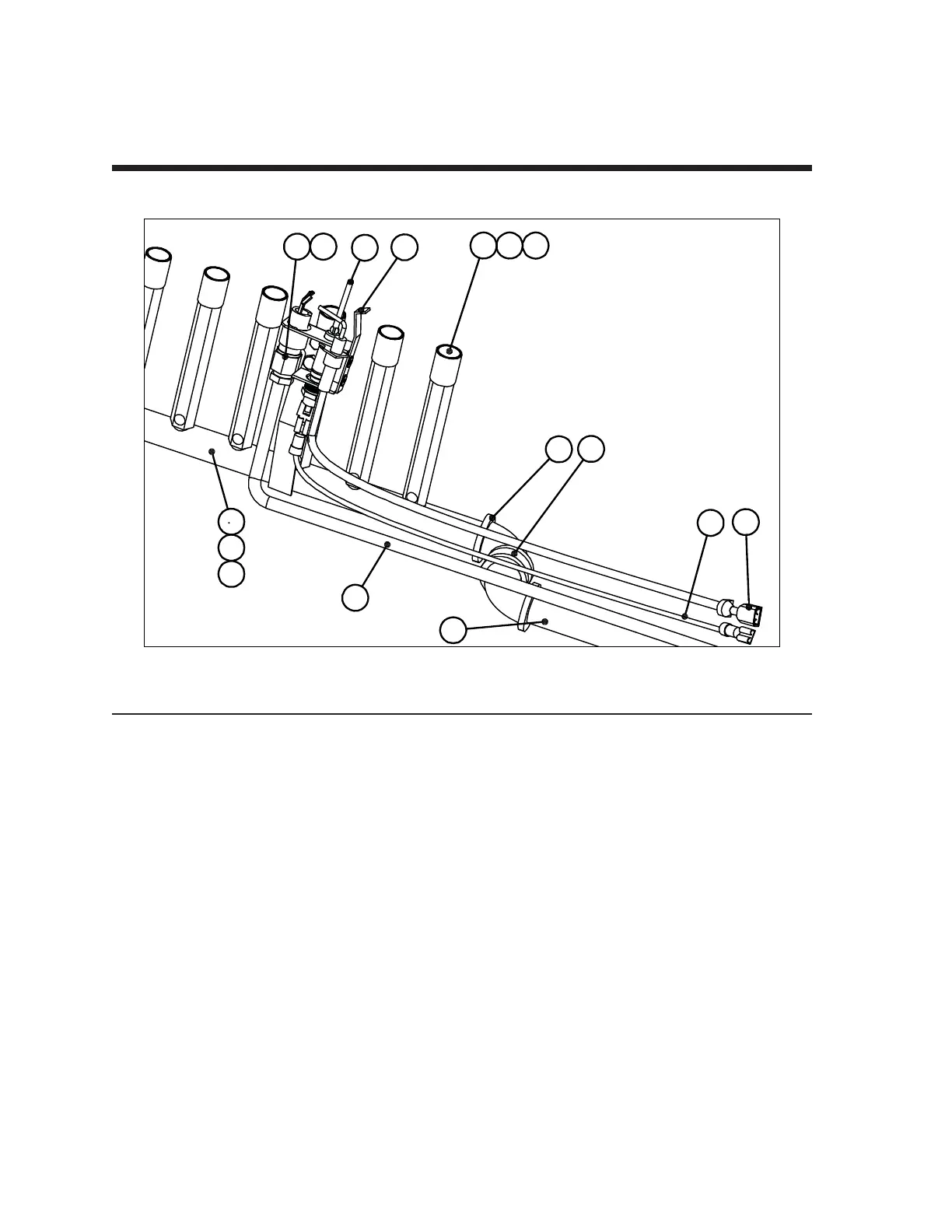

3031-005h Comet Executive Gas
PL-12
Burner Assembly
ID Part Number Qty Description
1* 2203-226 42 BURNER TIP ATMOSPHERIC or
2* 2203-226 50 BURNER TIP ATMOSPHERIC or
3* 2203-226 62 BURNER TIP ATMOSPHERIC
4 2203-010 1 BURNER PIPE ASSY 1/2” x 61-1/2” COMET 66 or
5 2203-009 1 BURNER PIPE ASSY 1/2” x 51-1/2” COMET 56 or
6 2203-038 1 BURNER PIPE ASSY 1/2” x 75-1/2” COMET 80
7 2201-105 1 PILOT ASSY W/IGNITION ELECTRODE
8 2201-110 1 ORIFICE .023 NATURAL GAS
9 2201-120 1 ORIFICE .012 LP GAS
10 2211-115 1 SENSING PROBE
11 5002-100 2 ELBOW 90 DEG 1/2”
12** 5001-164 1 NIPPLE 1/2” x 8”
13 E19-435 1 FASTON INSULATED 0.250” 16-14AWG
14 2214-015 1 WIRE PROBE LEAD 24” LONG
15 5001-151 1 NIPPLE 1/2” x 1-1/2”
16 2215-020 1 PILOT TUBING 36” LONG
* Specify Natural Gas or LP
** Nipple Lengths May Vary
8
10
97
123
11 15
14
13
16
12
4
5
6
