Comet Executive Gas Installation
2-5
8. After the unit is placed and secured, re-
move the plastic covers from the unit. Do
not remove the guide tapes or the brown
paper on the ironing cylinder.
9. Remove the following items (Figure 2-4)
from the box removed from the endframe:
• One 1 lb. (450 g) can of powdered wax
(A)--not included with Chrome ironing
cylinder option
• One Instruction Manual (B)
• One 8” exhaust collar and one blower
outlet adaptor (C)
• One manual gas shut-o valve (D)
Exhaust Blower Installation
The exhaust canopy includes a blower to expel
excess heated air and moisture. This system
contributes to the safety and comfort of operating
personnel, proper operation of the unit, and
reduction of maintenance time.
All labor and materials required for venting
the unit are a local responsibility. Comply with
local codes and regulations for proper installation.
Ductwork
The 8” (203 mm) diameter ductwork for the
exhaust blower and all associated hardware for
the exhaust system must be locally supplied.
Follow local codes and good engineering
practice to design the exhaust system. Every
eort should be made to keep the ductwork as
short and straight as possible.
Check the canopy nameplate for the maximum
length of ductwork. For longer runs, a booster
blower may be required. Do not use elbows
greater than a 45° angle in the exhaust ducting.
If the blower vent ducting is to be connected
to a larger duct for outside venting, consult a
ventilation expert to ensure proper installation
and operation.

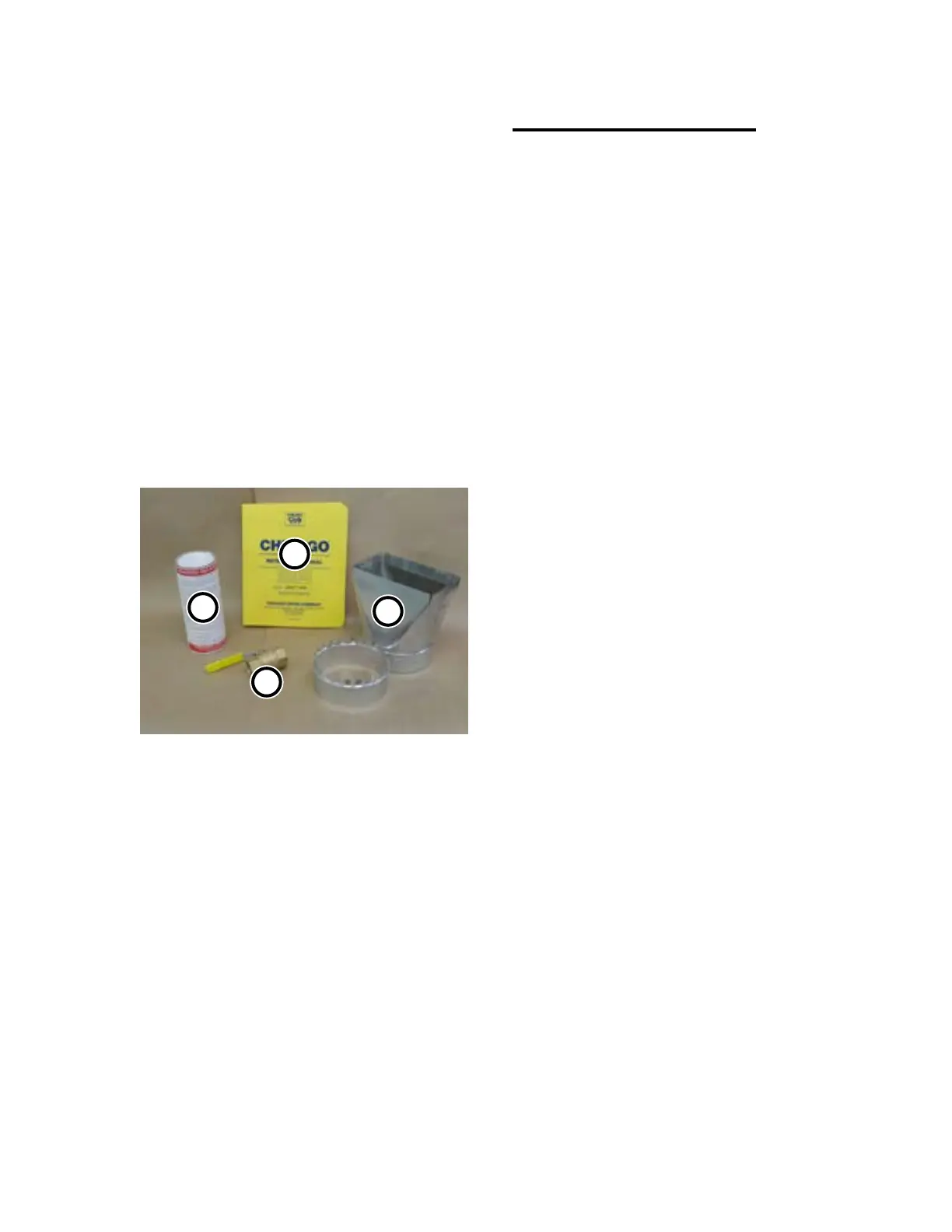

Figure 2-4: Several items are supplied with each
unit.
D
B
C
A
