3.1.2 Parallel unit

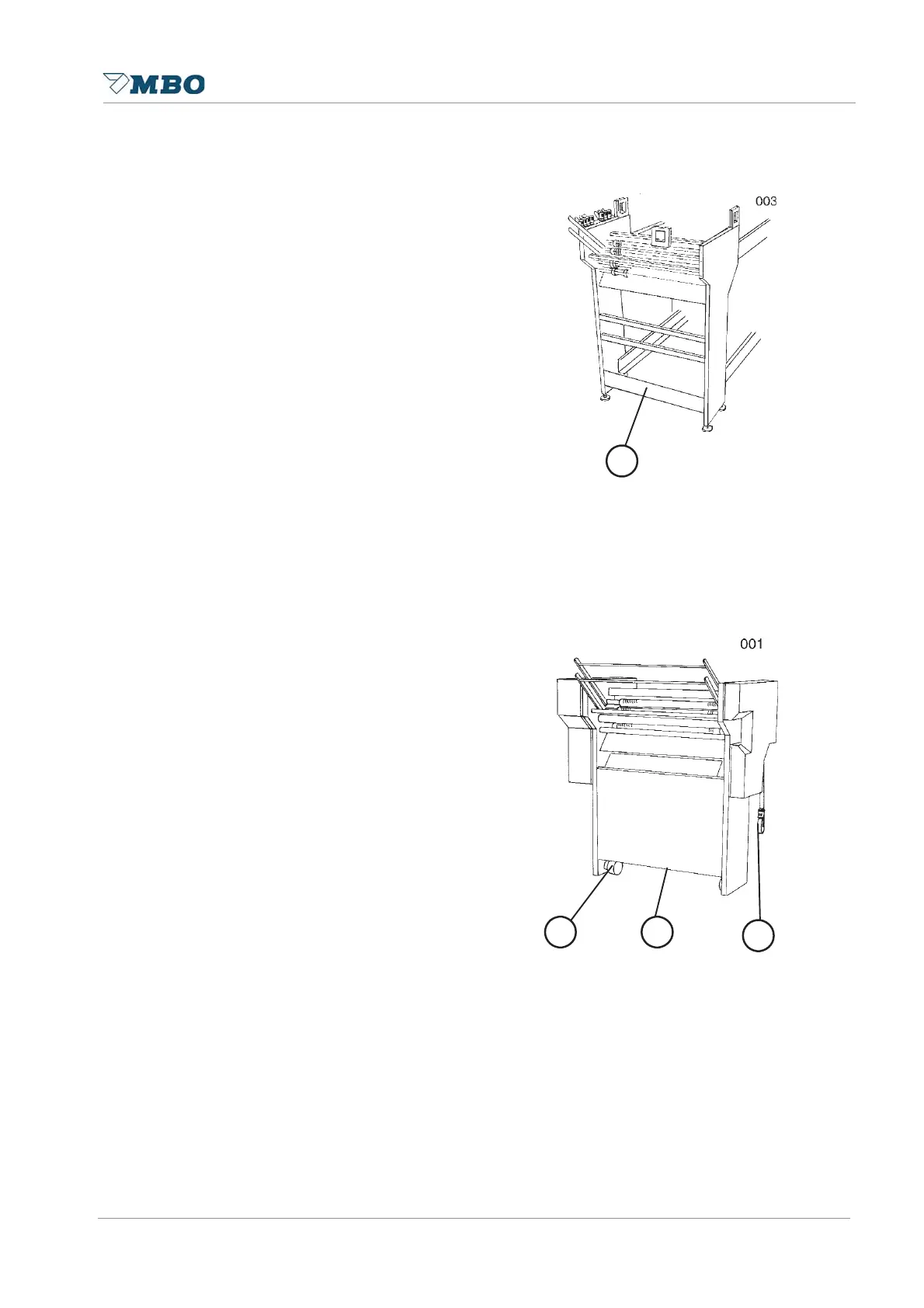

The folding unit I, completely mounted with
pile feeder, is delivered in one crate. Carry the
pallet with a fork lift as close as possible to
its final position. Unscrew the machine off the
pallet and set the fork lift to the tiebars 1.
Remove the pallet and set the folding unit to
its final position.
3.1.3 8 and 16pg unit
Make sure that machine rollers 3 and guide
roller 5 will not be damaged when taking the
unit of the pallet.
Unscrew the folding unit II off the pallet and
set the fork lift to the tiebar 4.
Two additional persons are also required to
hold the unit. Remove the pallet and carry the
unit to its final position.
