MBO B21 - 4.2 Buckle plates

Alterations reserved
Version 05/2008
Operating Manual B21-C - en
Page 71

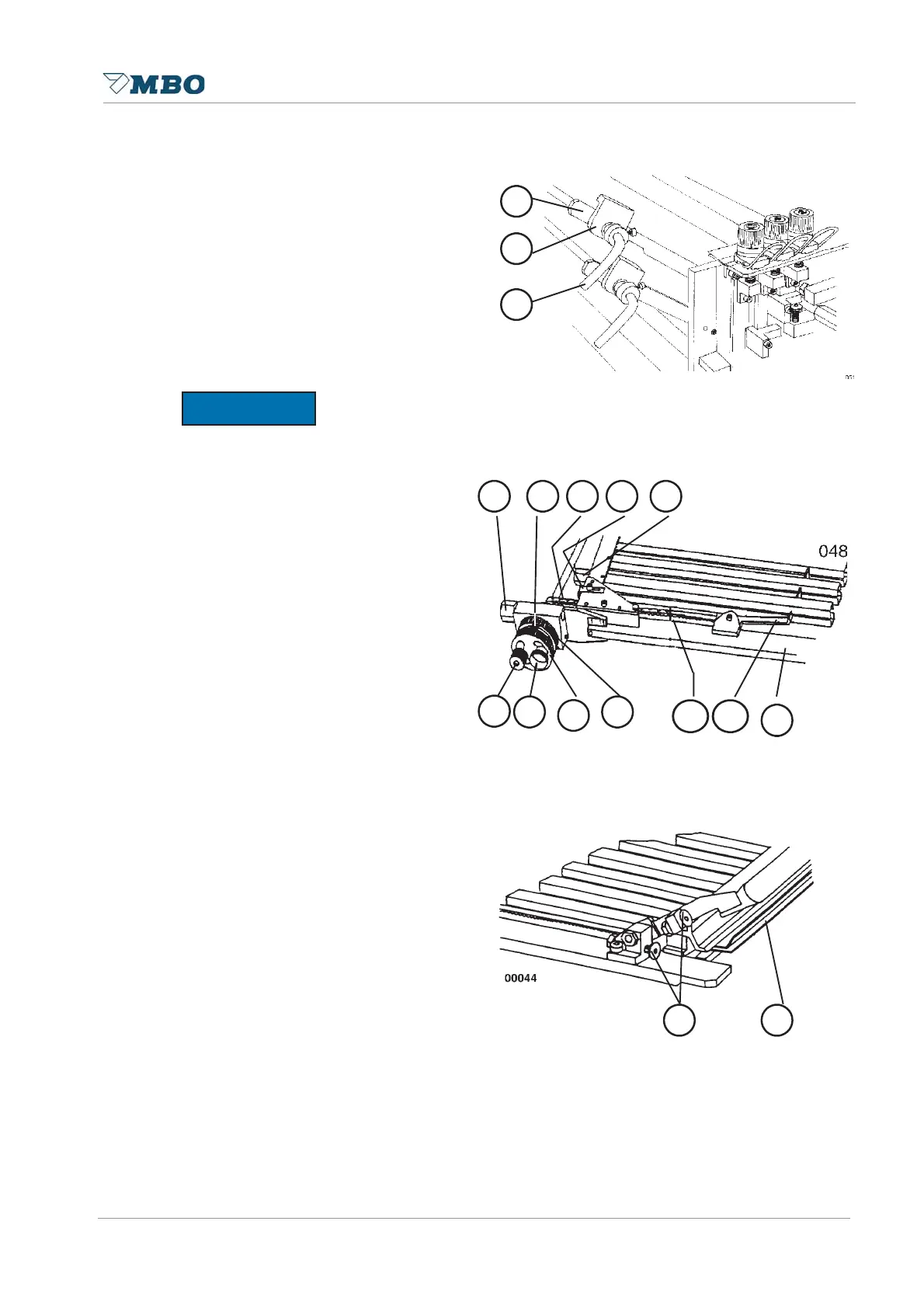

4.2 Buckle plates
Insert the buckle plates 15 into the
lateral supports 1.
The buckle plate and the sheet deflector
is set with their positioning pins into their
lowest (basic) position with the rounded
bolt 17.
Lock them up on both sides through
clamping lever 3 and clambs 2.
You should check that before locking the
plates are locked, they are pushed
forwards into the direction of the
foldrollers and are resting on the rounded
bolt!
After metal screw 9 has been loosened
you may carry out the sheet length
setting through handwheel 12.
The size can be read-off at toothed belt 6
and the red indicator 7.
When folding sheets which are not right-
angled the angle of the sheet stop 14
may be changed if you loosen the plastic
knurled screw 10 and twisting the frontal
adjustment ring 11.
The 0-position is shown by two markings
on the adjustment rings 5. When you
loosen the hexagon screw 4 you may
carry out fine adjustments without
loosening the metal knurled screw. You
may change the position of the lower
infeed plate 8 through the metal hexagon
screw 16. A marking 13 is located
laterally on the external buckle rails.
Remove the lower buckle infeed (off the
foldrollers) for processing heavy papers.
Move the lower buckle infeed (towards
the foldrollers) if you process sensitive
papers.
