MBO B21 - M 1.0 Installation instruction

Page94Alterations reserved Version 05/2008
Operating Manual B21-C - en
M 1.0 Installation instruction

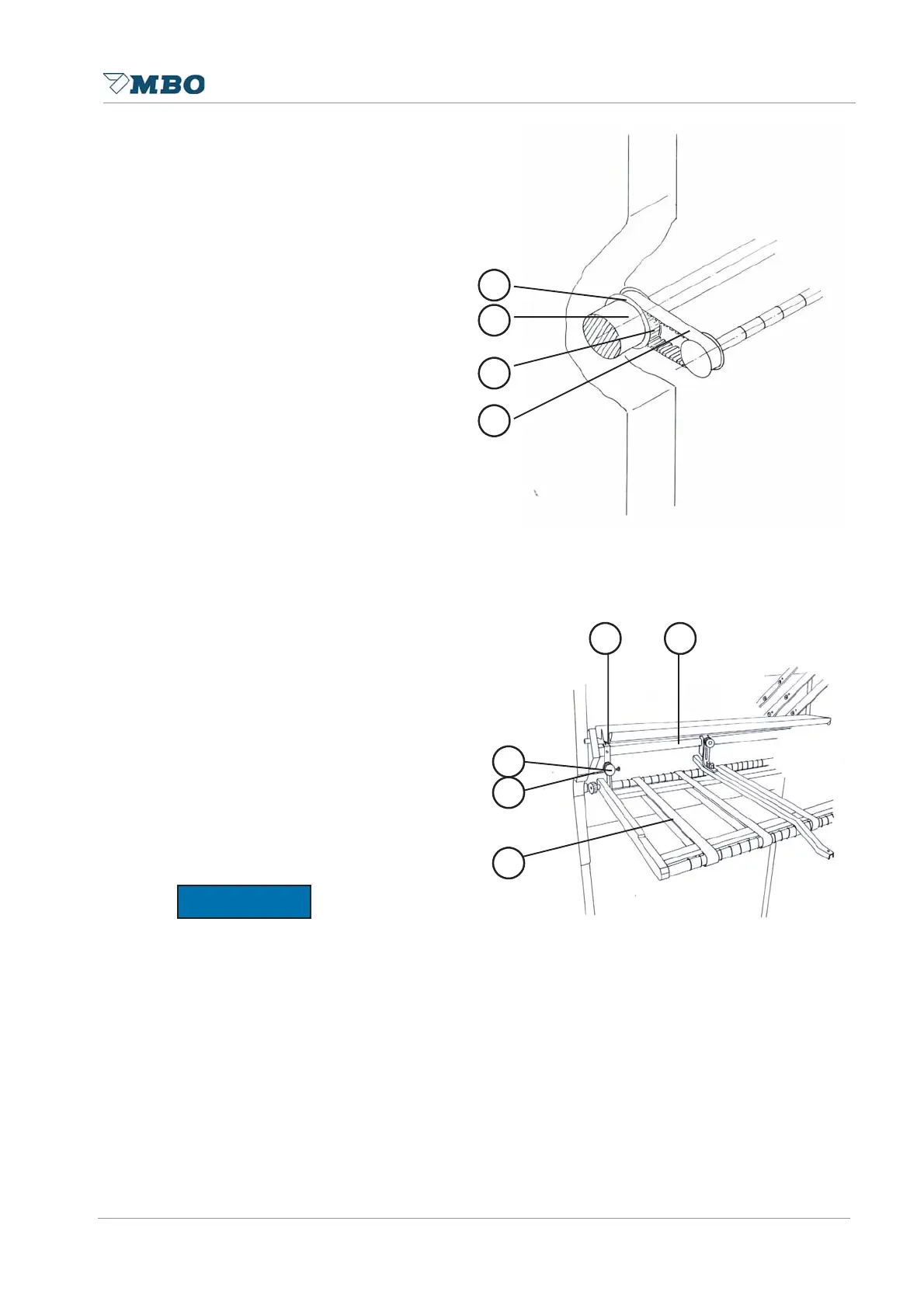

1.1 Conveyer table for unit “X”
Fit the crown gear 1 on the shaft 2,
secure with the locking screw 3 and
hook-on the tooth belt 4.
Hook-on the conveyer table 5 on the bar
6 and cramp it with the two knurled
screw 7.
Tooth belt will be tensioned with the
knurled screw 9.
Distance screw 8 of the conveyer table must be placed on the side wall.
The range of the thooth wheels must coincident. If not, adjust the distance screw.
127,&(
1
3
4
5
7
8
6
2
9
