5.5 Gully cut

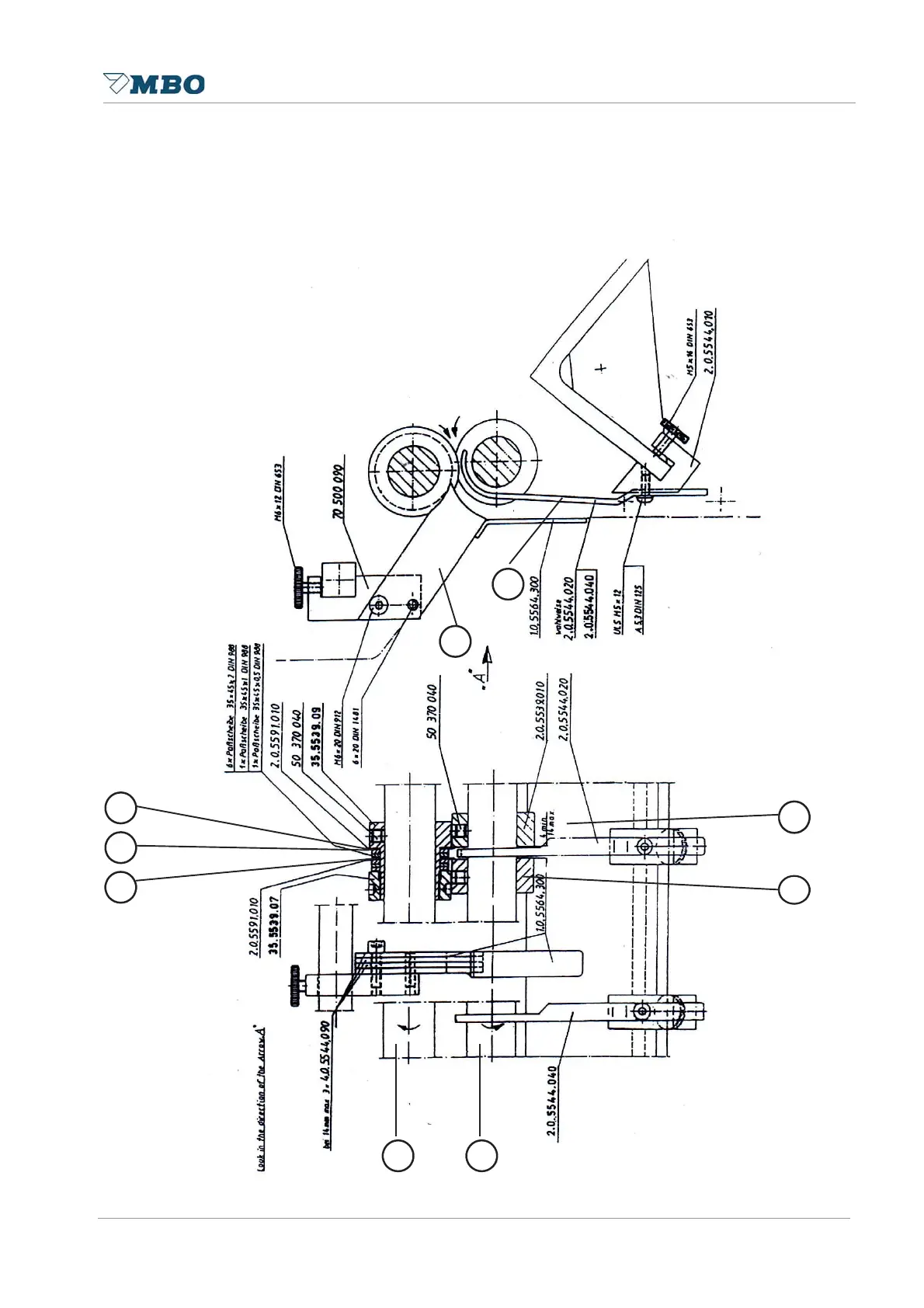

When carrying out this procedure you install the knife holder 2 onto the upper slitter shaft 7.
Insert two knives 1 with external cutting edge, place two counter knives 5 against them on the
lower slitter shaft 6. Min. 4 mm to max. 5mm can be cutted off. In order to eject the paper
shavings place strippers 3 and 4 between counter knives.
1
1 2
5
5
6
7
4
3
