9.2 Hook-on stream delivery SE500/3

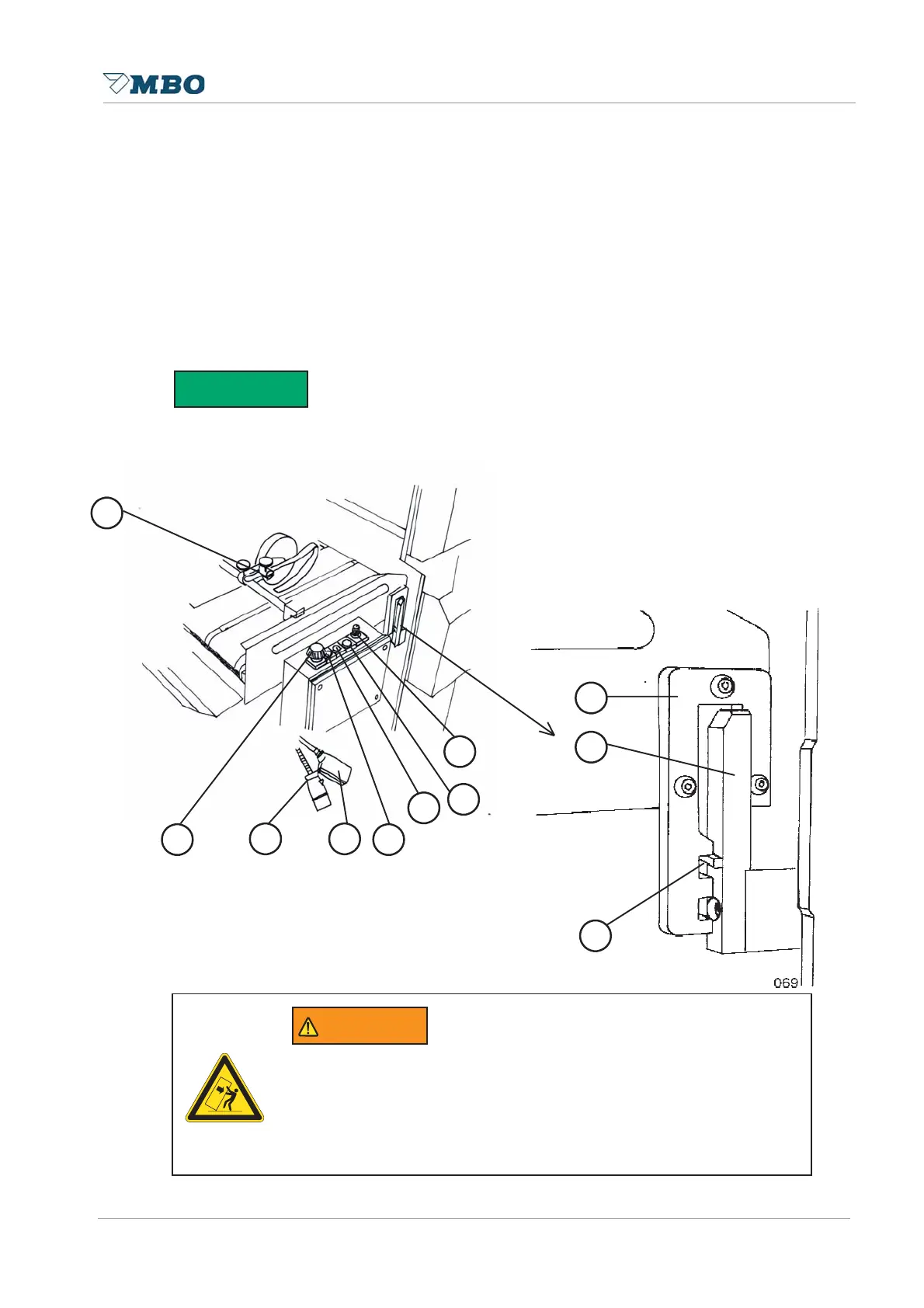

The deliveries SE500/3 can be suspended at unit I and II. They are suspended at the holder 1 and
snapped-on in three different height position3 with the Snap-On hoop 2. The transport rollers
should be set in accordance to the sheet size. The electric connection occurs through the
connection cable with power plug and control plug 5 and 6 at control cabinet of the folding unit.
The speed can be regulated through the button 7 located at the terminal box of the stream
delivery.
8 Emergency stop
9 Red button MACHINE STOP
10 Black button MACHINE START
11 White button SHEET INFEED
If the machine is operated without a stream delivery (during set-up of the machine), a dummy plug
must be plugged into the control socket ”machine control” of the previous folding unit.
6$)(7<),567
:$51,1*
Danger of dump and slipping of the delivery.
Negligence can cause heavy personal injuries or extensive damages.
Be sure that the hook-on stream delivery is correctly positioned in support
