Page90Alterations reserved Version 05/2008
Operating Manual B21-C - en

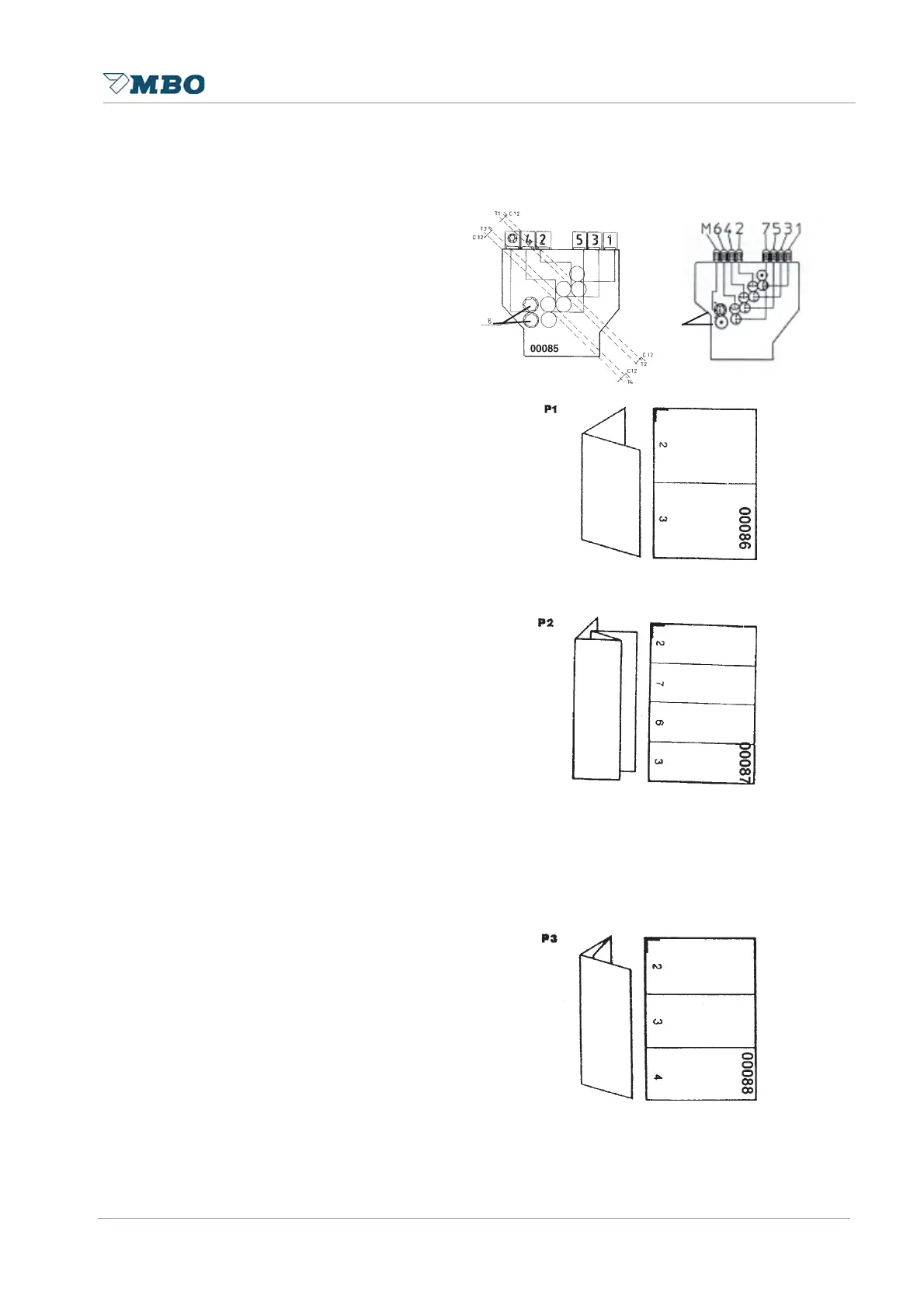

P1 1 x parallel unit, i.e. 4 pages
at 1, set for single paper thickness, and
from 2 through 8, set to double paper
thickness. Set sheet stop C12 at 1st
buckle plate at 1/2 of sheet length. The
buckle plates 2nd through 4th are
replaced by sheet deflectors.
P2 2 x parallel fold, i.e. 8 pages
at 1 set for single, and at 2 set for double
paper thickness, and at 3 through 8 set
to quadruple paper thickness. Set sheet
stop C12 to 1/2 of sheet length at 1st
buckle plate and 1/4 of sheet length at
2nd buckle plate. Buckle plates 3 and 4
are replaced by sheet deflectors.
P3 2 x parallel unit (letter fold), i.e. 6 pages
I. with one top (T1) and one bottom (T2)
buckle plate, set at 1 and 2 for single
and at 3 through 8 for triple thickness of
paper. Set the sheet stop C12 at 1st
buckle plate to 2/3 of sheet length, and
2nd to 1/3 of sheet length. Buckle plates
3 and 4 are replaced by sheet deflectors.
II. with two top buckle plates (T1 and
T3), set at 1 through 3 to single and at 4
through 8 to triple thickness of paper. Set
the sheet stop C12 at 1st and 3rd buckle
plate to 1/3 of sheet length. Buckle
plates 2 and 4 are replaced by sheet
deflectors.
D10.0 Instructions to the use
D10.1 Setting instructions for the most commonly folds
10.1.1 Parallelfold
1-5 = 1st - 5th set of foldrollers
8 = set of slitter shafts
8
8
