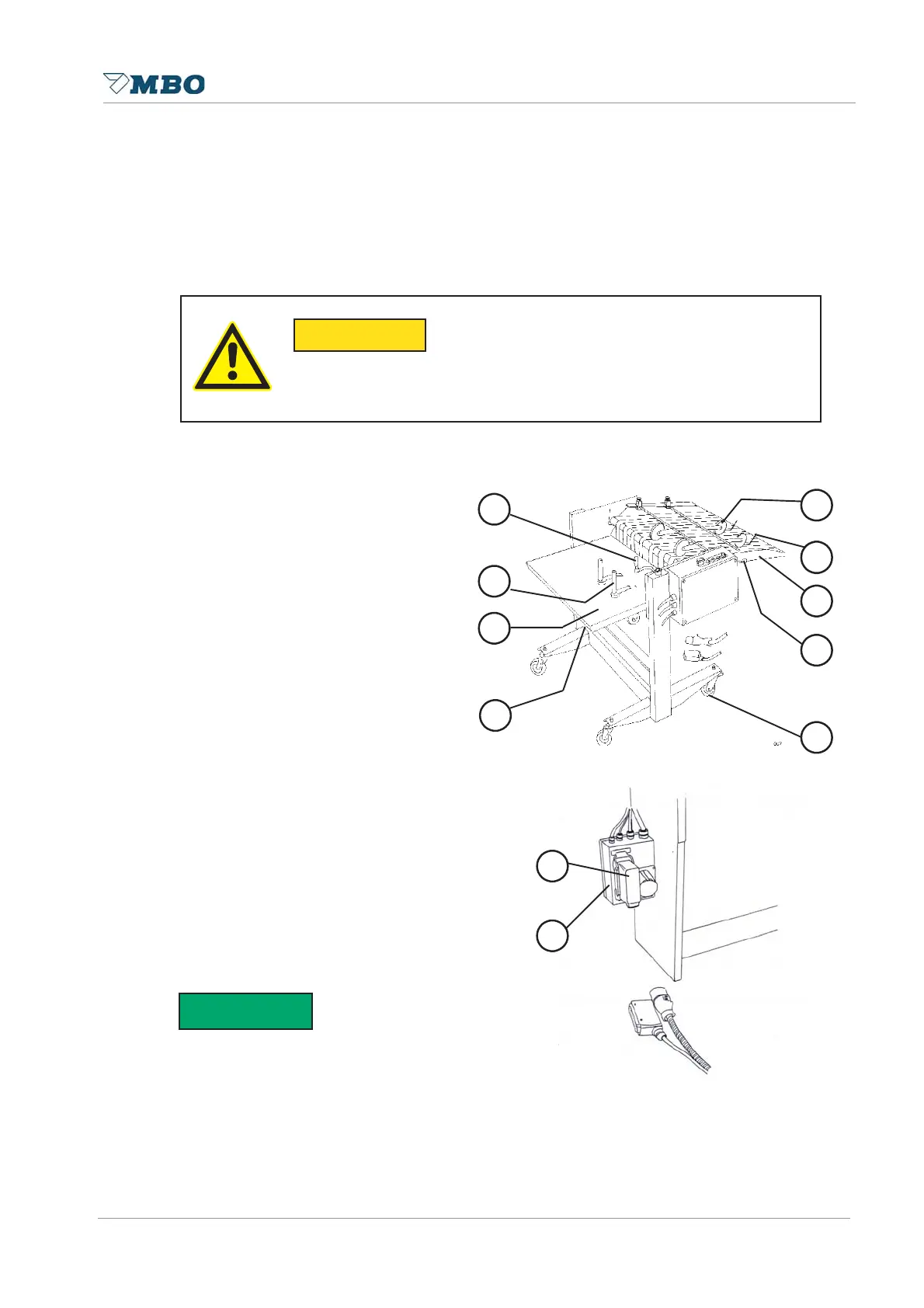

B 9.0 Stream delivery
9.1 Mobile stream delivery A56
The mobile stream delivery may be placed at each exit (outlet) of a folding machine. Move the
stream delivery into the required position and secure the caster wheels with foot brakes 10.
Use the hand crank 11 for height adjustments. A slight angle of the infeed table 12 is advisable
and can be acheived using the lever 13.
6$)(7<),567
Since the tapes of the infeed table are
fixed only the transport rollers 14 should
be set in accordance to the sheet size.
In order to guide the sheets underneath
the transport rollers, fit rods 15 onto the
frontal transport rollers. In case of
multiple production affix the rear
transport rollers onto the front rod.
The folded sheets fall onto the collector
sheet 16 which may be adjusted by a
setting spindle 17 located beneath the
collector sheet. Two moveable magnetic
posts serve as sheet stop.
The electric power is supplied as
descriped under 7.2 page 76. The speed
may be regulated through the
potentiometer located at the terminal box
of the stream delivery.
If the machine is operated without a stream delivery, e.g. during set-up of the machine, a dummy
plug 2 must be plugged into the control socket 1 “Machine Control” of the previous folding unit.
The infeed table must be held with your other hand when you activate the
lever!
