Alterations reserved
Version 05/2008
Operating Manual B21-C - en
Page 73
Funktion ”Deflector”:
Turn the sheet stop 1 with the
adjustment ring 3 to lower position until
the angle 4 stops.
For perforating,cutting, etc., pull the
deflector at one side.
See 4.3 too.

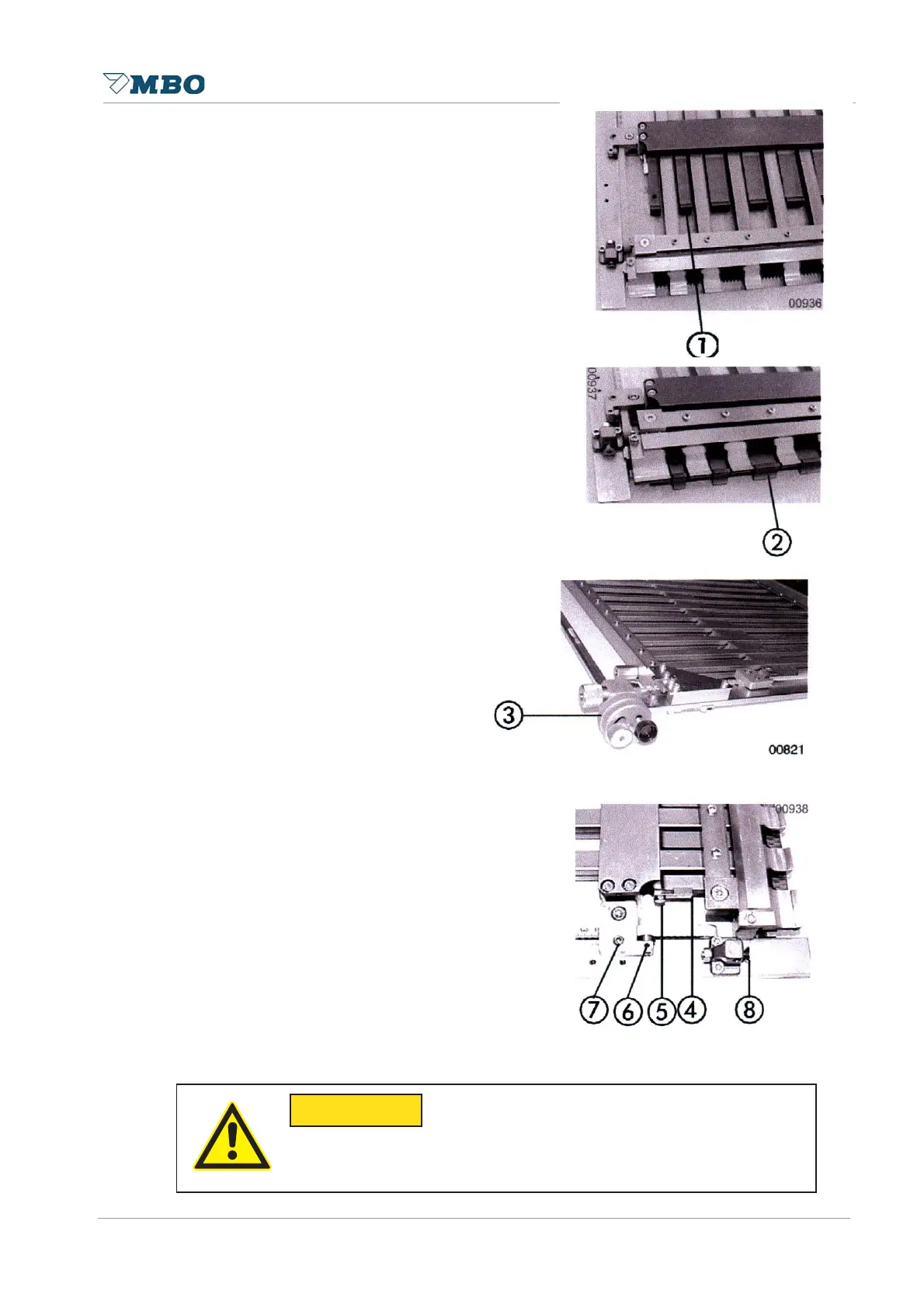

4.4 Combi buckle plates FTK (Option)
In this kind of buckle plate, the sheet
stop can be used as a defector.
Buckle plate/Deflector must not to be
removed.
Sheet stop 1 is a
deflector 2 too.
Funktion „Buckle plate“: See 4.2
-
2 may not have contact with the fold rollers!
- Do not make any alteration of the position from the screws 5,6,7 and 8.
&$87,21
