MBO B21 - B 1.0 Main control panel

Page58Alterations reserved Version 05/2008
Operating Manual B21-C - en

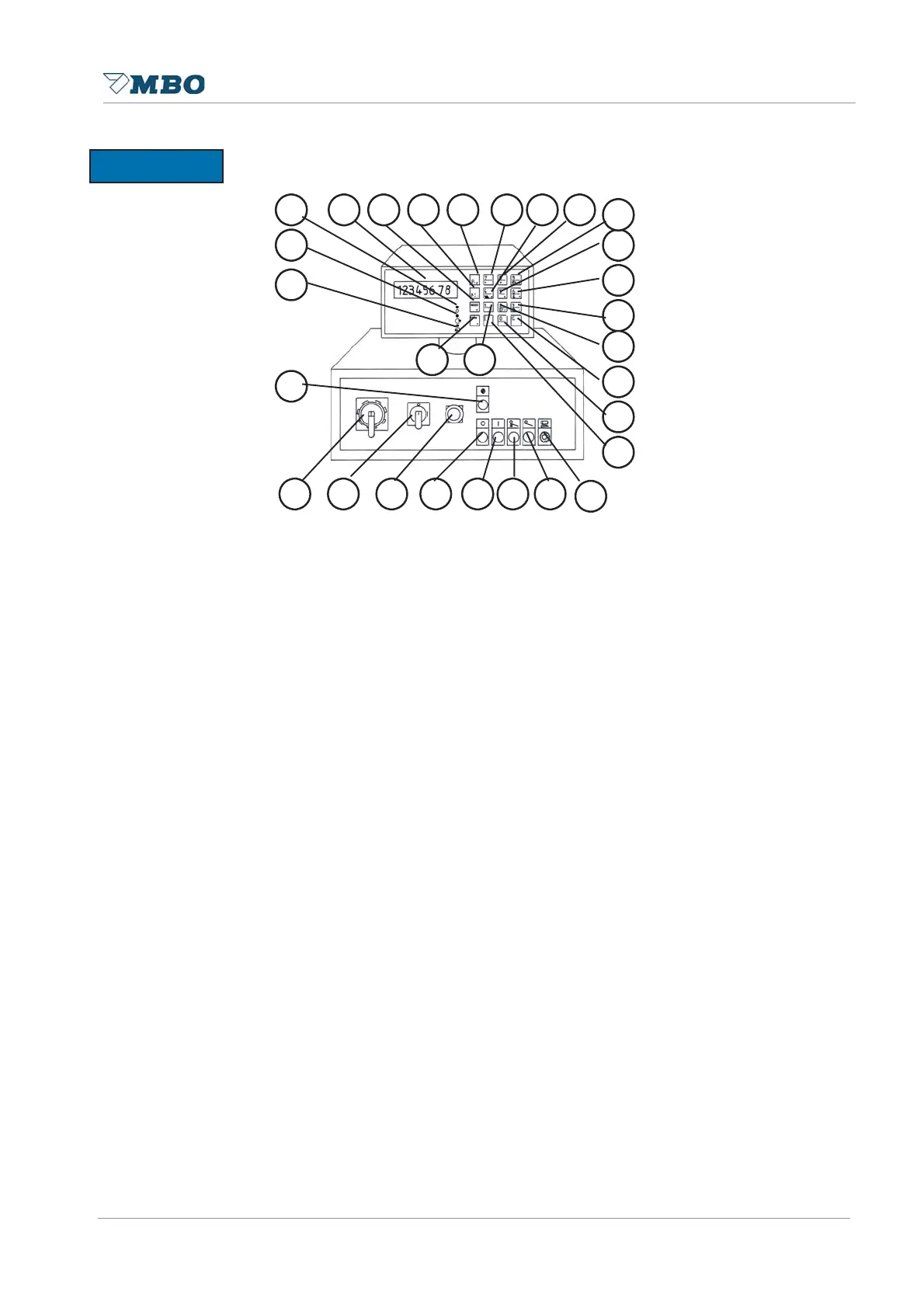

B 1.0 Main control panel
For more information see separated operating manual “MS - Control”.
1.1 MAIN SWITCH
1.2 Turn ON/OFF switch for compressor
1.3 EMERGENCY-STOP button
1.4 Red button for machine STOP
1.5 Black button for machine START
1.6 White button for SHEET INFEED
1.7 White button for SINGLE SHEET INFEED
1.8 Green indicator light for MACHINE RELEASE
1.9 8- digit display
1.10 Button suction length
1.11 Button suction gap
1.12 Button with double function 7 / +
1.13 Button with multliple function 4/ speed up delievery/ Kicker/ marking device
1.14 Button with double function 8 / -
1.15 Button with double function 9 / speed indication
1.16 Button with double function 5 / interruption suction wheel
1.17 Button with double function 6 / current productions speed / hrs
1.18 Button with double function 3 / total counter at infeed
1.19 Button with double function 2 / total counter at exit
1.20 Button Clear (delete)
1.21 Button 0
1.22 Button 1
1.23 Button Enter (confirm)
1.24 Button Batch preselection
1.25 Button Code
1.26 Diagnosis LED photocell at exit B 43 (Option)
1.27 Diagnosis LED photocell at suction wheel B 2
1.28 Diagnosis LED slot initiator B 1
1.29 Potentiometer for electronical speed regulation
1
2
1 2 3 4 5 6 7
1
8
1
9
2
0
2
1
2
3
1
7
1
6
1
5
1
4
1
3
2
7
2
4
2
6
2
9
1
0
9
8
2
8
1
1
2
2
2
5
