Page72Alterations reserved Version 05/2008
Operating Manual B21-C - en

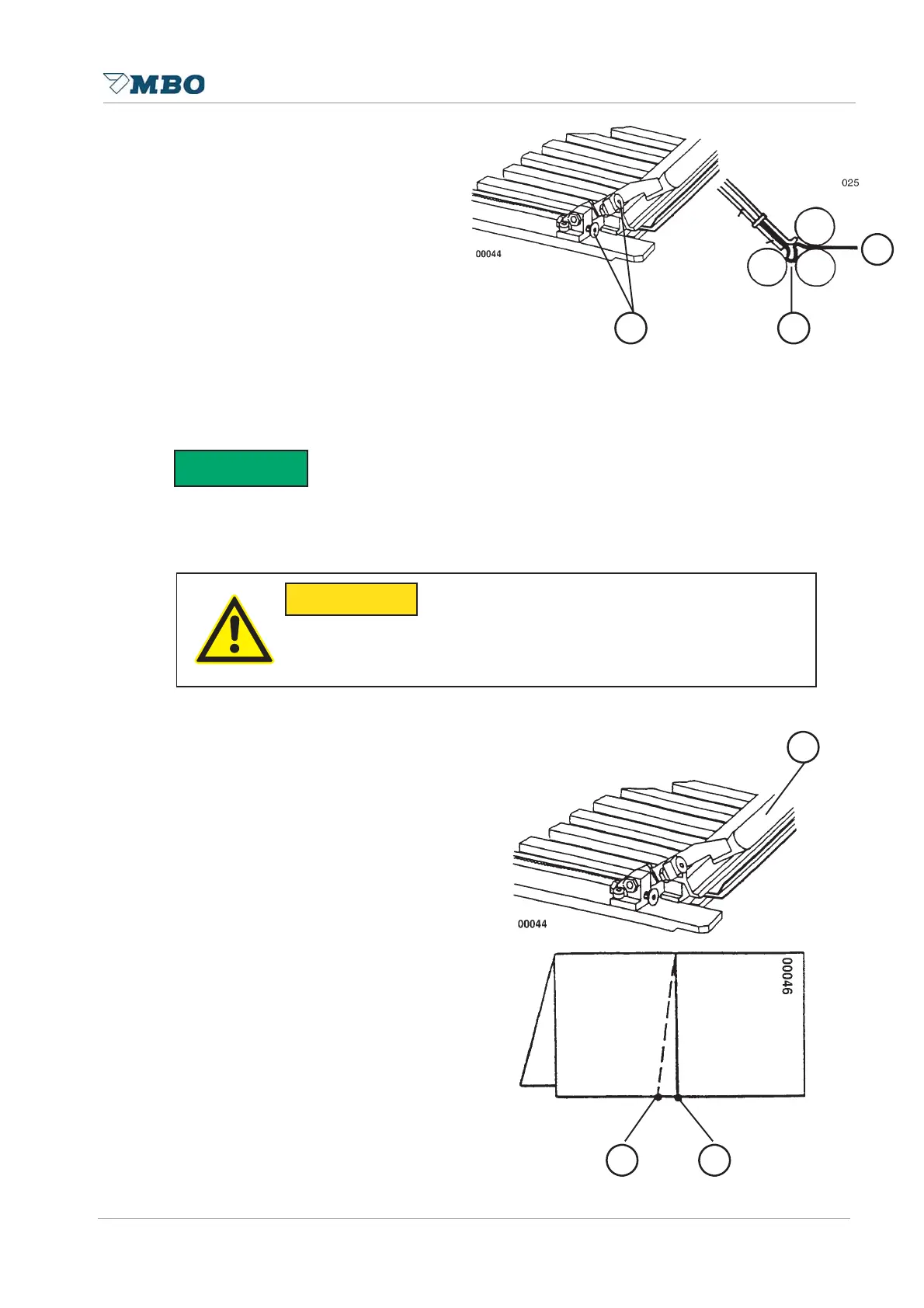

When you change the setting screw 1
you may achieve a larger or smaller
buckle space 2 between the lower buckle
lip and foldroller:
small folding space for porous papers = turn screw to inner direction
large folding space for heavy papers = turn screw to outer direction or take
buckle plate back
This setting should be made only in exceptional cases! It is absolutely imperative to reset to basic
setting. If necessary, contact manufacturer or supplier for basic measurements.
4.3 Deflectors
The buckle plates which are not used for
the individual type of fold are replaced by
deflectors 3.
In this case pull out the buckle plates
and dislocate the installed deflectors.
Heavy (multiple) folded sheets may
require an increase of the deflector area,
for which purpose you should slightly
pullout the buckle plates.
If the perforating or scoring line 4 are not
square to the folding line 5 pull out the
deflector or buckle plate at one side to
correct perforating position.
6$)(7<),567
If the buckle plate has been set too deep the plate will damage
the foldrollers.
&$87,21
1
3
2
4 5
3
