10.1.2 Crossfold

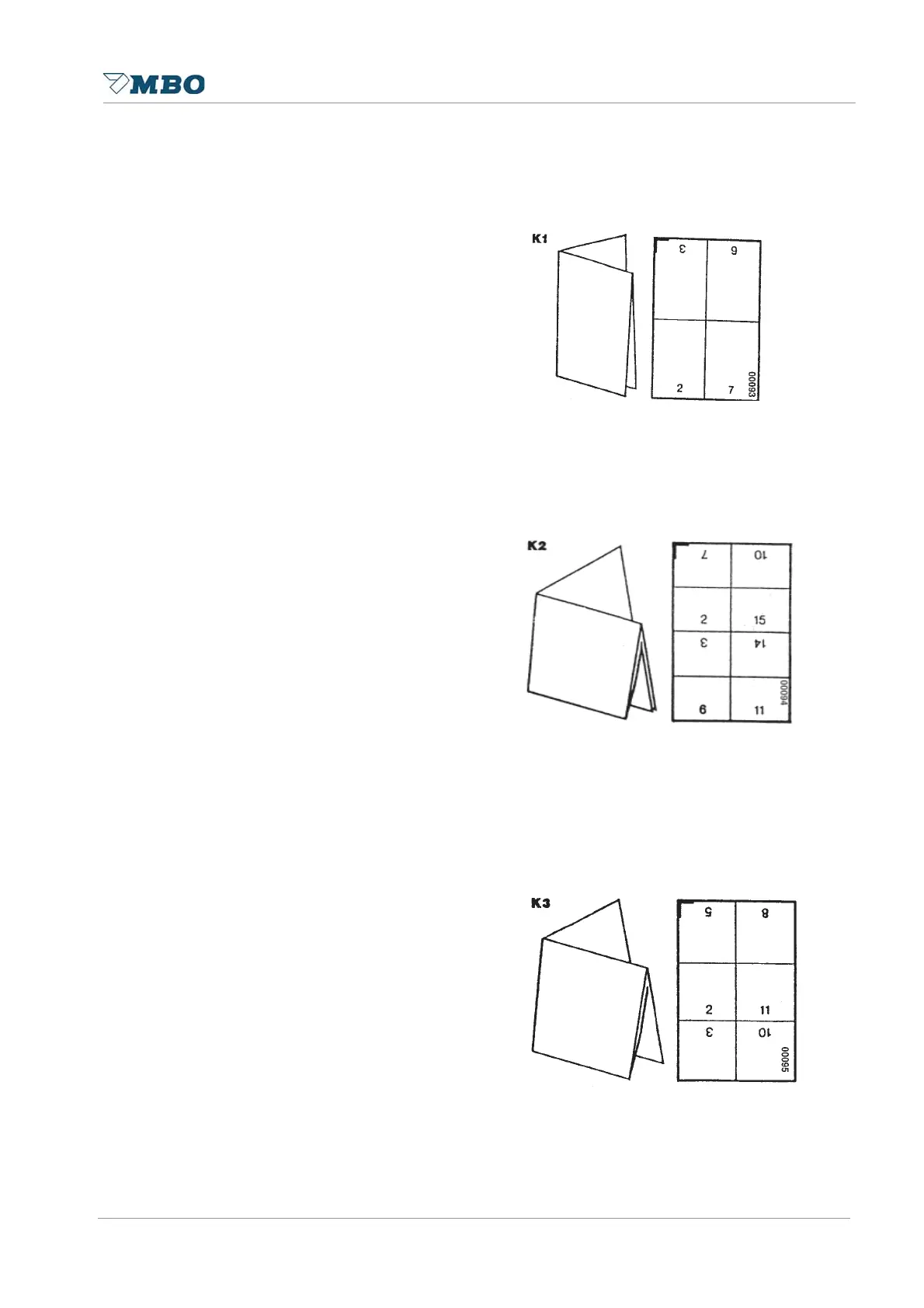

K1 1 x parallel unit and 1 x crossfold unit (double folding), i.e. 8 pages
See item P1 for setting of parallel
section.
Setting of crossfold section:
set the foldroller 1 to doublefold, and the
remaining foldrollers and slitter shaft to
fourfold thickness of paper. Set the sheet
stop of buckle plate at crossfold unit to
1/2 of sheet width.
K2 2 x parallel unit and 1 x crossfold unit, i.e. 16 pages
See item P2 for setting of parallel unit.
Setting of crossfold unit:
set the foldroller 1 to fourfold, and the
remaining foldrollers and slitter shaft to
eightfold thickness of paper. Set the
sheet stop of buckle plate at crossfold
unit to 1/2 of sheet width.
K3 2 x parallel unit (letter fold) and 1 x crossfold unit, i.e. 12 pages
see item P3/1 for setting of parallel
section.
setting of crossfold section:
set the foldroller 1 to triplefold, and the
remaining foldrollers and slitter shaft to
sixfold thickness of paper. Set the sheet
stop of buckle plate at crossfold unit to
1/2 of sheet width.
