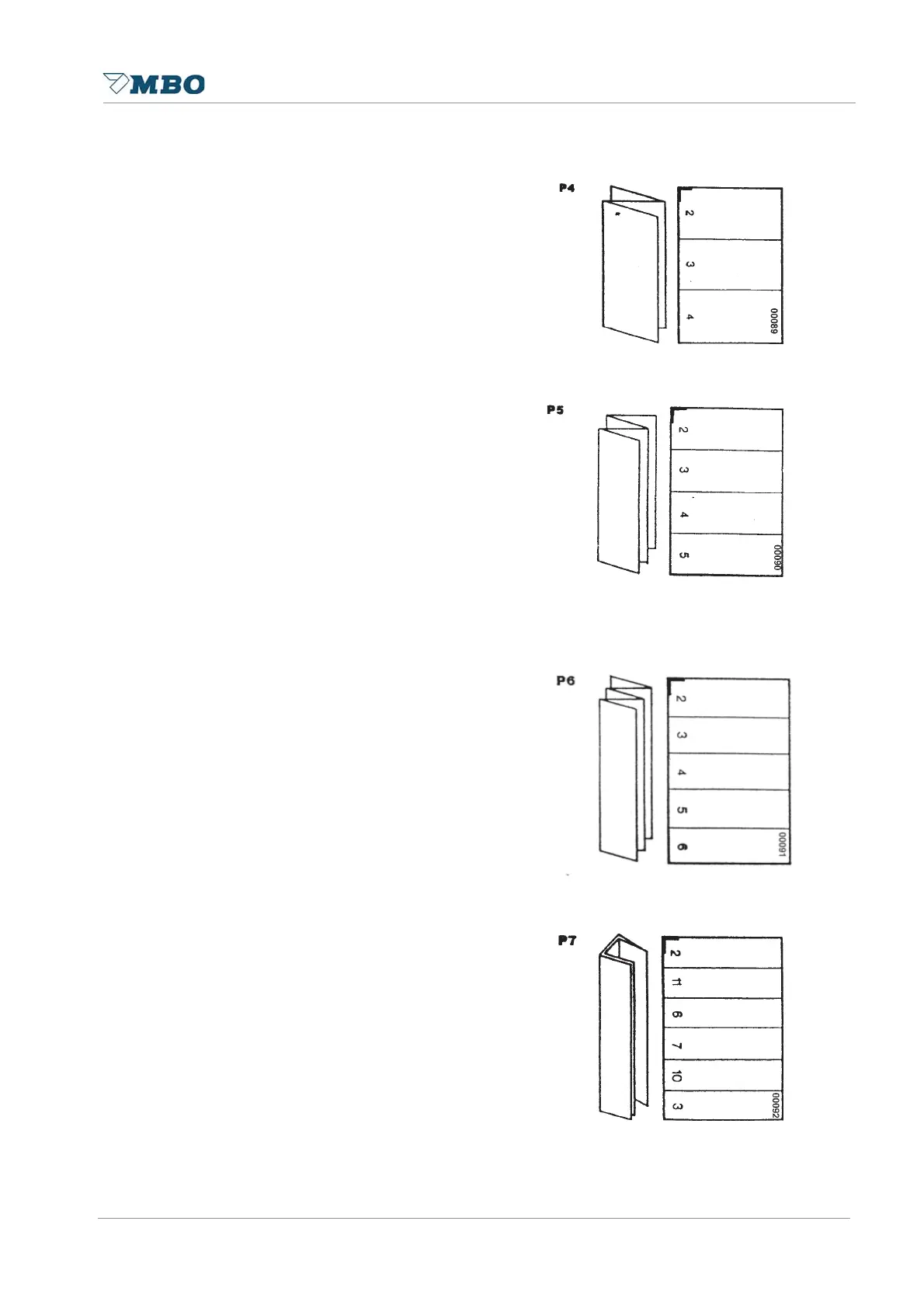

P4 2 x parallel unit (accordian fold), i.e. 6 pages
set at 1 and 2 to single thickness of
paper, and at 3 through 8 to triple
thickness of paper. Set sheet stop C12
at buckle plate T1 and T2 to 1/3 of sheet
length. Buckle plates 3 and 4 are
replaced by sheet deflectors.
P5 3 x parallel unit (accordian fold), i.e. 8 pages
set at 1 through 3 for single thickness
and at 4 through 8 to quarduple
thickness of paper. Set sheet stop C12
to 1/4 of sheet length of buckle plates
1st to 3rd. The 4th buckle plate is
replaced by sheet deflector.
P6 4 x parallel unit (accordian fold), i.e. 10 pages
set at 1 through 4 to single paper
thickness and at 5 through 8 to fivefold
thickness of paper. Set the sheet stop
C12 to 1/5 of sheet length at buckle plate
1st through 4th.
P7 3 x parallel unit (letter fold), i.e. 12 pages
set at 1 to single paper thickness, at 2
through 4 to double thickness of paper
and at 5 through 8 to sixfold thickness of
paper. Sheet stop C 12 should be set 1/2
of sheet length at first buckle plate, and
to 1/6 of sheet length at 2nd and 4th
buckle plate. The 3rd buckle plate is
replaced by a sheet deflector.
