If you obtain angled cut or badly guided paper trim-off you may also install the knife folder onto the
lower instead of the upper slitter shaft. Moreso, you may also install the knife with its cut edge
into the direction of the folding product. However, it mostly depends on the paper thickness or
running direction.
Experiences shows that the following alternative of installation reveals in the best result:
knife top, counter knife bottom, cut edge of top knife into direction of paper cut-off. Paper cut-off is
guided by rubber ring.

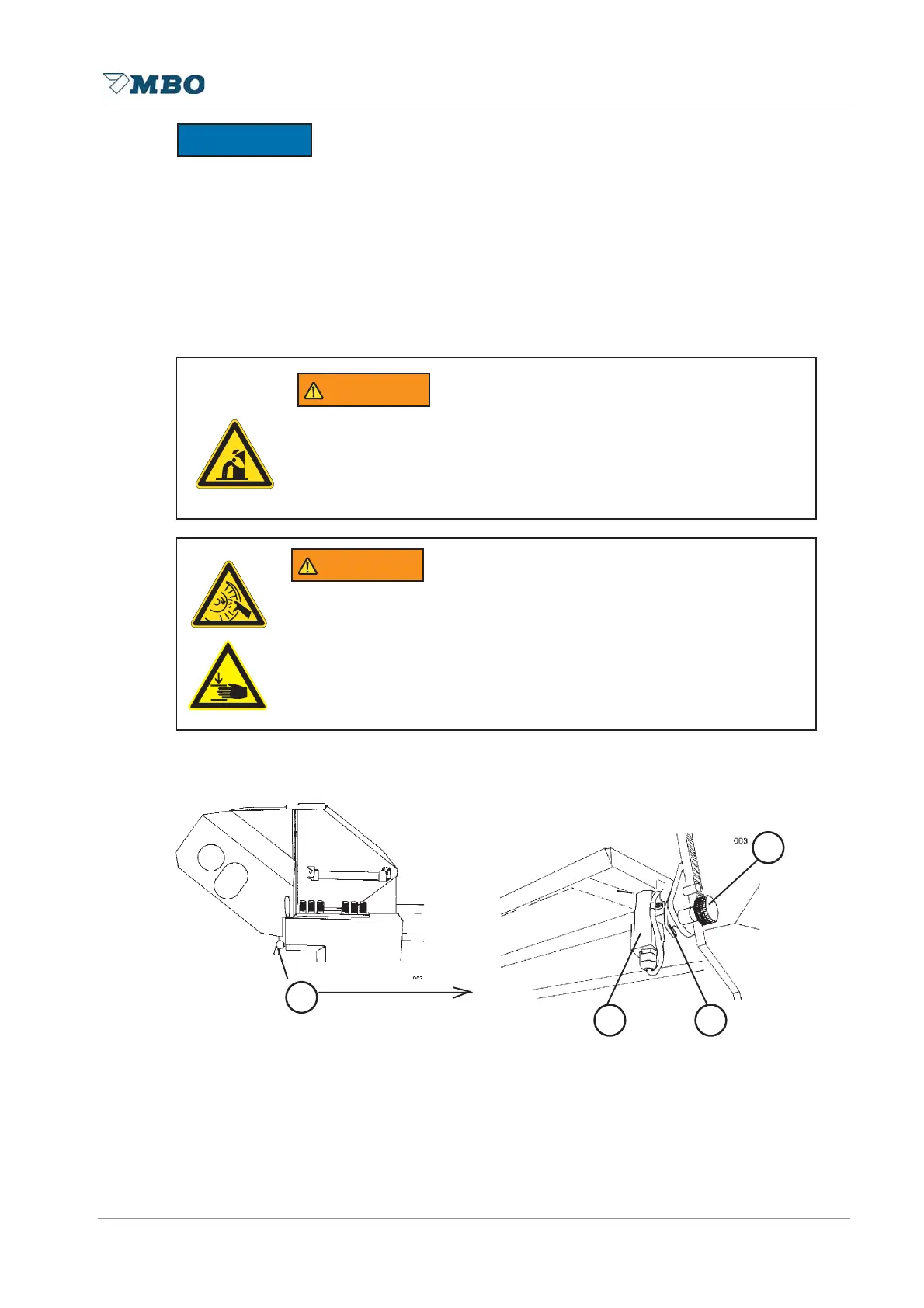

5.7 Slitter shaft guard
127,&(
The flap 5 is a safety guard for the slitter shafts and it is electrically locked.
For insertion of other aggregates, regulate flat 5 , release knurled nut 7 , pull the grip 8 up and
screw-in the knurled nut 7.
Danger before falling down of the opened protection hood.
Negligence can cause heavy injuries through bruise of body part.
Be sure that in work with opened noise hoods this is completely opened to
the attack.
:$51,1*
Danger of running machine parts.
Negligence can cause heavy personal injuries or extensive damages.
Report each audible/visible security-related change of the machine to the
responsible for that in your business.
:$51,1*
5
6
7
8
