Page54Alterations reserved Version 05/2008
Operating Manual B21-C - en

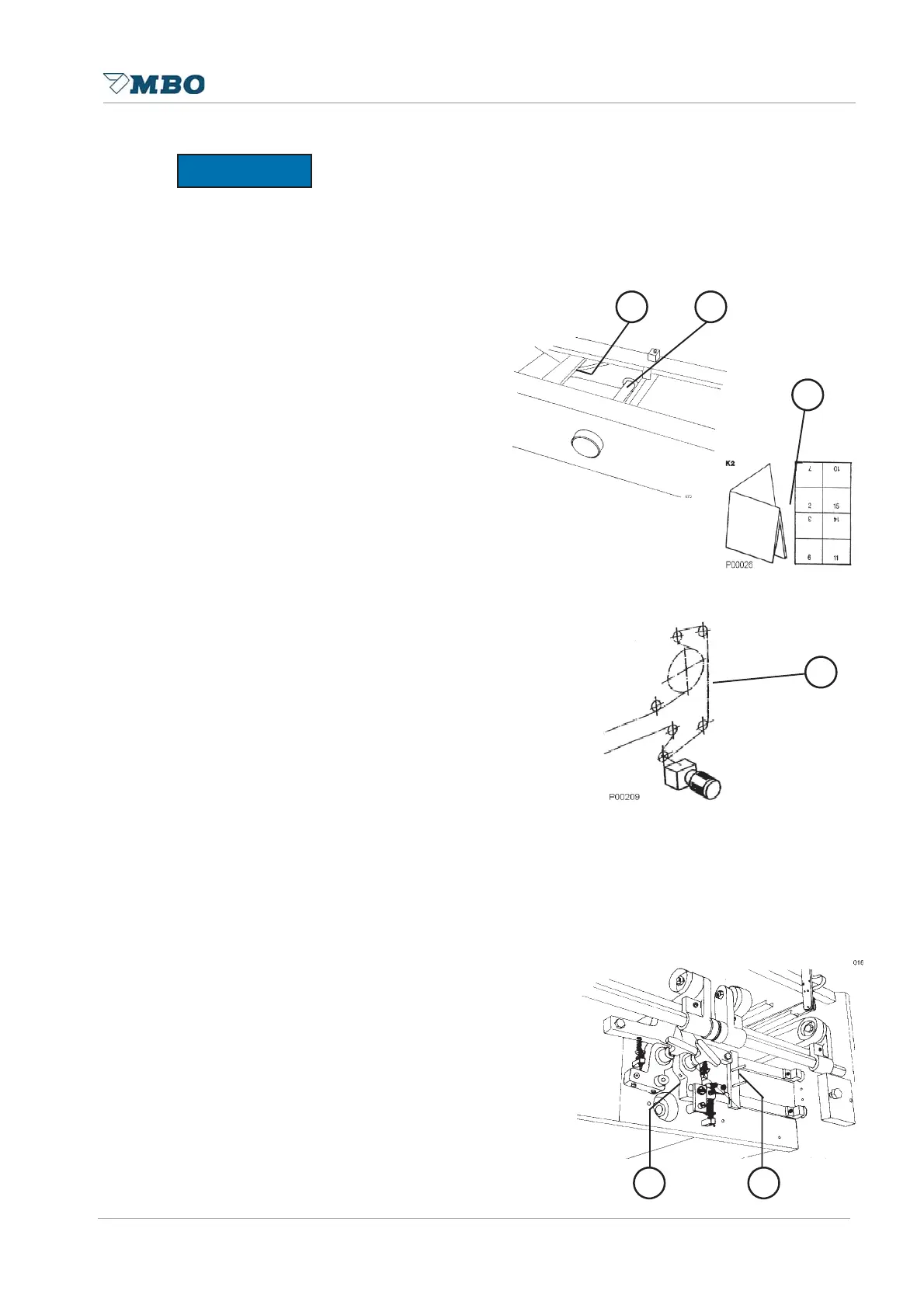

4.2 Lubrication / Cleaning
Generally, the machine should be cleaned after each job, particularly moveable parts which have
been changed due to change of sheet size, because heavy dust may cause reduction of function.
4.2.1 Main machine including register table
Clean dust off guide shaft 2 for change of
sheet size at register table as well as
drive shaft 1 and supply a slight touch of
oil.
Safety handwheels should also
occasionally be relubricated at nipples 3.
4.2.2 Continuous feeder R
Clean drive chain 4 grease slightly.
4.2.3 Guides of pressure bars / Bearings of foldrollers
Supply a slight touch of oil to all
pressure bars of foldrollers and slitter
shafts in all folding units 6 as well as
between the machine panel and bearing
levers 5, monthly (also parallel unit).
127,&(
5
1 2
3
4
6
