B 7.0 Mobile knife folding unit “X”
This new, independent knife folding unit “X” may be used as 2nd unit (crossfold) or 3rd unit
(threefold). The drive of foldrollers and slitter shafts as well as the electro-magnetic knife coupling
occurs through a flat belt.
7.1 Installation

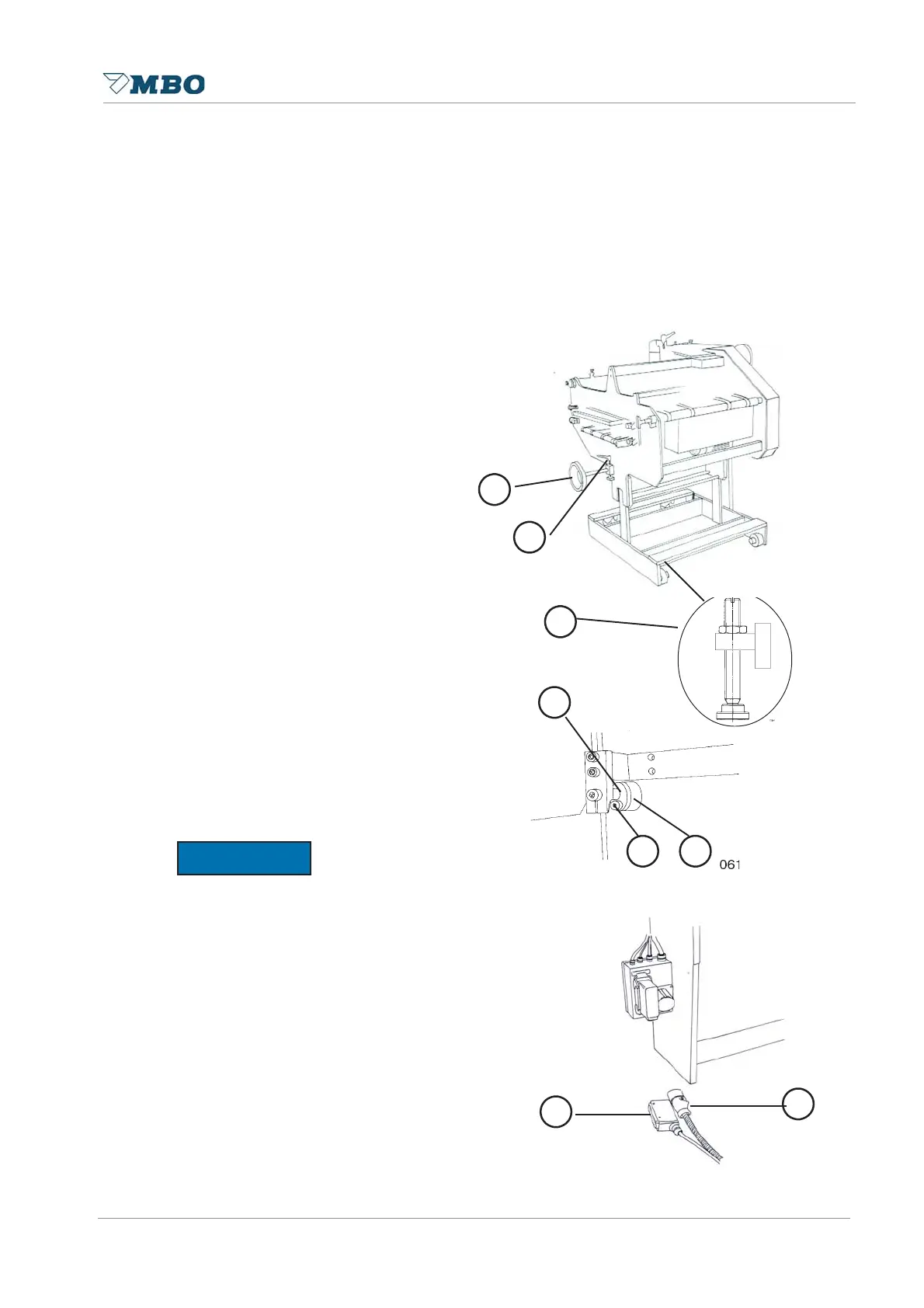

The knife folding unit ”X” is moved to the
individual exit each folding unit. Hook the
centring pin 1 on the left and right of the
unit ”X” into the bushing 2 of the previous
folding unit. The unit ”X” can be adjusted
in height with the hand wheel 3 and
locked with the handle 4. Tighten the
centring pins 1 to the bushings 2, with
the two cylinder screws 5.after than
stabilise and level the unit ”X” with the
two adjustment screws 6.
If the knife folding unit “X” has been bought separately it may become necessary to install a drive
kit for this knife folding unit “X” - see description on page 89.
7.2 Electrical connection
The electric connection occurs through
the connection cable with power plug 4
and control plug 5 at control cabinet of
the previous folding unit.
127,&(
25
1
3
4
6
5
4
