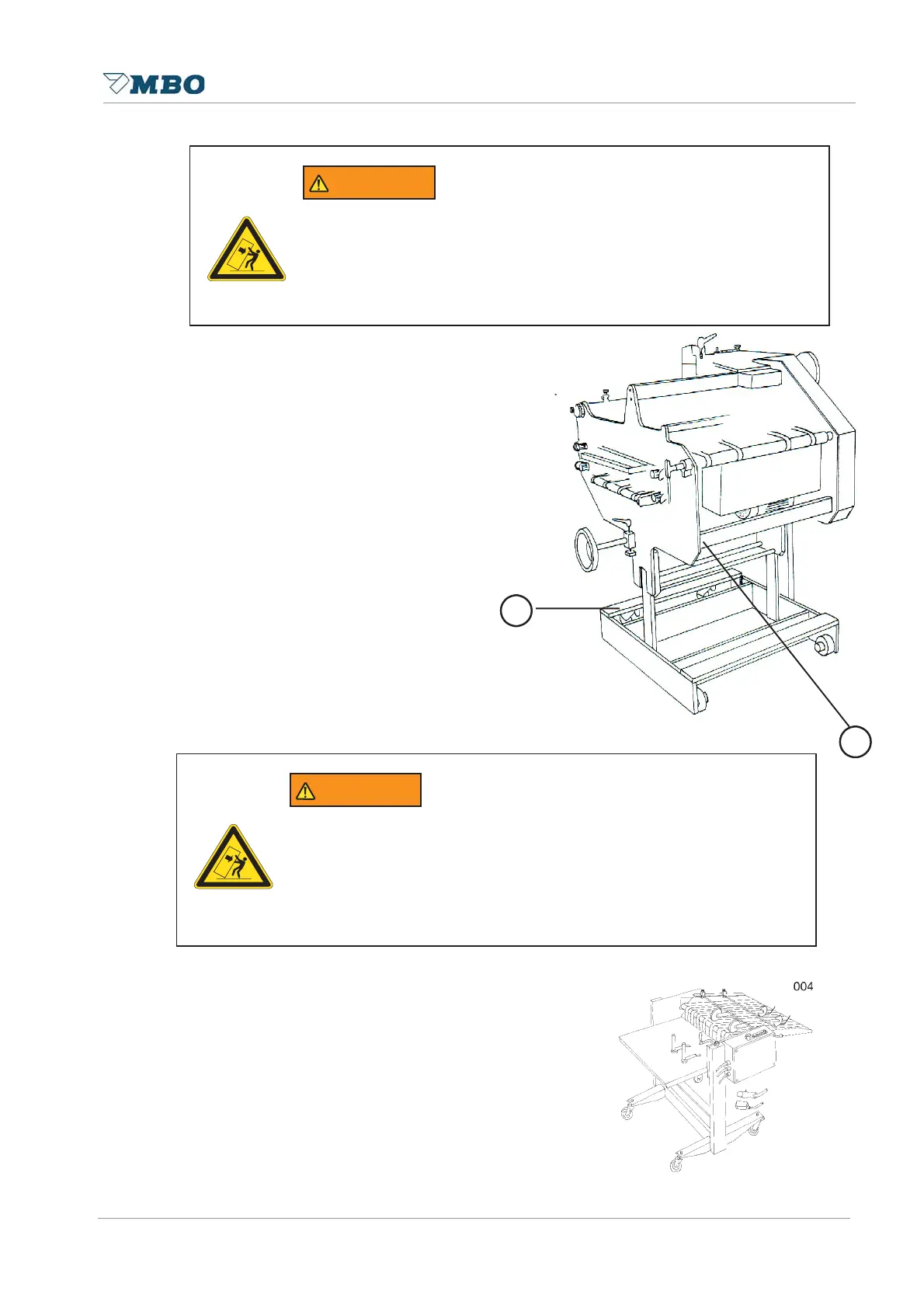

3.1.4 Mobile knife folding unit “X”
Unscrew the knife folding unit “X” off the
pallet, set the fork lift onto the frame 1,
and remove the pallet. Affix the four guide
wheels 2 and let the knife folding unit
carefully down
3.1.5 Mobile stream delivery
Unscrew the stream delivery and lift it
with two additional persons off the pallet.
Clean all machine parts (folding units and deliveries) with rust preventing agents!
Danger before turn of component during the unloading and
assembling process.
Negligence can cause heavy personal injuries or extensive damages.
• Secure the knife folding unit to prevent it from falling over or sliding!
Arrange additional personnel for unloading and setting up.
:$51,1*
Danger before turn of component during the unloading and
assembling process.
Negligence can cause heavy personal injuries or extensive damages.
• Secure the mobile stream delivery in addition with two persons off. Be
careful that by dropping it is not damaging the guide rollers and
machine rollers.
:$51,1*
