Page46Alterations reserved Version 05/2008
Operating Manual B21-C - en

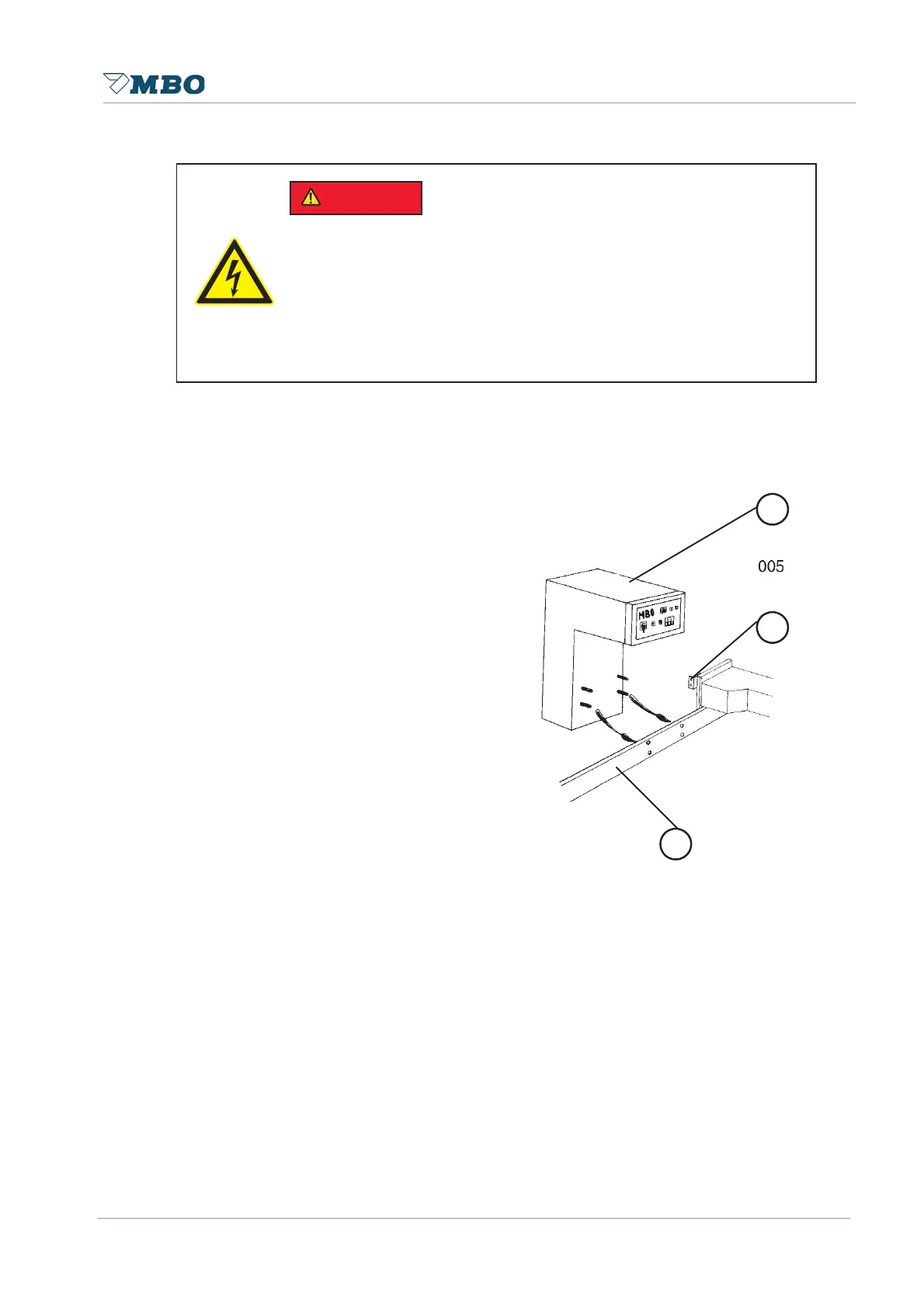

3.3.1 Control cabinet
Unpack the control cabinet 5 and fasten
it onto the side panel of the register table
6 as well as onto the angled backplate 7
at the feeder. Insert the plugs of the
feeder and the machine into the sockets
of the control cabinet. Plugs as well as
sockets bear the same marking.
Connect the cable of the feeder motor,
machine motor, sockets for auxiliary
folding units as well as the connection
cable of the compressor directly to the
motor protective switch inside the main
control panel according to the attached
wiring diagram.
Danger of electric tension.
Negligence can cause, heavy injuries or death.
• Keep the main control cabinet and the lower distributor cabinet always
locked against unauthorized persons.
• During maintenance working at the control cabinet turn off main switch
and disconnect the network connector.
• Turn off and lock out system power before servicing.
'$1*(5
6
7
5
