Operating Instructions – Labmaster
©
130 and MB20G Systems
Instruction Manual
Chapter 7: Installation
© MBraun, Inc. Edition 1/2007 Page 7-9

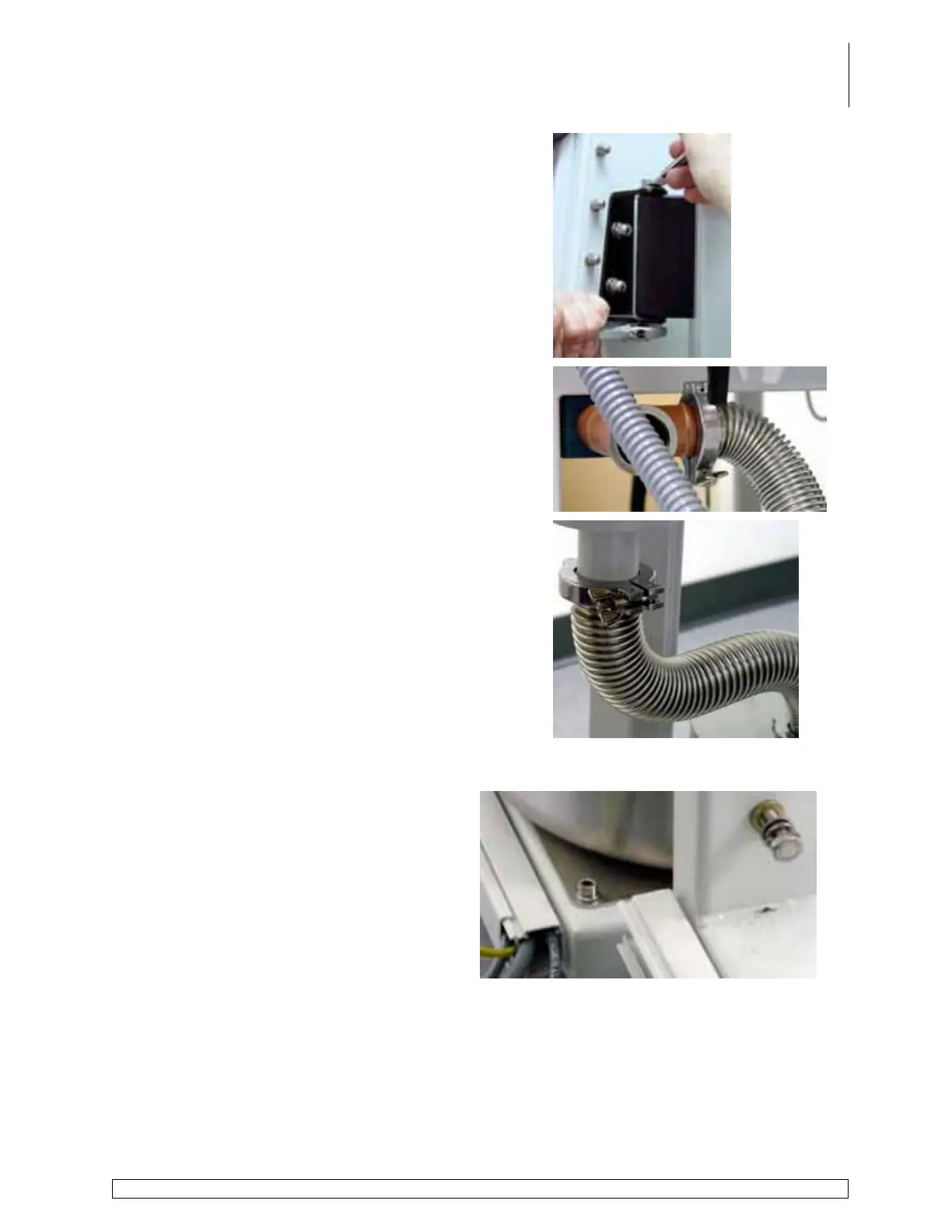

Secure the hinge by using the 13mm and adjustable
wrenches.
Attach the KF40 stainless steel flexible hose (B) from
the VHE valve on the filter column to the circulation
pipe using a KF40 clamp and o-ring.
Attach the “Out” KF40 stainless steel flexible hose (C)
on the blower to the bottom of the heat exchanger
using a KF40 clamp and o-ring.
Connecting the Ground Wire
Using the 13mm wrench remove the
grounding bolt located on the inside of the
rear leg of the stand adjacent to the purifier
cart by turning in a counterclockwise motion.
