TA80V User Manual
2.4.6.3. Parameter Setting Area
The parameter setting area is located at the bottom of the screen, and different parameters are
displayed according to different breathing modes; there are tidal volume (TV), respiratory frequency
(Freq), inspiratory-expiratory ratio (I:E), breath-hold time (Hold), trigger sensitivity ( Trigger), end-tidal
pressure (PEEP), inspiratory time (T_Insp), inspiratory pressure (PInsp). The parameter setting is
completed by the touch screen and the operation of the shuttle button. Touch the parameter button to
be modified. The parameter area is recessed. When the shuttle button is used to modify the required
value, you need to press the shuttle button to confirm. At this time, the ventilator will press the
modified parameter Perform ventilation. It can also be done by the knob alone.
2.4.6.4. The Curve Display Area
The left side of the middle white area is the curve display area. According to the settings, P-t, F-t; P-t,
F-t, V-t; P-t, P-V, F-V; F-t, P-V, F-V can be displayed at the same time.
2.4.6.5. Monitoring Parameter Areas
The right side of the middle white area is the monitoring parameter area. The black font displays the
monitored peak pressure (Ppeak), expiratory tidal volume (TV_Exp), ventilation (MV), respiratory rate
(Freq), end-expiratory pressure (PEEP), and inhaled oxygen Concentration (FiO2). The small blue
font displays the upper and lower limits of the corresponding parameter alarm.
2.4.6.6. Information Tip Area
The top side is the information prompt area, which displays the current breathing mode, alarm
information, alarm sound status, lock status, AC power and system time from left to right.

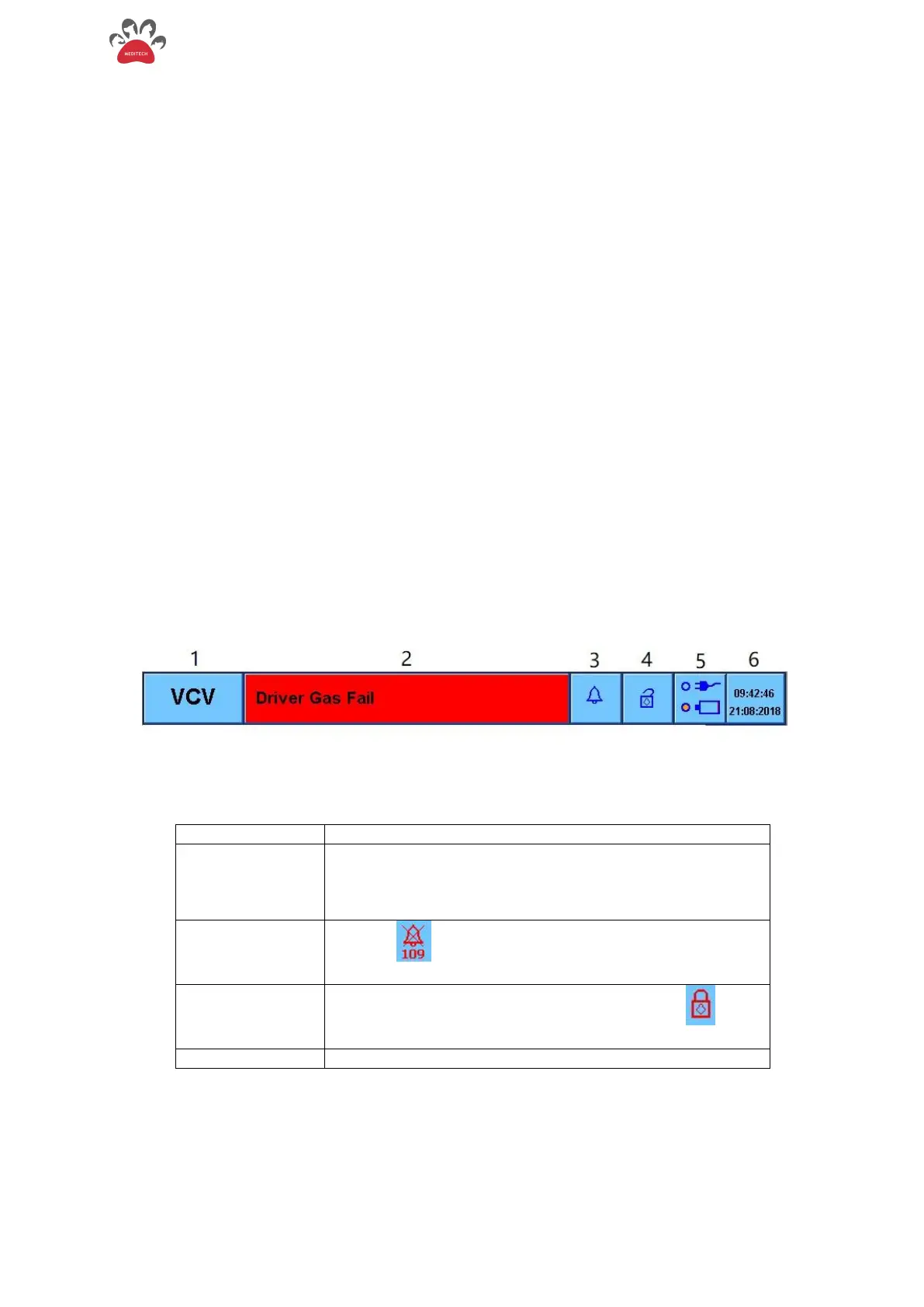

Figure 2-9 Information Prompt Area
All alarm information is displayed cyclically. Advanced
alarm, the background color is red; Intermediate alarm, the
background color is yellow; Normal alarm, the background
color is the same as the color of the information bar.
Display when Silent, the number below is the end
time of Silent
Keyboard and screen lock, after locking （ ） all
operations except Silent are prohibited
To Next Page
