STANDARD TEST PROCEDURE
AVTM246004 BITE 2/2P Rev 4 July 2011
31
2. Using the wand adapter cable, insert the wand into the
7-pin connector on the receiver. (See Figure 4-1 on
page 28 for the location of the 7-pin connector.)
The receiver prompts you to begin scanning the test
information. For information on creating bar-code labels,
refer to the documentation provided with the wand.

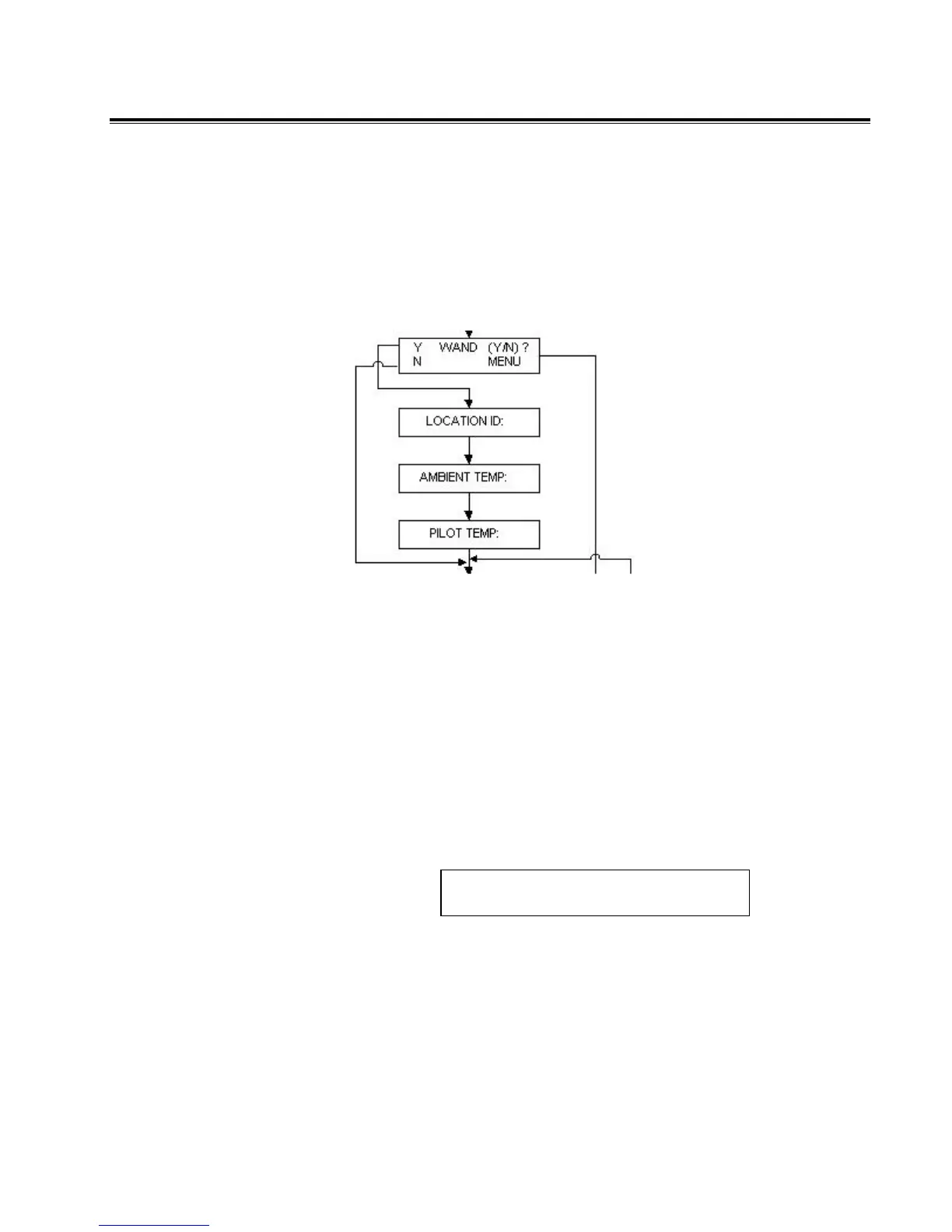

Figure 4-3: Scanning test information
If these indications do not
occur, the receiver has not
saved the information.
3. Scan the location ID. Then scan Enter. The receiver
buzzer should sound and the wand LED should light each
time you scan information with the wand.
4. Scan the ambient temperature. Then scan Enter.
5. Scan the pilot cell temperature. Then scan Enter.
You are finished scanning information. The receiver prompts
you to disconnect the wand.
DISCONNECT WAND:
........WAITING........
6. Disconnect the wand from the 7-pin connector on the
receiver.
The receiver now prompts you to set baseline, warn and fail
values for the test.
