If you do not want to test the
strap, pull the trigger and go
directly to Step Eight.
The receiver LCD now displays the word STRAP, which
prompts you to test the strap that is associated with the
cell you just tested.
CELL VOLTS m
001 13.43 23.33
T01 STRAP 0.112
4. Position the receiver and potential probe on top of the
battery strap terminals, and then press the probes down.
See the sample placement shown in Figure 4-7.
Red
Black
Current Source
Lead from
Transmitter
connected to
terminal positive
plate
Current Source
Lead from
Transmitter
connected to
terminal negative
plate

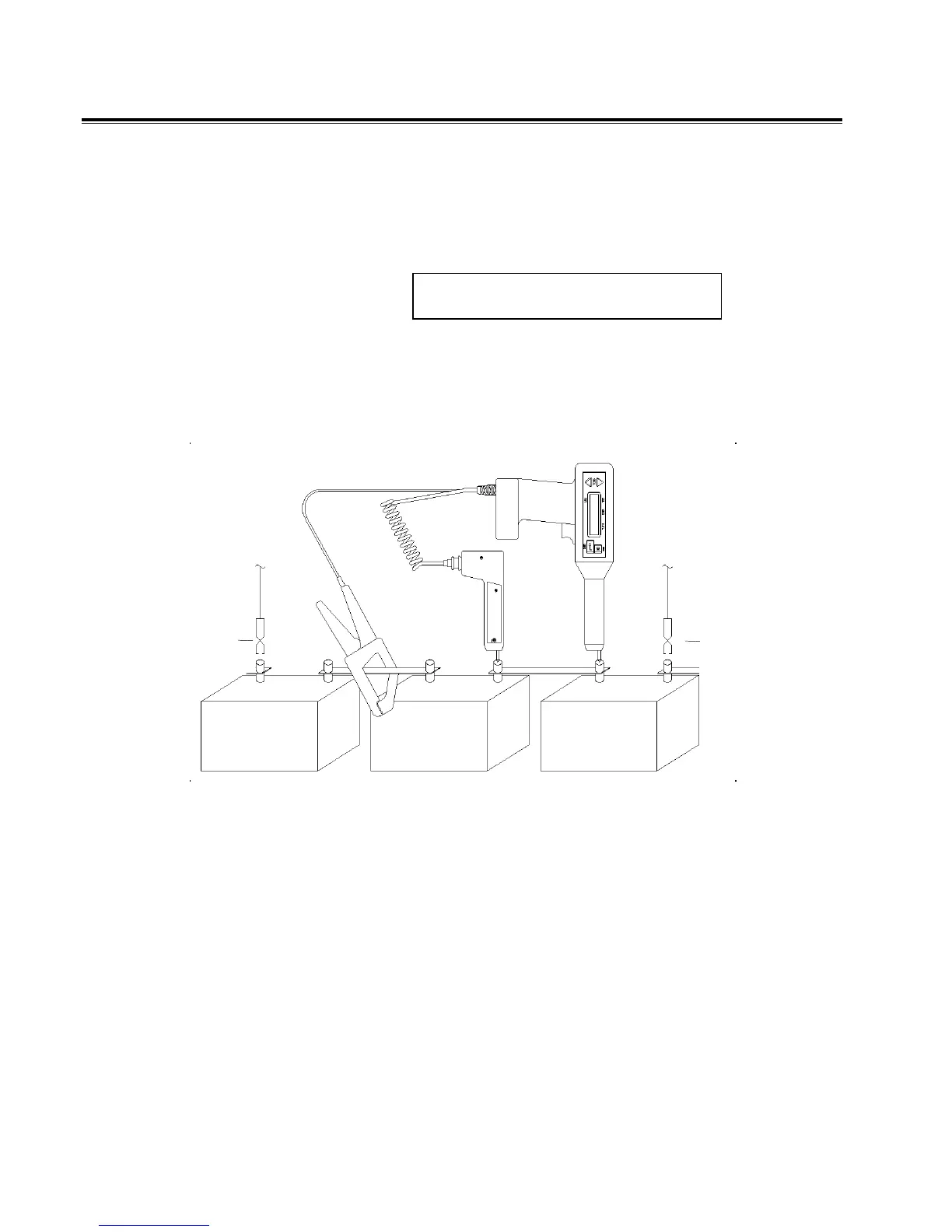

Figure 4-7: Receiver and potential probe positioned
on top of battery strap terminals
