BITE 2 Transmitter

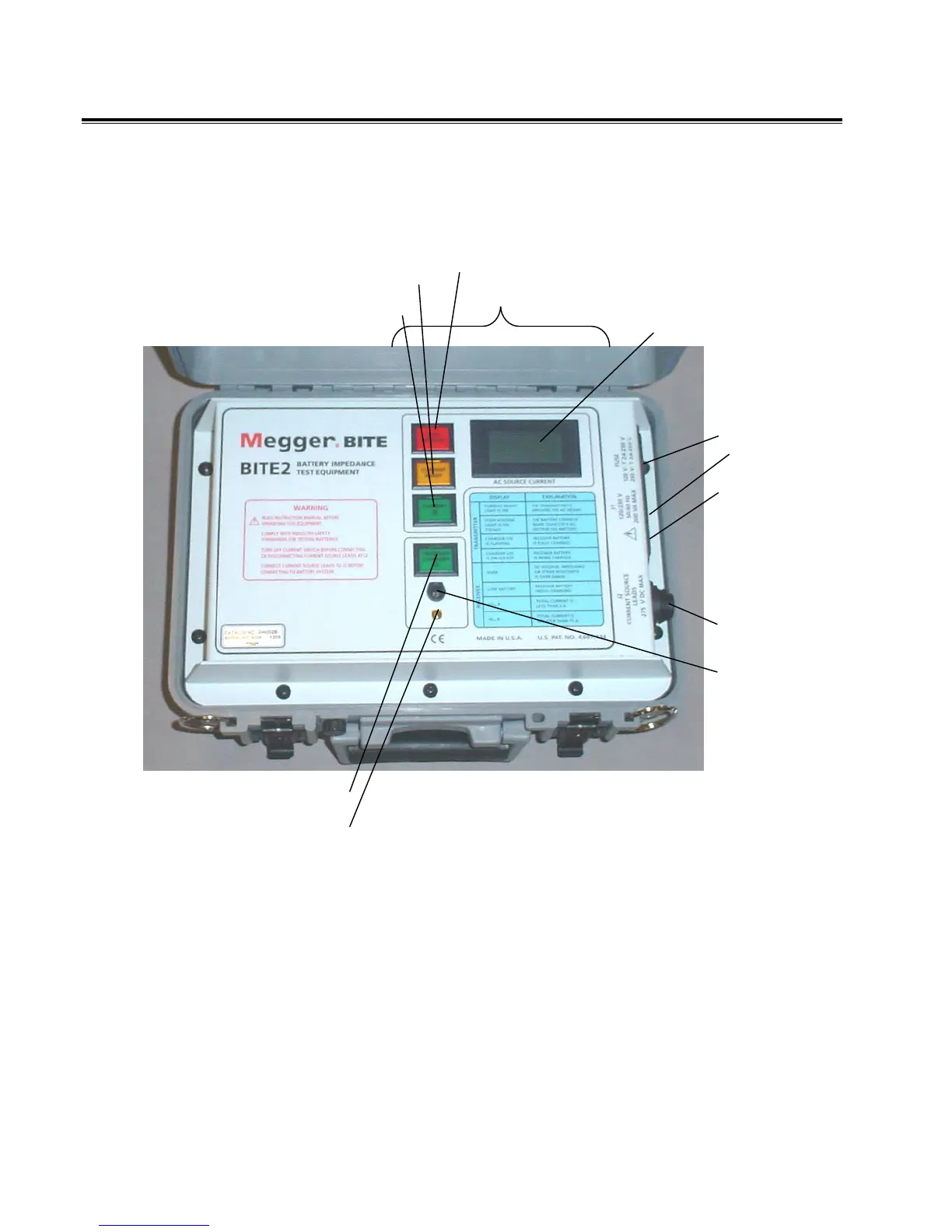

Figure 3-1 shows a front view of the BITE 2 transmitter.
Figure 3-1: BITE 2 transmitter
Digital Meter—ac source current digital indicator with a
scale of 0 to 15 A.
Power Switch—The power switch is pressed to turn the
transmitter on and off. The power switch is marked with |
(for ON) and O (for OFF).
Current On/Off Switch—The current on/off switch is
pressed to start or stop the flow of the test current to the
battery.
Current On/Off Switch
Current Ready
Digital Meter
Control Panel
Power Switch
J3
J2
Over Voltage
Receiver Charger On/Off Indicator
Receiver Charger On/Off Indicator
J1
F1
