BITE 2P Transmitter

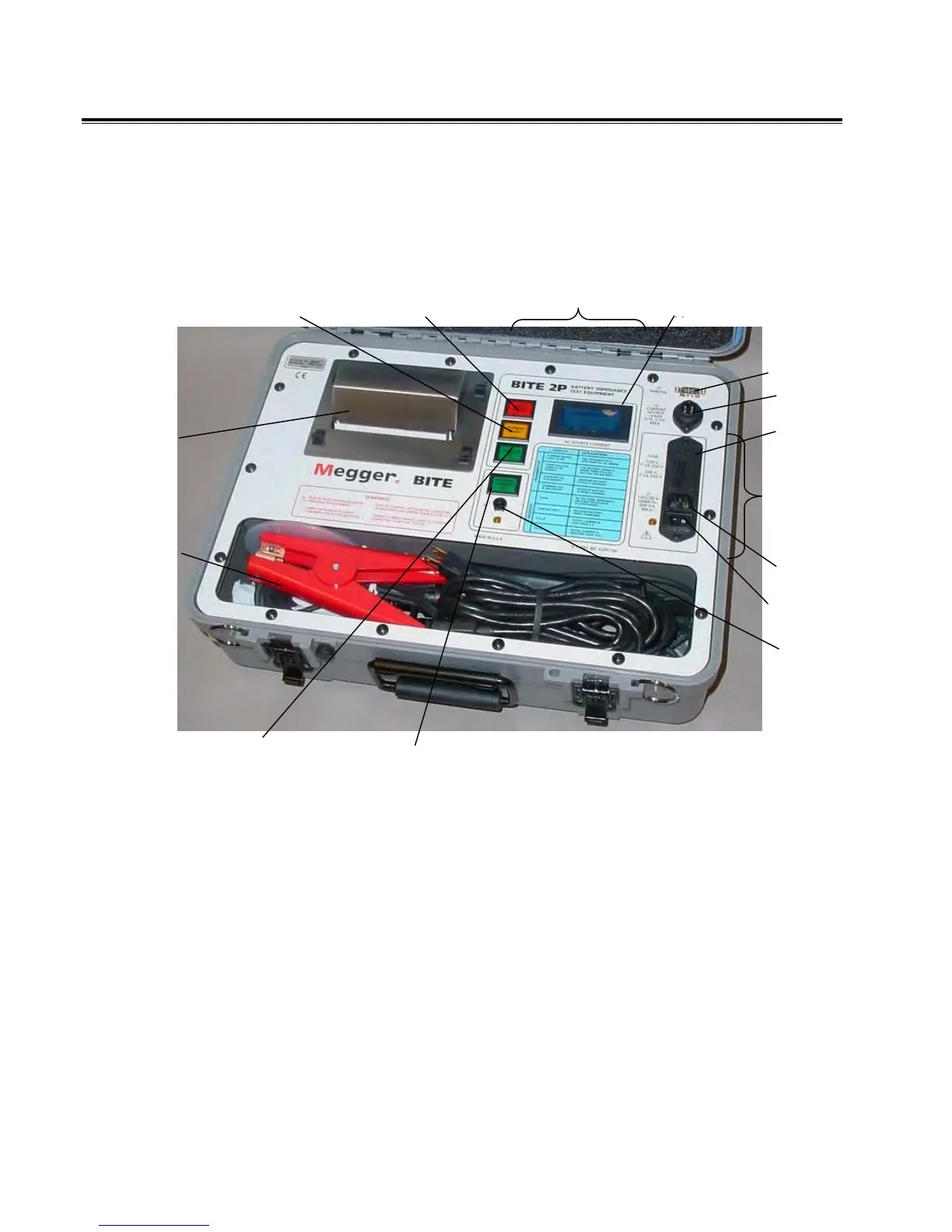

Figure 3-2 shows a front view of the BITE 2P transmitter.
Figure 3-2: BITE 2P transmitter
Digital Meter—ac source current indicator with a scale of 0
to 15 A.
Power Switch—The power switch is pressed to turn the
transmitter on and off. The power switch is marked with a |
(for ON) and an O (for OFF).
Current On/Off Switch—The current on/off switch is
pressed to start or stop the flow of the test current to the
battery.
Control Panel
Receiver Charger
Current On/Off Switch
J2
Printer
Storage
Bin
J3
Power
Module
Power
Switch
J1
Digital
Meter
Over Voltage
Current Ready
F1
J4
