7. Replace the fuse carrier in the power module on the
transmitter.
NOTE: An indicator pin is located on the fuse carrier to the
right of the J1 receptacle. Make sure that this indicator pin
points to the correct voltage (120 V or 230 V).
8. Test the transmitter as described under Verifying a
Transmitter Fuse Problem” on page 79.
If the instrument still does not respond correctly, return it
to Megger for service. Please refer to the repair section
later in this chapter.
Replacing the BITE 2
Transmitter
Secondary Fuses

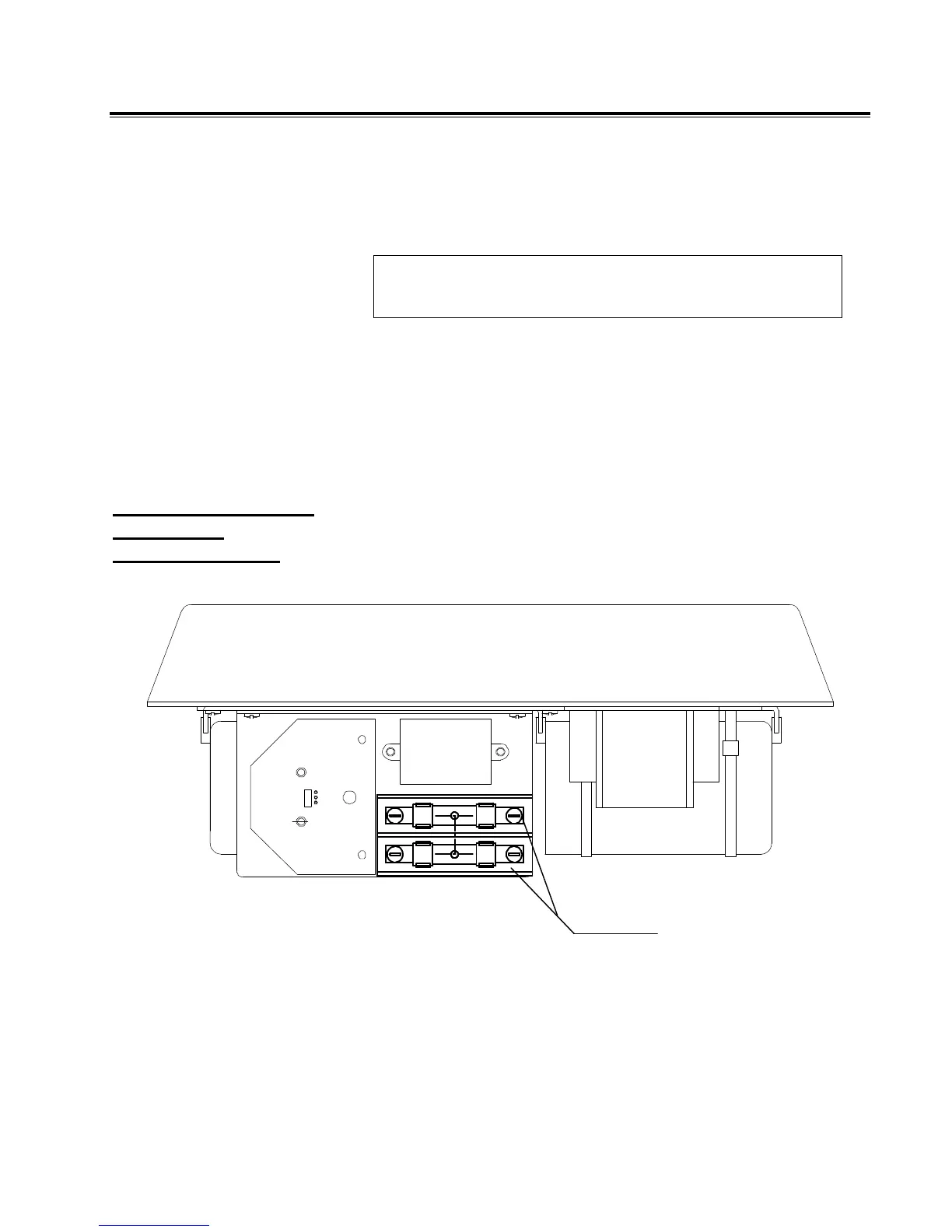

Figure 9-2: BITE 2 transmitter secondary fuses (front view)
Fuse Location
