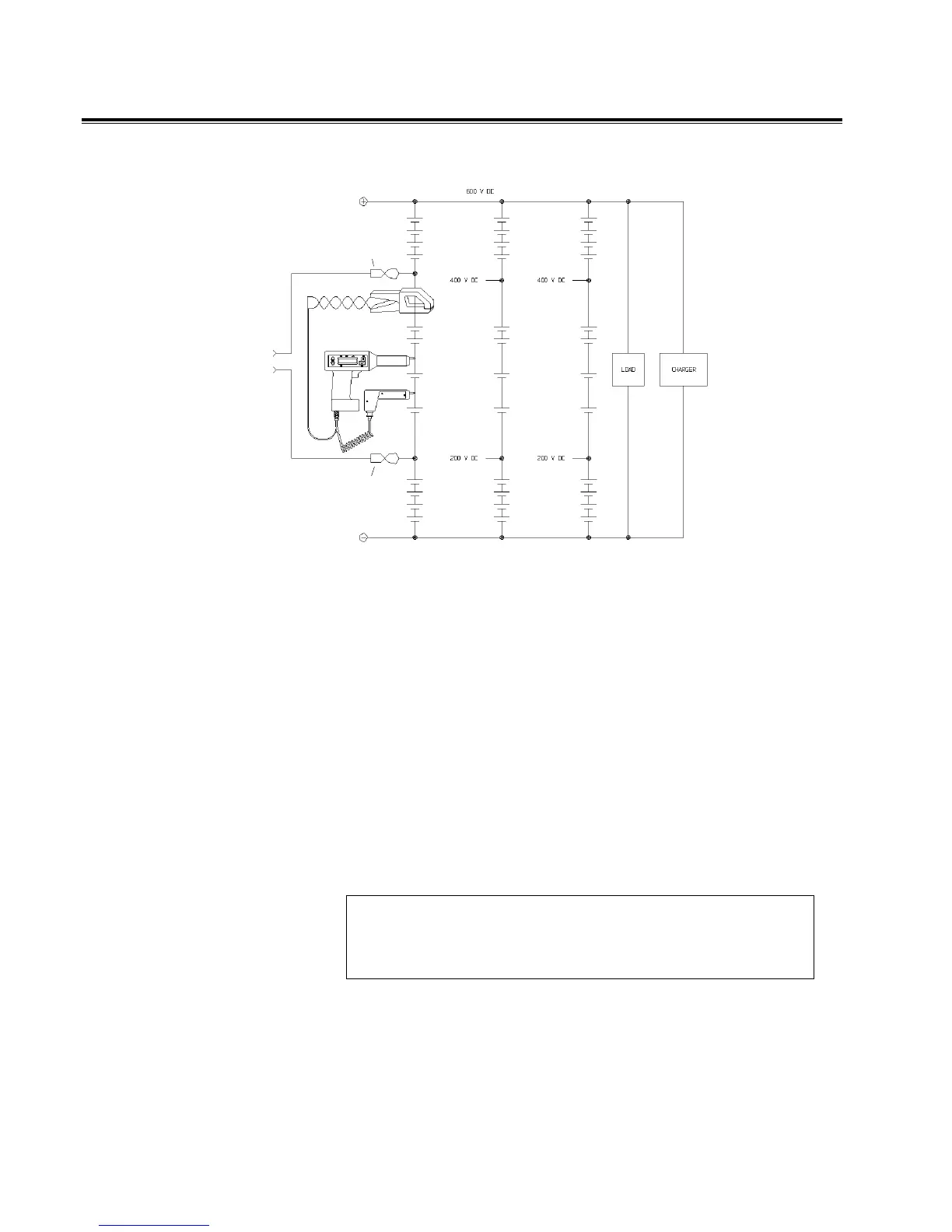

Figure 5-2: Sectioning a battery system greater than 275 V
The potential between the current source leads (red at A
and black B) in Figure 5-1 cannot exceed 275 V. To section
the string:
1. Place the current source leads (at points A and B) in the
string so that the potential does not exceed 275 V.
2. Test the cells located between connections A and B.
3. When you are finished testing the cells, press the Current
switch on the transmitter to the O (OFF) position.
NOTE: If you have to move the transmitter to test the next
section, you may need to power down and disconnect the
transmitter. (See "Powering Down and Disconnecting the BITE
2/2P" on page 45.)
4. Remove the current source leads from the battery. Then
move them to the next section to be tested (not to exceed
275 V).
