6 APPLICATION EXAMPLES
6.2 Example 2
3-phase circuit breaker with
two interrupters per phase and
separate operating mechanism

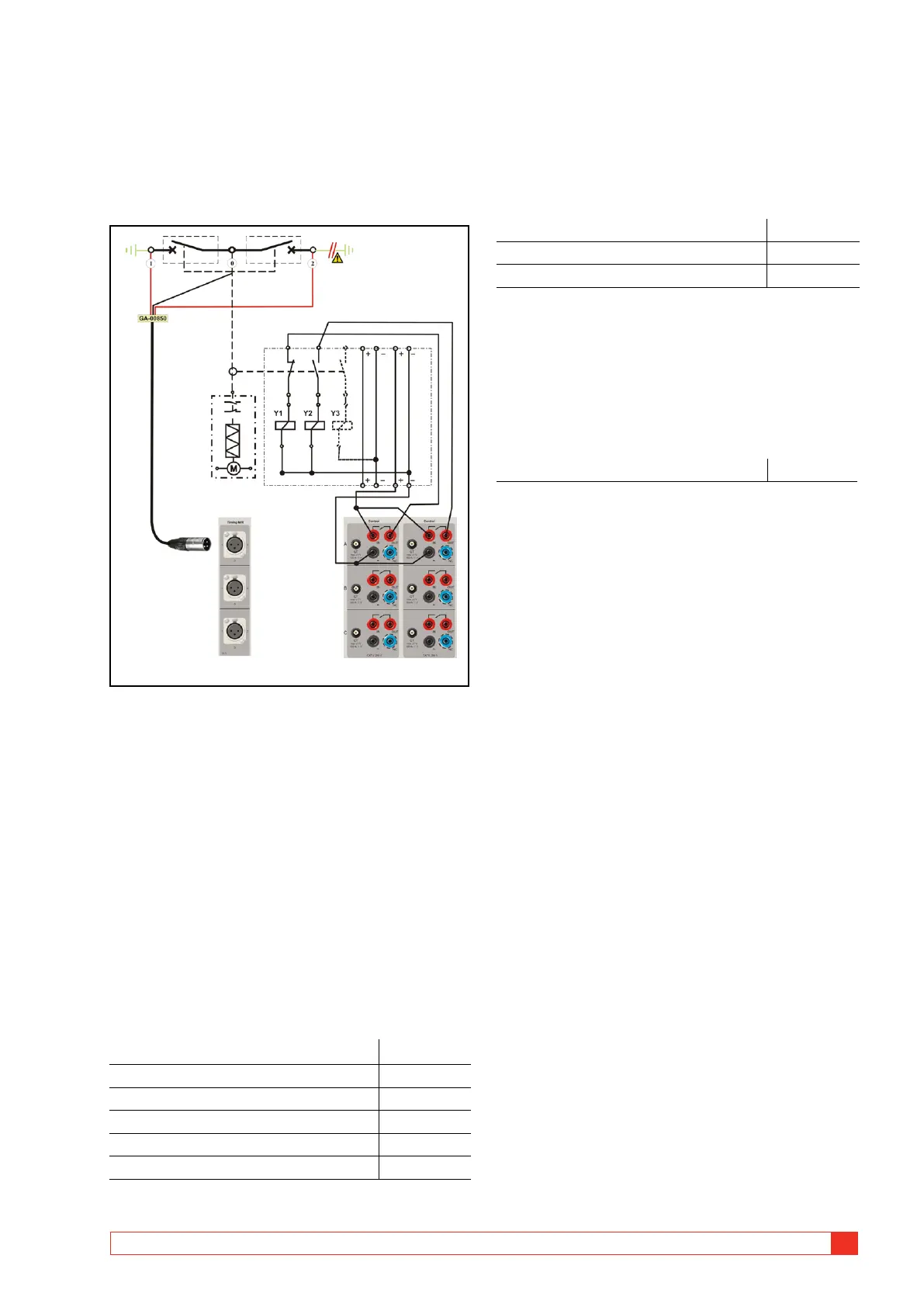

How to connect (per phase)
Test quantities
▪ Main contact timing measured by the Timing M/R section
▪ Auxiliary contact timing (one a & one b contact) measured
by the Control section
▪ Coil current & voltage measured by the Control section
Transducer in use
▪ n/a
Others
▪ No resistor contacts, no grading capacitors
Necessary settings in Breaker View
Breaker View
Number of phases 3
Operating mechanism Separate
Number of interrupters per phase 2
Resistor contacts None
Number of a-contacts 1
Number of b-contacts 1
Breaker View \ Pulse & Delay Times
These settings are depending on the circuit breaker
type. If you are uncertain please refer to the breaker
manufacturers data.
Breaker View \ Measurement Preferences
Coil current On
Control voltage On
Static voltage On
Breaker View \ Measurement Preferences \
Measurement Time & Sample Interval
The default settings should be sufficient in most of
the cases.
Breaker View \ Measurement Preferences \
Motion Measurement Preferences
Transducer type Off
To Next Page
