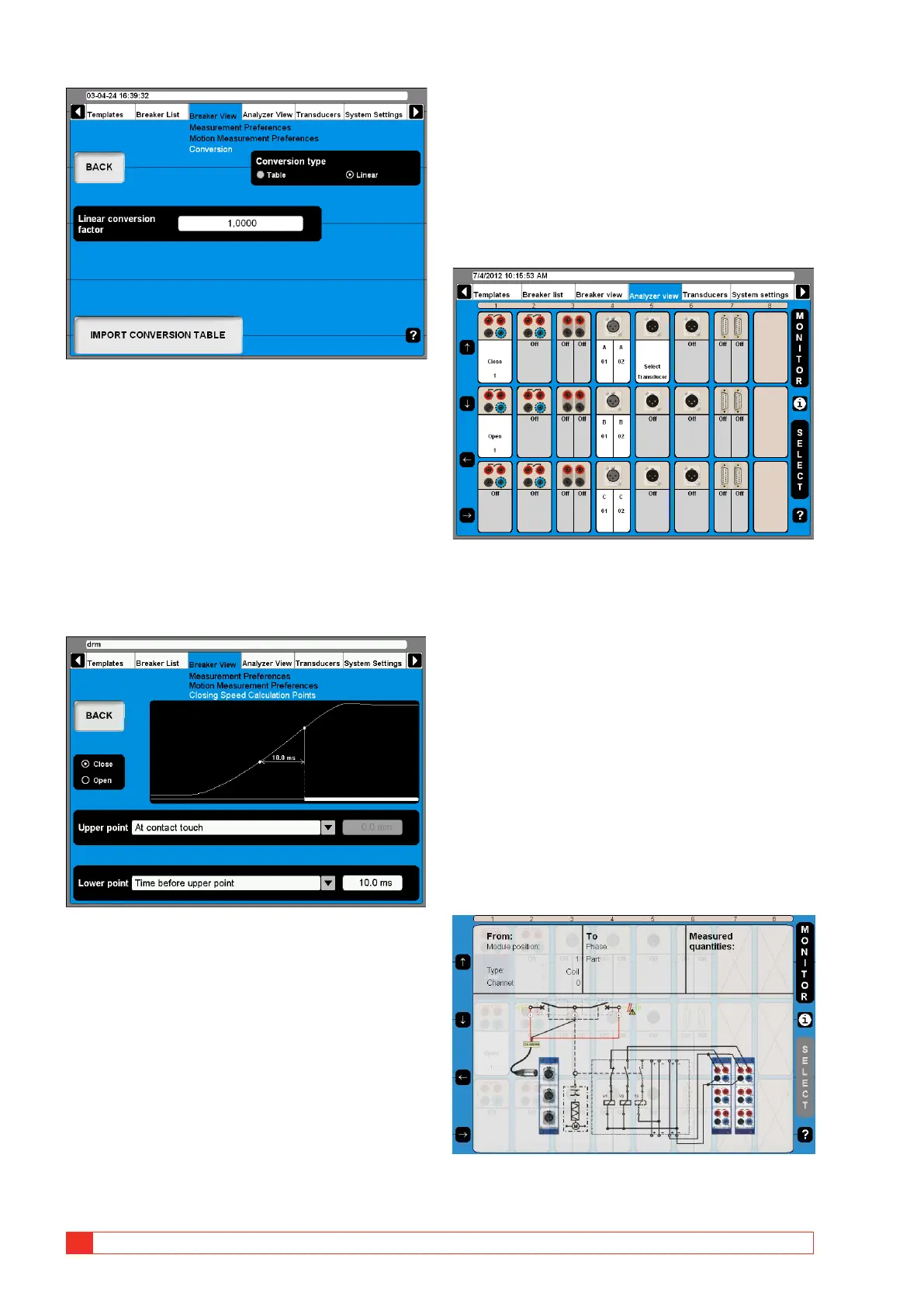

2] Press button to select Conversion type, “Ta-
ble” or “Linear”.
– If the option “Table” is selected a conver-
sion table file must be loaded by pressing the
“IMPORT CONVERSION TABLE” button
– If “Linear” is selected enter the “Linear
conversion factor”.
3] Press “BACK” to leave the Conversion screen.
4] Press the button “SPEED CALCULATION
POINTS” whereupon the following screen
appears.
5] Do the appropriate settings for “Close” and/
or “Open”. Whenever possible refer to the
breaker manufacturers definition.
6] Press “BACK” to leave this screen.
4.12 Analyzer view menu
The Analyzer View visualizes the link between the
instrument and the test object. In Analyzer View you
obtain information about your system configuration,
channel occupancy, hook-up instructions and so on.
When entering the Analyzer View the hook-up screen
is shown.
▪ The screen shows all sections and where they are located
in the system
▪ Channels that are, due to the definitions made in breaker
view, not used are marked Off.
▪ The usage for all active channels are stated e.g. Close for
the upper channel of the first Control section.
▪ Each active channel can be marked with the cursor with
the help of the arrow buttons on the left hand side of the
screen or by using the mouse/trackball.
Hook-up instructions
1] Mark any channel and press the “i” button
in the middle of the right hand side of the
screen upon which the system provides you
with the information on how to connect.
Below is an example.
2] Press the “i” button a second time to go back
to monitor view.
