44 TM1700-SERIES ZP-BL16E BL1448GE
4 CABA LOCAL

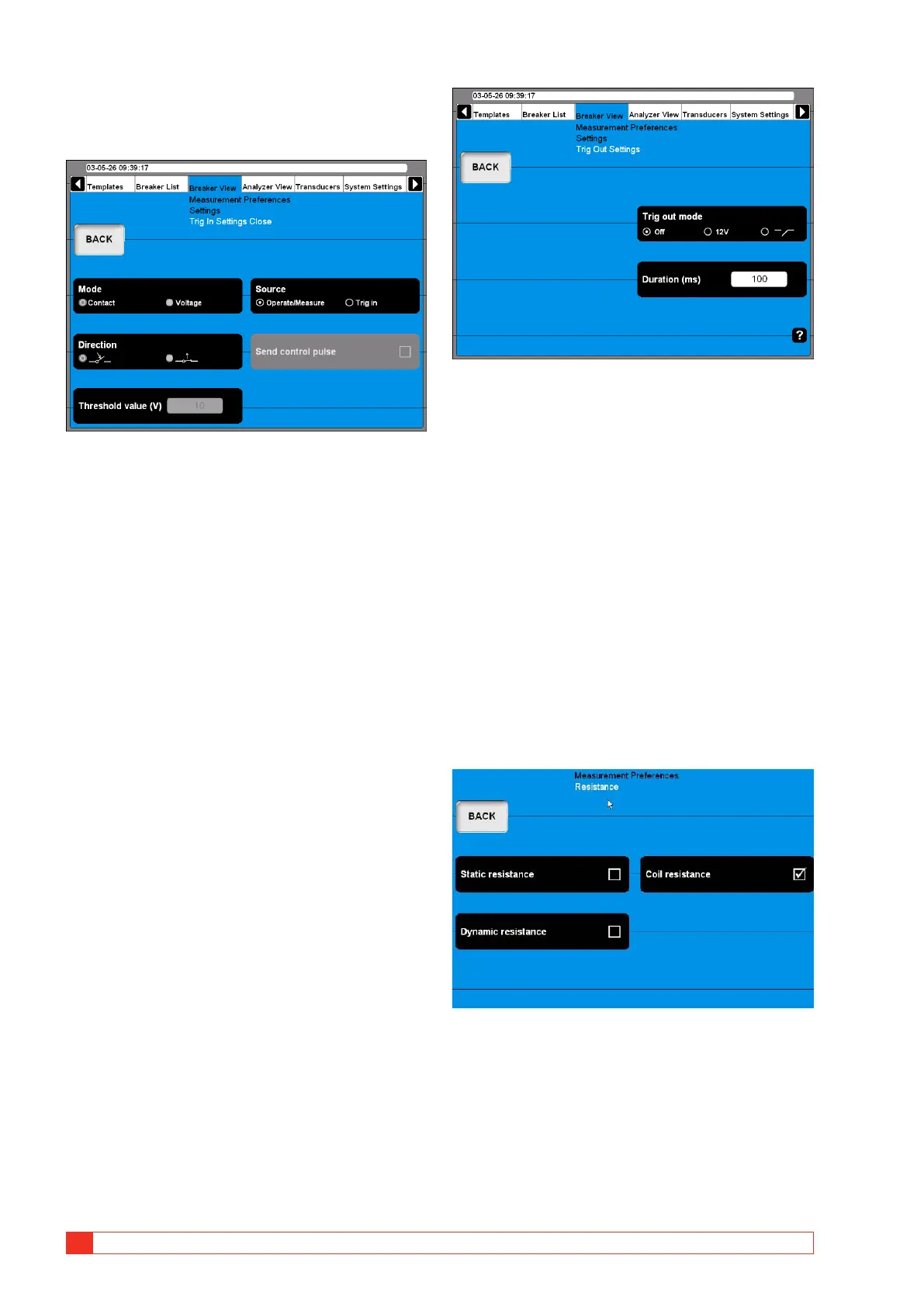

The following picture shows the settings for
“CLOSE”. The settings for the other sequenc-
es are the very same.
Source
Use the button to select if the measurement shall start
upon turning the Operate/Measure knob on the panel
or upon fulfillment of trigger condition on the Trig in
terminal. To be able to do settings here Trig in must be
selected of course.
Mode
With the button you toggle between “Contact” (dry)
or “Voltage” (wet) sense on the trig in terminal.
Direction
With the button you select if the trigger signal shall
be a closing or opening contact in contact mode or a
positive or negative flank in voltage mode.
Send control pulse
If the button is marked the instrument will generate
breaker control commands on the control channels. If
not only the measurement will take place.
Threshold value (V)
Enter the appropriate value in the field if voltage
mode is selected.
Synchronous to the measurement start, the instru-
ment can generate an output signal. In the “Settings”
menu press the “TRIG OUT SETTINGS” button to do
the settings.
Trig out mode
By pressing the button repeatedly you toggle be-
tween:
▪
Trig out = Off
▪ Trig out = a 12V signal
▪ Trig out = closing contact
Duration (ms)
In the field you enter the desired duration of the trig
out signal.
Setting the resistance
measurement preferences
1] In Breaker View/Measurement Preferences
press the “RESISTANCE” button to make the
settings. The following screen appears.
Static resistance
Pressing the button enables/disables static resistance
measurements.
Coil resistance
Pressing the button enables/disables coil resistance
measurements.
