BL1448GE ZP-BL16E TM1700-SERIES
65
5 PERFORM TESTING
Parameter Default value Editable in
TM1700
Compression Off Yes
No. of Control sec-
tions activated
1 Yes (If applica-
ble)
Trig out mode Off Yes
Duration 100ms Yes
Trig in Source C, O,
CO, OC, OCO
Operate / Meas-
ure
Yes
Static resistance Off Yes
Dynamic resistance Off Yes
Coil resistance Off Yes
Transducer type
Analog/Digital
Analog Yes
Transducer type Lin-
ear/Angular
Same as original
breaker
No
Absolute / Relative Absolute Yes
Nominal stroke Same as original
breaker
Yes (Per Motion
channel. Before
only one entry
per breaker)
Conversion - Conver-
sion table
No conversion Yes (If applica-
ble, i.e. if there
is a calculated
MOTION graph
defined in the
test plan for the
corresponding
Objectid)
Conversion Linear -
Conversion factor
1 Yes (If applica-
ble, i.e. if there
is no calculated
MOTION graph
defined in the
test plan for the
corresponding
Objectid)
Speed calculation
points
Same as original
breaker
Yes

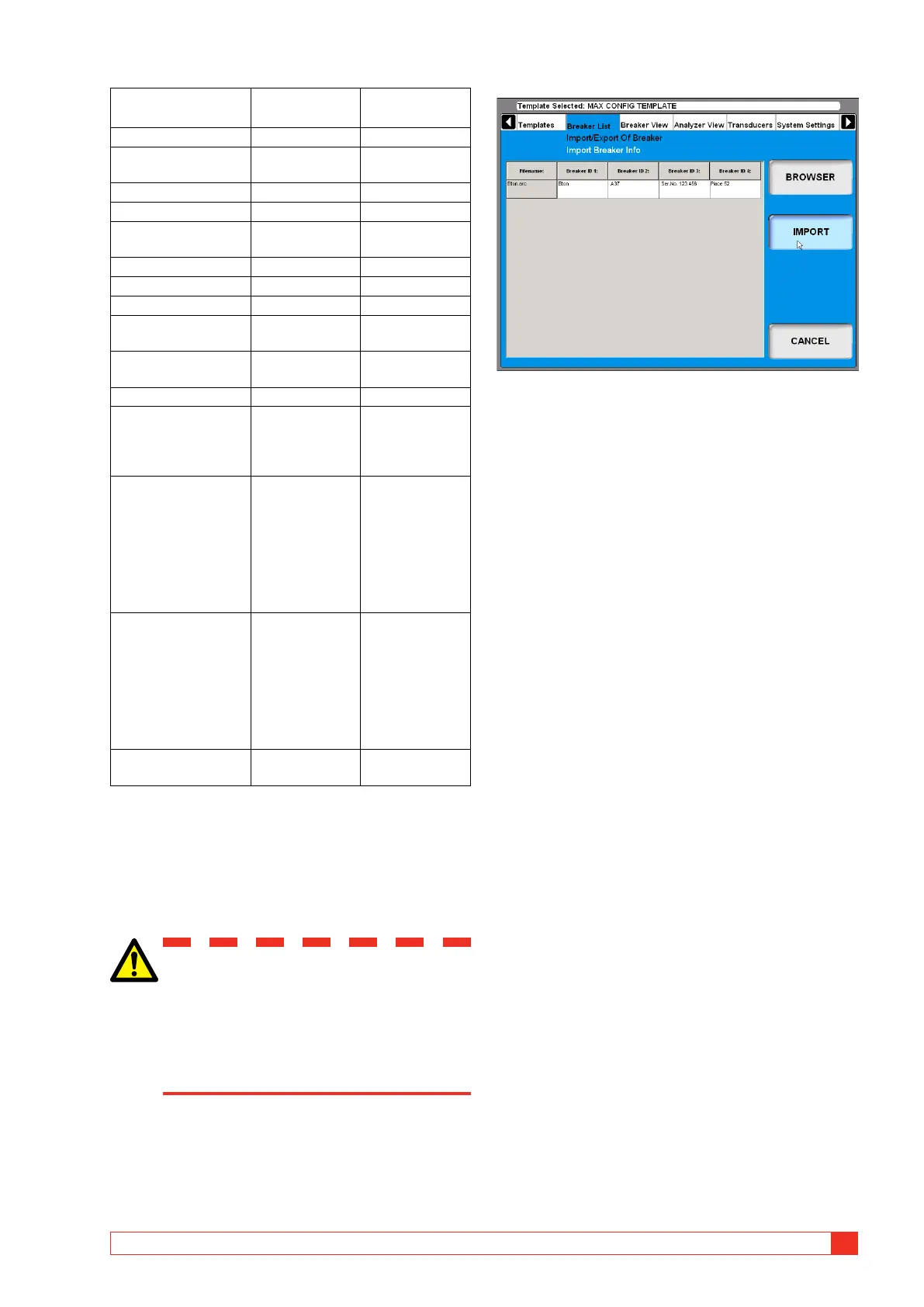

Import circuit breaker set-ups from
CABA Win
You can import pre-defined breakers from CABA Win
into CABA Local in the instrument.
IMPORTANT
The import function only supports circuit
breaker set-up/test plans created or ap-
proved by Megger Sweden AB. Megger
Sweden AB takes no responsibility for
circuit breaker set-up/test plans manually
edited or created by users.
1] Select “Import Breaker” from the Breaker
List.
2] Browse for the breaker you wish to import
and click the “IMPORT” button.
