9 DATA ANALYSIS
Exit
Exits
Edit menu
Notes
Used to edit notes for the selected operation.
Copy Graph/Parameters to Clipboard
Copies the active/selected graph or parameter table to
the clipboard for use in other programs.
Copy Graph to File
Copies the selected graph as a bitmap file to the
selected directory.
View menu

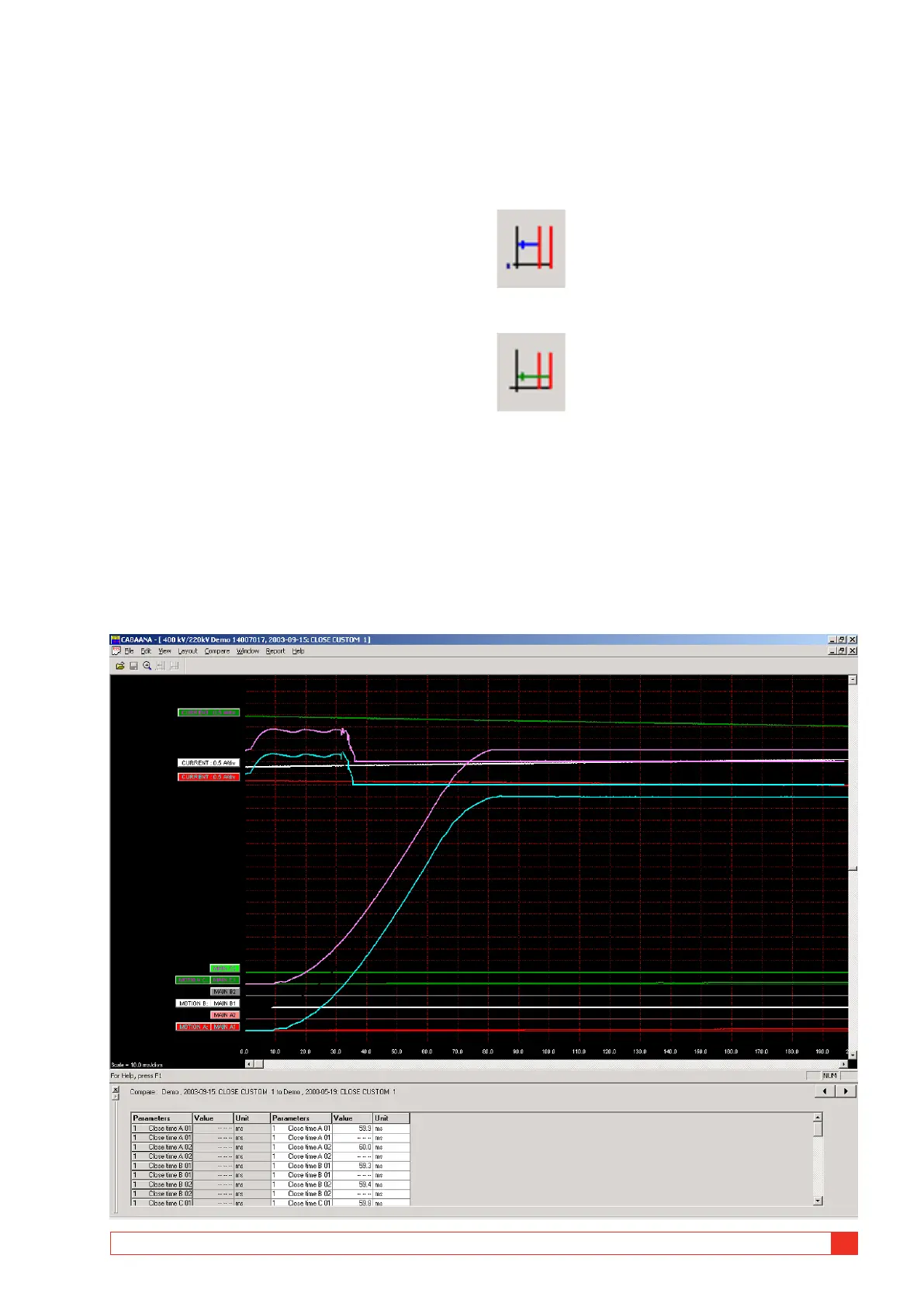

Cursor Data
Opens an on-chart-marking window to facilitate de-
tailed analysis.
The two cursors can be moved using the mouse.
1] Hold down left button, pick up at left edge
of window or with left/right arrow keys.
2] Select cursor by clicking on “Time 1” or
“Time 2”. Movement steps are user-selecta-
ble.
3] To reset the cursors to time zero, use the icon
buttons on the toolbar.
Time 1 reset.
Time 2 reset.
The table displays measurement values at time 1 and
2 and also the difference. Please note that for the
velocity graph the “difference” is instead the average
velocity between the two cursor positions.
Speed calculation points
Select if the speed calculation points should be dis-
played.
