HARDWARE MANUAL Document reference MAMPS-HW/E

VM600 machinery protection system (MPS) Edition 18 - March 2022

9-4

Definition of screw terminals on the IOC4T card

CONFIGURATION OF MPC4 / IOC4T CARDS

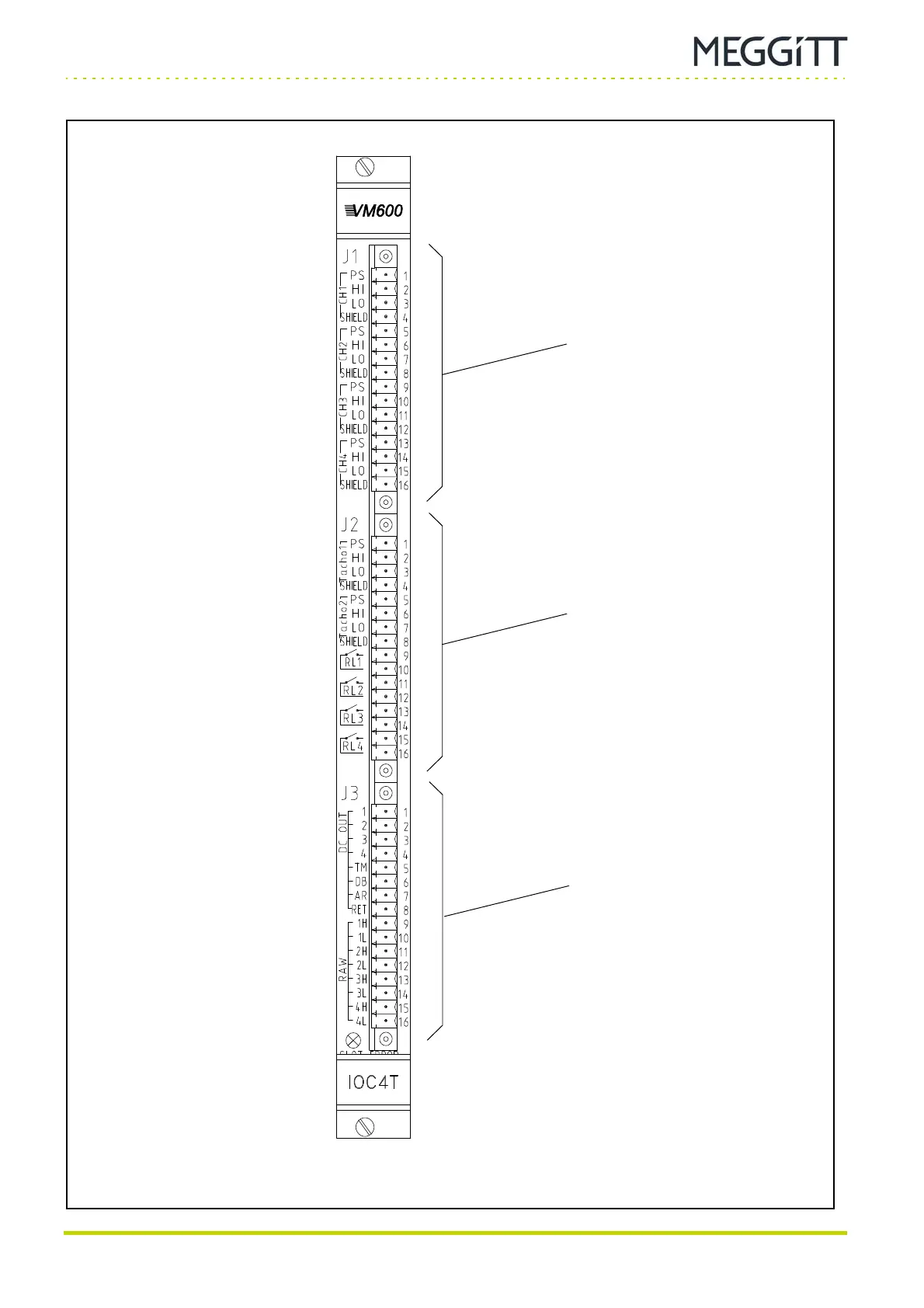

Figure 9-1: View of IOC4T card showing definition of terminals

Connector J1

(terminal strip with 16 screw

terminals)

Connector J2

(terminal strip with 16 screw

terminals)

Connector J3

(terminal strip with 16 screw

terminals)
