HARDWARE MANUAL Document reference MAMPS-HW/E
VM600 machinery protection system (MPS) Edition 18 - March 2022
2-6
Racks
OVERVIEW OF VM600 MPS HARDWARE
NOTE: The wiring of the DC power supply input connector, as shown in “Rear view
(DC version)” of Figure 2-4, is correct and is compatible with earlier versions of the
ABE056 rack.
The equivalent “Rear view” drawing used in some earlier versions of the VM600
MPS hardware manual was incorrect, so it appears that the DC power supply input
connector wiring has changed, but it has not.
POWER SUPPLY
CHECK
POWER SUPPLY
18-58VDC
60Wmax
POWER SUPPLY
CHECK
POWER SUPPLY
90-264VAC
100Wmax
Rear view (AC-input version)

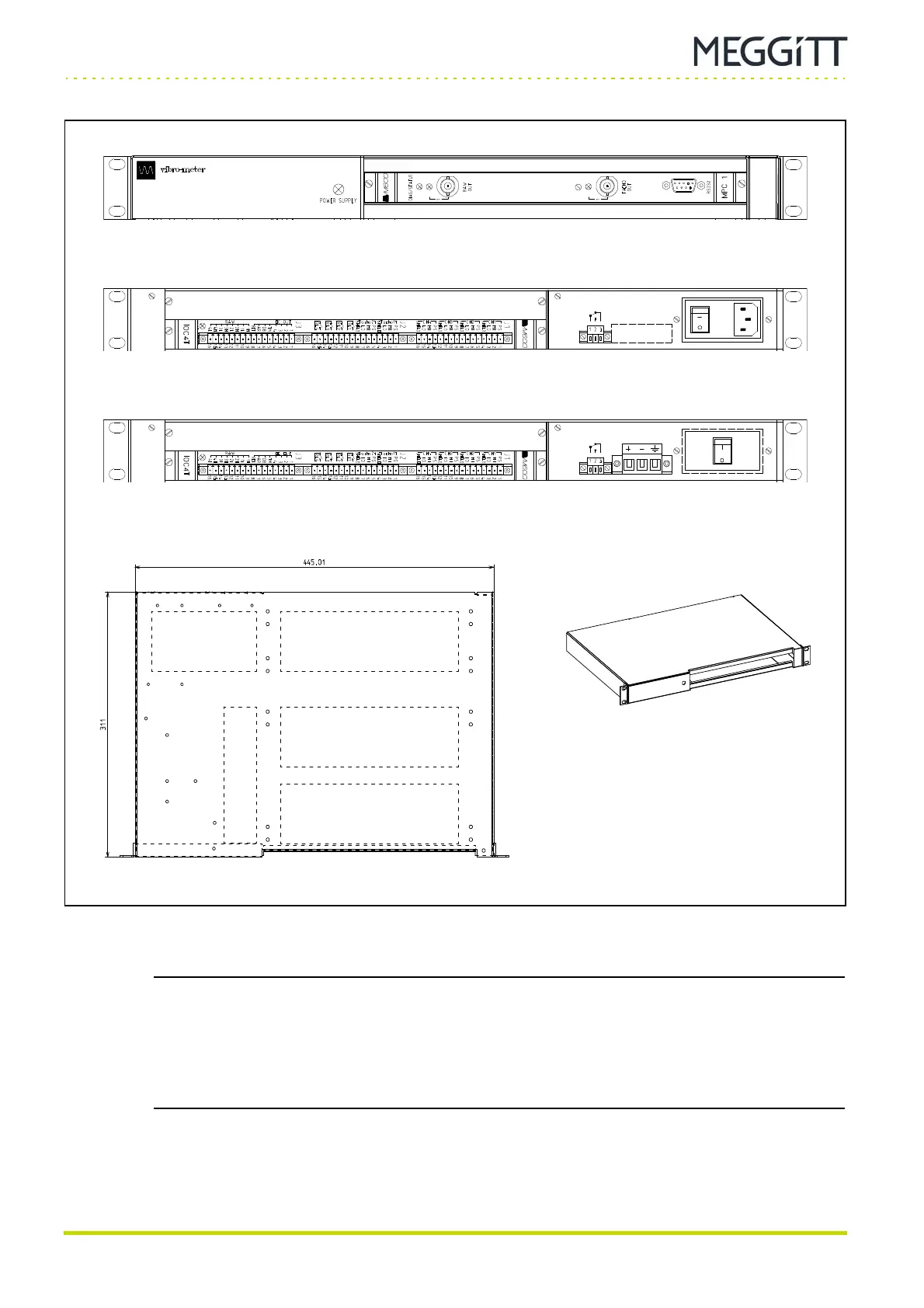

Figure 2-4: Views of a typical ABE056 rack
Top view 3D view
Front view
Rear view (DC-input version)
