Meggitt vibro-meter VM600 User Manual

Document reference MAMPS-HW/E HARDWARE MANUAL
Edition 18 - March 2022 VM600 machinery protection system (MPS)
2-33
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.9.5 AC-input (120/230 V
AC
) panel with a common input (mains socket and on/off switch)
NOTE: For a VM600 system rack (ABE04x) operating with an external AC-mains supply,
the AC-input panel with a common input is the standard associated rear panel.
This rear panel has one AC input (120/230 V
AC
) with mains socket and on/off switch that
provides a common input to the AC-input version of the RPS6U power supplies in a VM600
rack.
Figure 2-21 shows:
a. The associated panel at the rear of the ABE04x rack
Rear panel ordering number: 200-582-910-NHh
(equivalent VM600SYS order option code: F100).
b. Details of the associated VM600 rack power supply wiring.
(The front panel of the AC-input version of the RPS6U rack power supply is shown in
Figure 2-16.)
A VM600 rack power supply solution using this AC-input panel is intended for use with one
external AC-mains (120/230 V
AC
) supply. See 2.10.7 VM600 racks and power supply
redundancy and Table 2-1.
vibro meter
DATA
MATRIX
2D

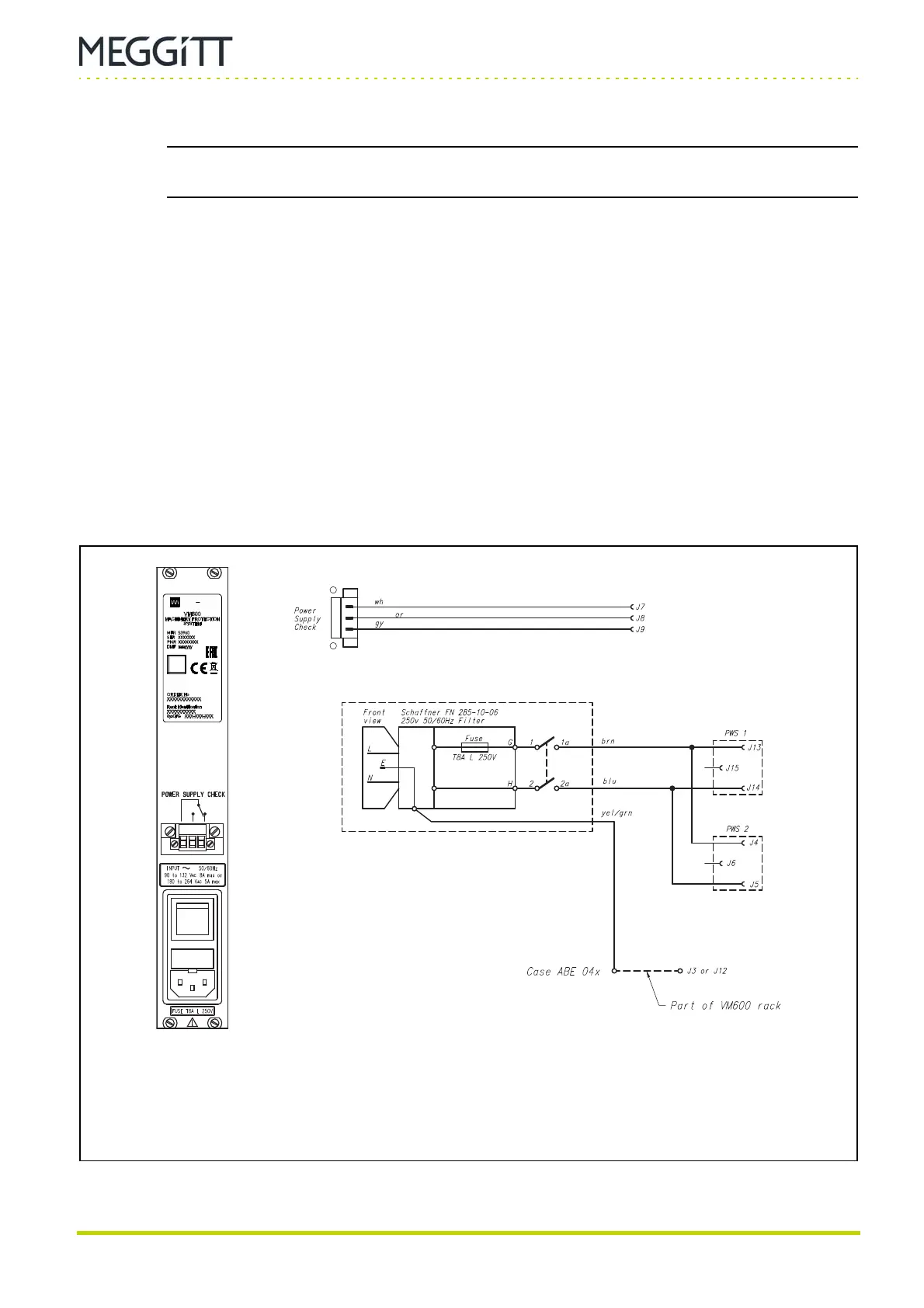

Figure 2-21: AC-input (120/230 V
AC
) panel with a common input
(mains socket and on/off switch)
(a) Rear panel (b) Wiring details
(Rear panel
connections)
(Internal to
VM600 rack)
