Meggitt vibro-meter VM600 User Manual

HARDWARE MANUAL Document reference MAMPS-HW/E
VM600 machinery protection system (MPS) Edition 18 - March 2022
2-38
RPS6U rack power supply (ABE04x only)
OVERVIEW OF VM600 MPS HARDWARE
2.10.9.9 AC-input (120/230 V
AC
) panel with individual inputs (screw-terminal connectors and
on/off switches)
This rear panel has two AC inputs (120/230 V
AC
) with screw-terminal connectors, on/off
switches and rear-panel fuses that provide individual inputs to the AC-input version of the
RPS6U power supplies in a VM600 rack.
Figure 2-25 shows:
a. The associated panel at the rear of the ABE04x rack
Rear panel ordering number: 200-582-915-NHh
(equivalent VM600SYS order option code: F150).
b. Details of the associated VM600 rack power supply wiring.
(The front panel of the AC-input version of the RPS6U rack power supply is shown in
Figure 2-16.)
A VM600 rack power supply solution using this AC-input panel is intended for use with two
external AC-mains (120/230 V
AC
) supplies and can support external power supply
redundancy. See 2.10.7 VM600 racks and power supply redundancy and Table 2-1.
vibro meter
DATA
MATRIX
2D

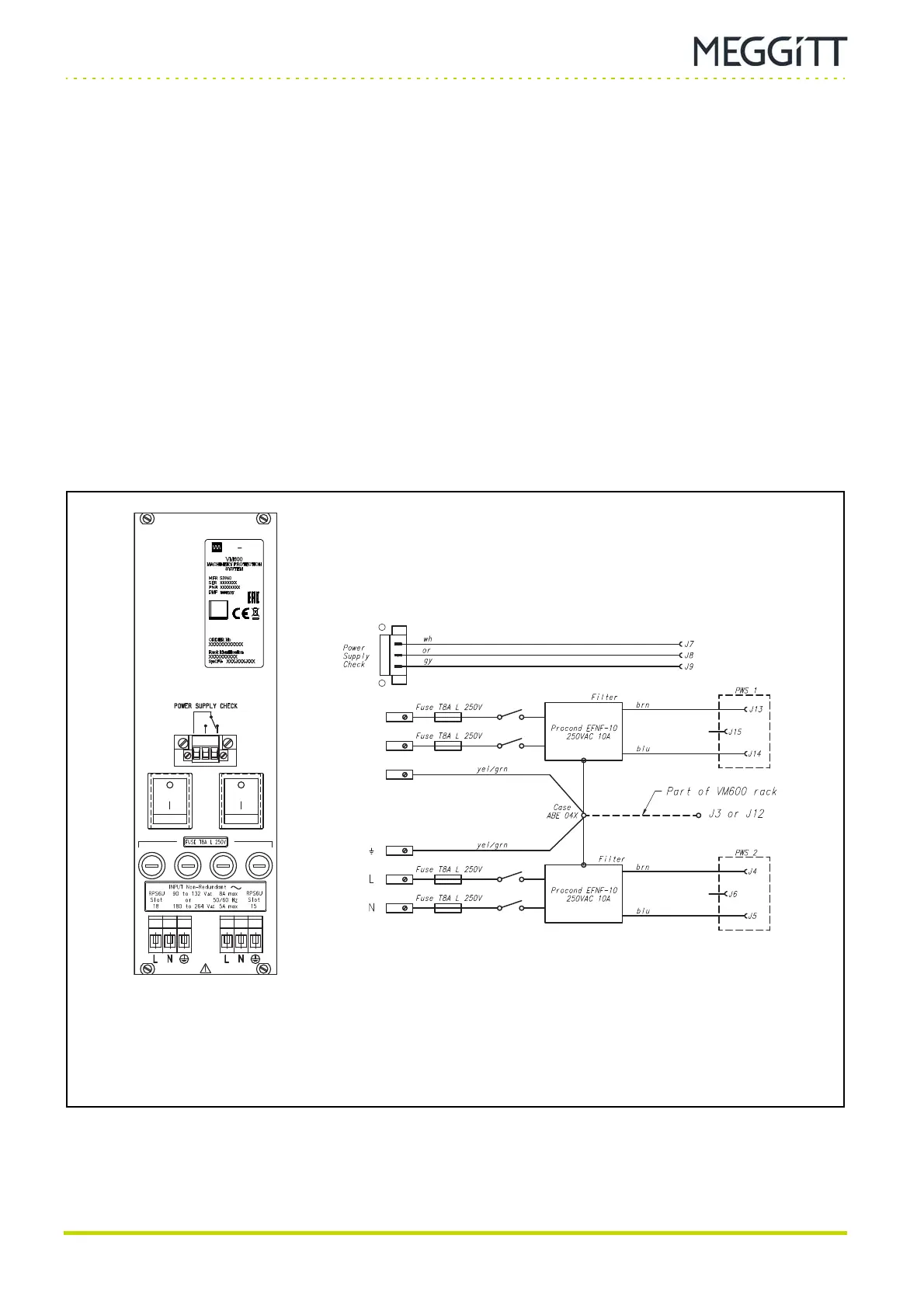

Figure 2-25: AC-input (120/230 V
AC
) panel with individual inputs
(screw-terminal connectors and on/off switches)
(a) Rear panel (b) Wiring details
(Rear panel
connections)
(Internal to
VM600 rack)
