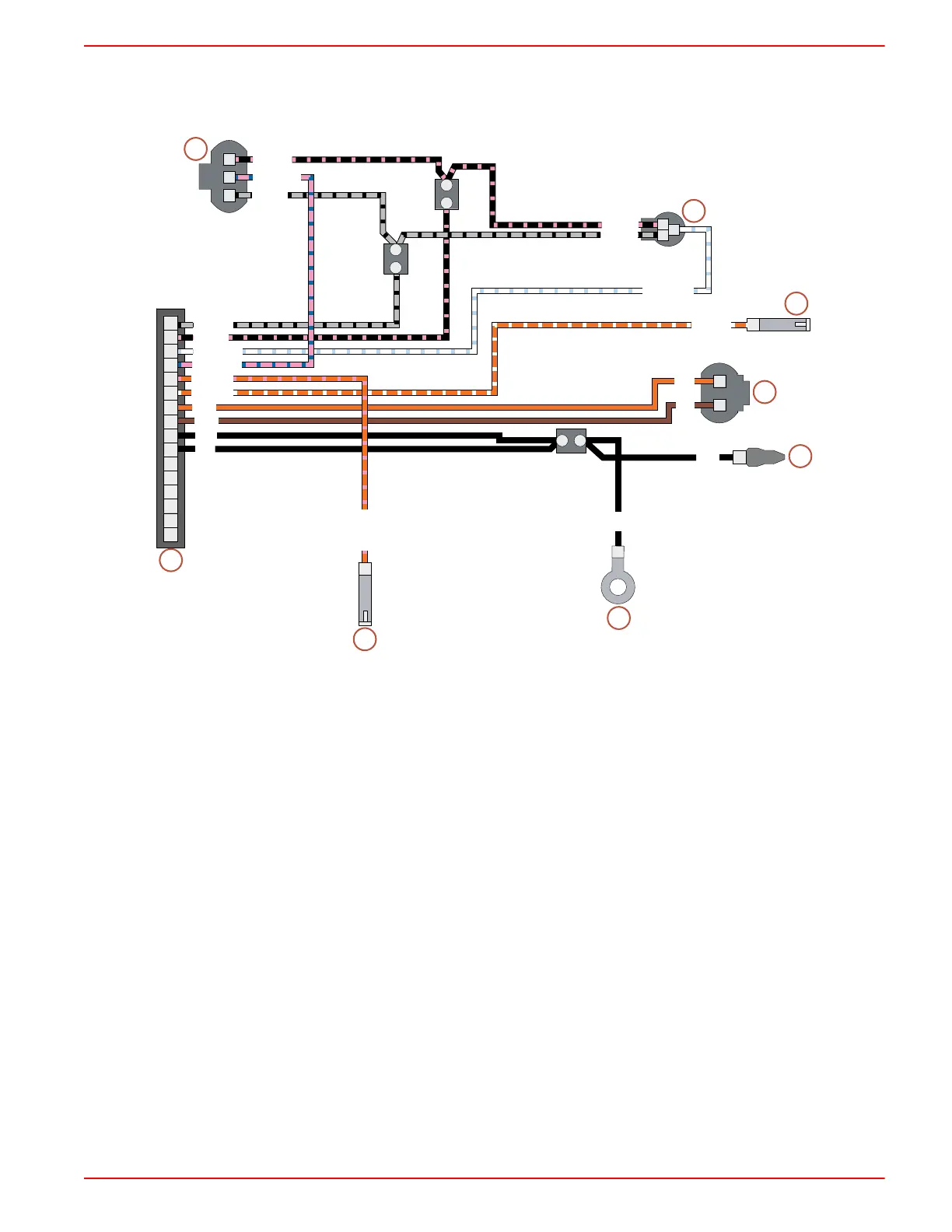

Wiring Diagrams
Transom Harness—MPI
B
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
B
A
C
1
B
A
C
1
R
L
1
R
L
R
L
BLK-PNK
BLK-PNK
BLK-PNK
WHT-LT BLU
WHT-LT BLU
BLK
PNK-DK BLU
PNK-DK BLU
ORN-PNK
ORN-WHT
ORN-WHT
ORN
ORN
BRN
BRN
BLK
BLK
BLK
GRA-BLK
GRA-BLK
GRA-BLK
ORN-PNK
A
23812
1
a
b
c
d
e
f
g
h
a - Steering
b - Pitot
c - Analog trim
d - Mercathode
e - Analog trim
f - Ground
g - Digital Trim
h - 16 pin connector
