Filling Coolant Recovery Bottle
NOTE: This section applies to Closed Cooled models only.
1. Remove cap from coolant recovery reservoir and fill to FULL mark with coolant solution.
Reinstall cap.
2. Recheck coolant level after first WOT boat test and add coolant, if necessary.
3. Maintain coolant level in coolant recovery reservoir between ADD and FULL marks with engine
at normal operating temperature.
Trim Limit Switch Adjustment
ANALOG GUAGES
!
CAUTION
Trimming the sterndrive creates pinch points, which can cause personal injury. Stay clear from
the sterndrive when trimming or tilting.
IMPORTANT: Follow these procedures exactly as outlined below. Incorrect switch adjustment can
cause the drive unit to move beyond the gimbal ring support flanges, causing product damage.
1. Alpha sterndrive, adjust trim limit switch as follows:
NOTE: Trim limit switch is located on the port side of gimbal ring.
a. Loosen screws and turn trim limit switch clockwise to end of slots.
a
b
b
7879

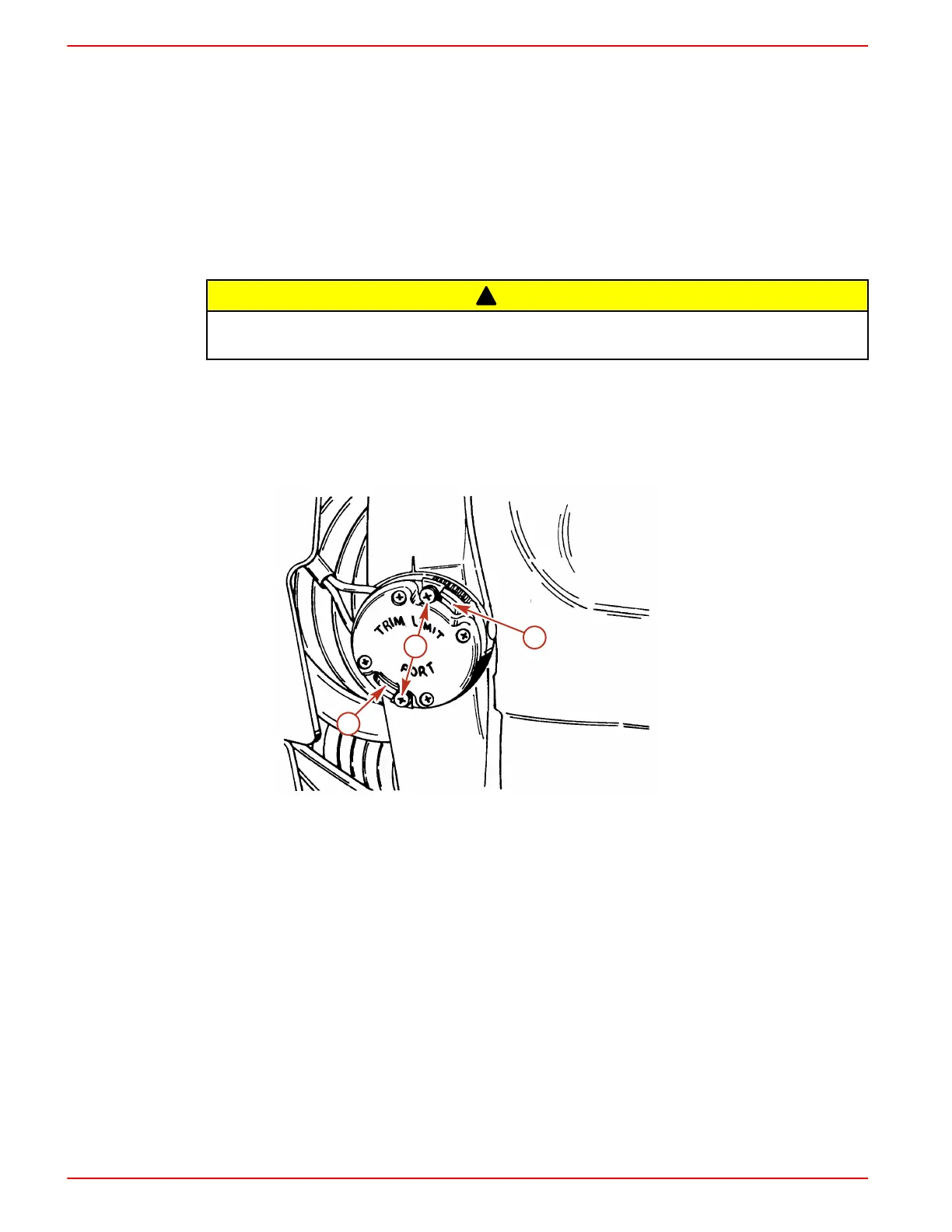

Trim limit switch
a - Screws b - Slots
b. Ensure drive unit is in the full DOWN/IN position.
c. Using the Trim button on the remote control, trim drive unit UP/OUT. DO NOT USE
TRAILER BUTTON.
