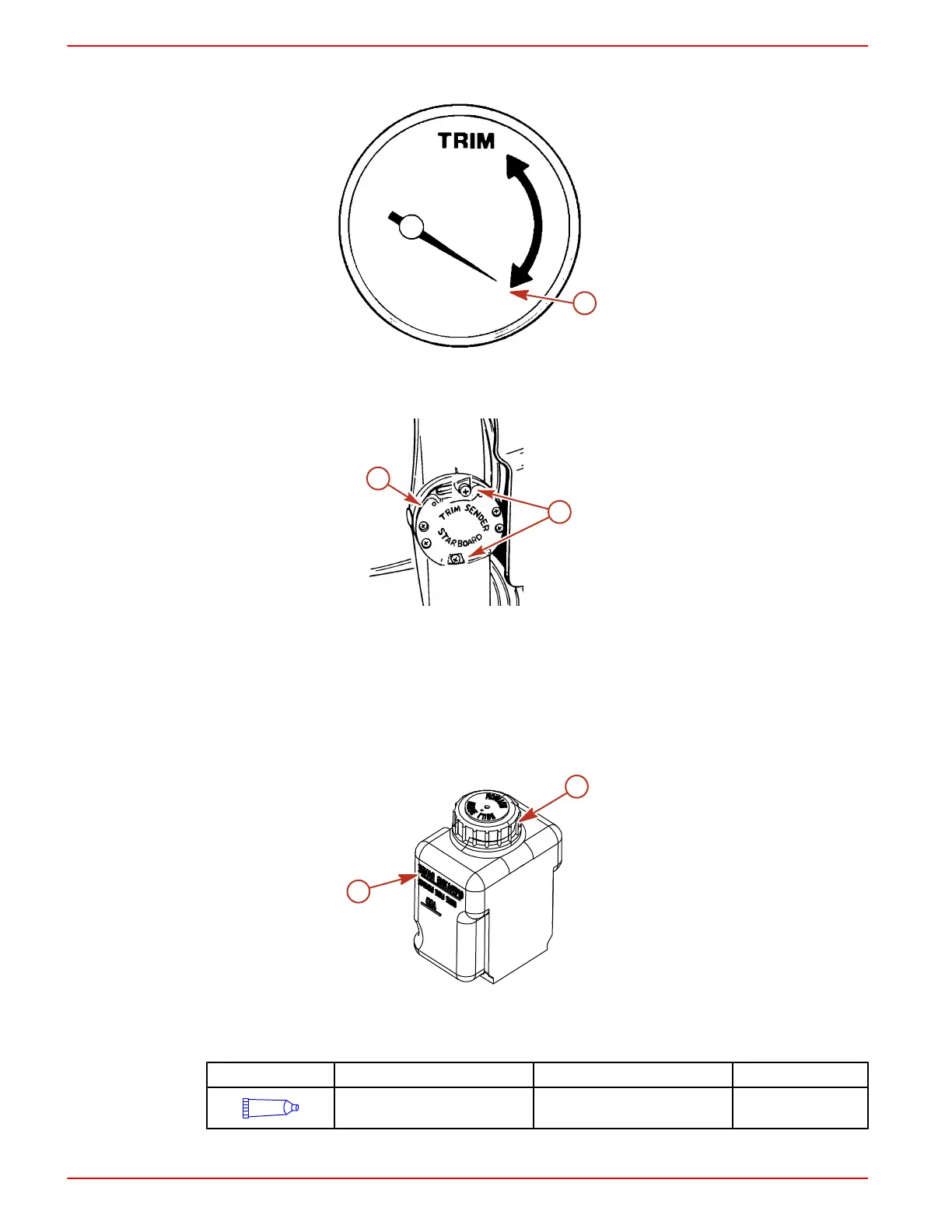

4. Rotate trim position sender as required to show full DOWN/IN position on dashboard
instrument as shown.
a
7883
a - Trim gauge needle
5. Tighten retaining screws and turn ignition key to the "OFF" position.
a
b
7882
a - Retaining screws b - Trim position sender
Drive unit gear lube monitor
IMPORTANT: Oil level in gear lube monitor will rise and fall during drive operation; always check
oil level when drive is cool and engine is shut down.
1. Remove the gear lube monitor cap.
2. Fill the gear lube monitor to the Operating Range (full) line.
b
a
7884
Typical
a - Gear lube monitor cap b - Operating Range (full) line
Tube Ref No. Description Where Used Part No.
87
High Performance Gear
Lubricant
Gear Lube Monitor 92-858064K01
