DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 52 / 54 90-899883183 DECEMBER 2007

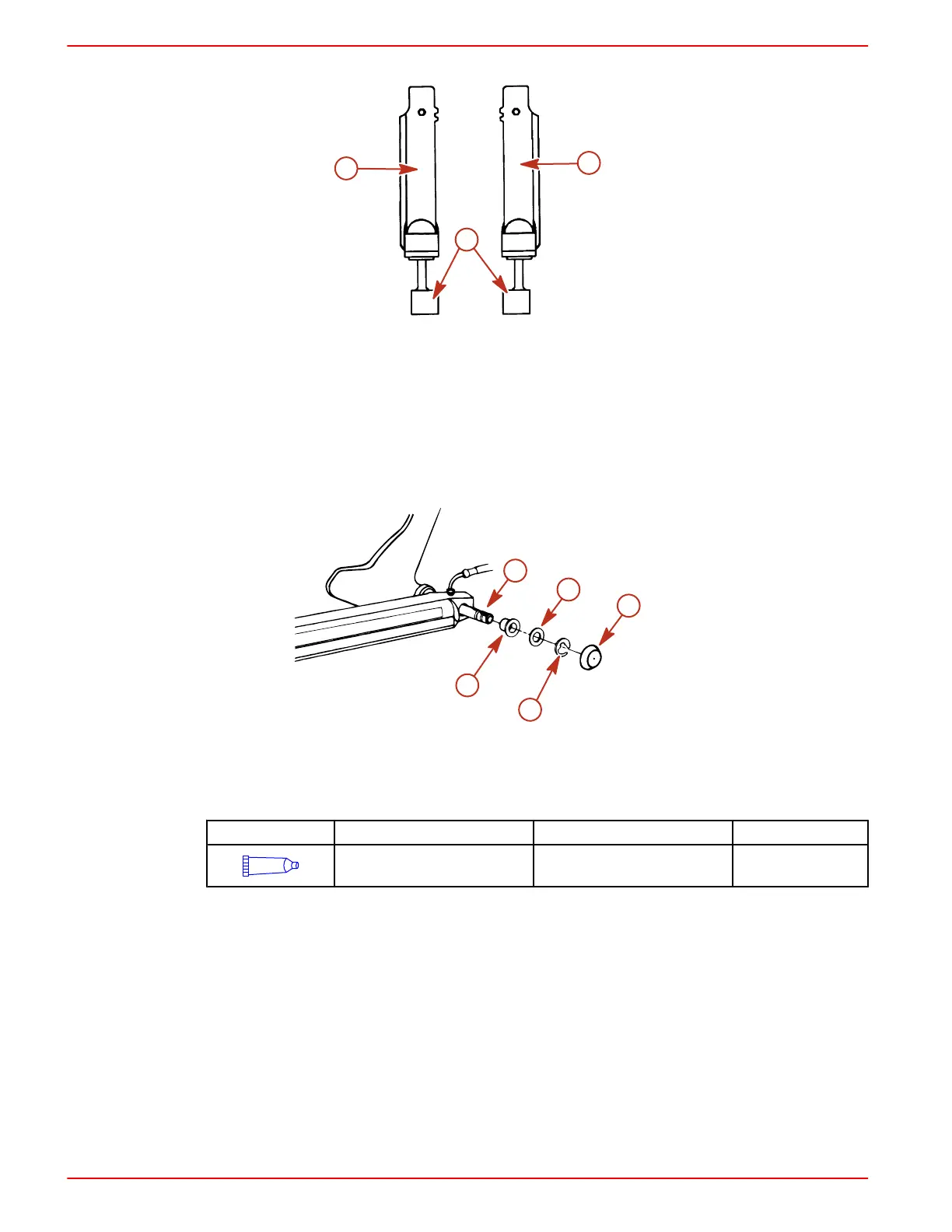

5. Position trim cylinder rear connecting ends.
a
b
c
7848
a - Port trim cylinder
b - Starboard trim cylinder
c - Connecting ends (offset as shown)
Alpha Trim Cylinder Installation
1. Install trim cylinders forward mounting hardware.
2. Coat area in trim cylinder between bushings with lubricant.
3. Replace anchor pin and install bushings and washers.
4. Attach E‑rings and plastic caps to end of anchor pin.
b
d
a
c
e
4827
a - Front anchor pin
b - Bushing (port and starboard) (4)
c - Flat washer (port and starboard) (2)
d - E‑ring (port and starboard) (2)
e - Plastic caps (port and starboard) (2)
Tube Ref No. Description Where Used Part No.
95
2-4-C Marine Lubricant with
Teflon
Trim cylinder hardware 92-802859A 1
5. Install trim cylinders rear mounting hardware.
6. Coat area in trim cylinder between bushings with lubricant.
7. Replace anchor pin and install bushings and washers.
To Next Page
