DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 34 / 54 90-899883183 DECEMBER 2007
Fluid Connections

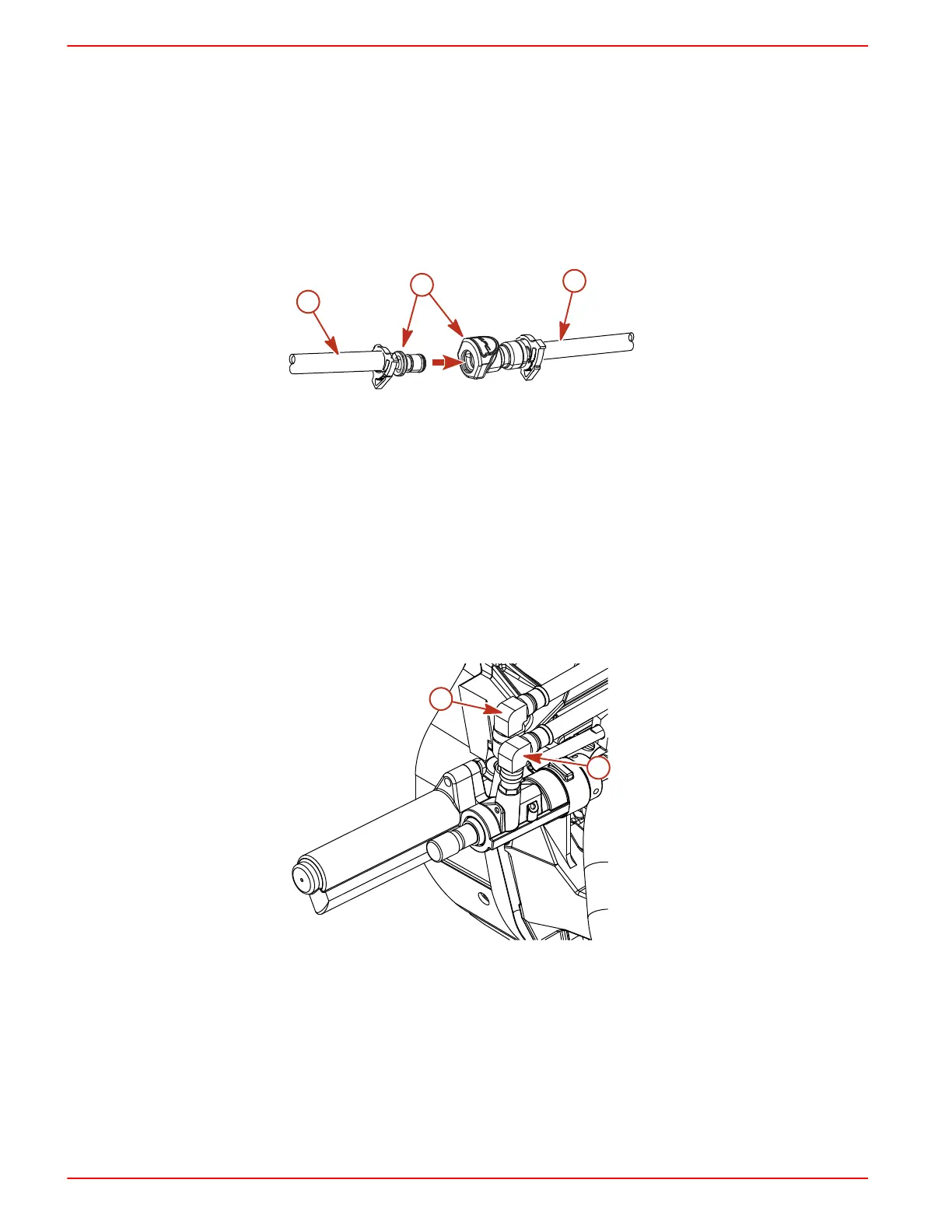

GEAR LUBE MONITOR CONNECTION
IMPORTANT: Route hoses to determine the minimum length of hose needed, then trim the excess
to avoid low spots in the system. Avoid kinks and route in a straight path.
1. Locate the white gear lube monitor quick connect at the rear of the engine.
IMPORTANT: The hose must not come in contact with steering system components, the engine
coupler, the U‑joint shaft, or the driveshaft.
2. Fasten the quick connect between the engine portion and the transom portion of the gear lube
monitor hose.
7800
b
c
a
Typical
a - Transom portion
b - Engine portion
c - Quick connect fitting
POWER STEERING HOSES
IMPORTANT: Make hydraulic connections quickly to prevent leaks.
1. Disconnect the quick connect fittings on the power steering hoses.
2. Connect the power steering hoses to the control valve. Ensure that the quick connects snap
into place.
3. Route hoses to avoid contact with steering system components.
4. Use extra hose clips to secure hose to transom.
b
a
6686
a - Pressure hose b - Return hose
NOTE: Power Steering Fluid can be added at this time if desired.
