DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 16 / 54 90-899883183 DECEMBER 2007
NOTICE to INSTALLER
Refer to Steering Helm and Cable for steering cable selection and coupler nut locking requirements.
d
a
b
c
e
f
h
g
7708

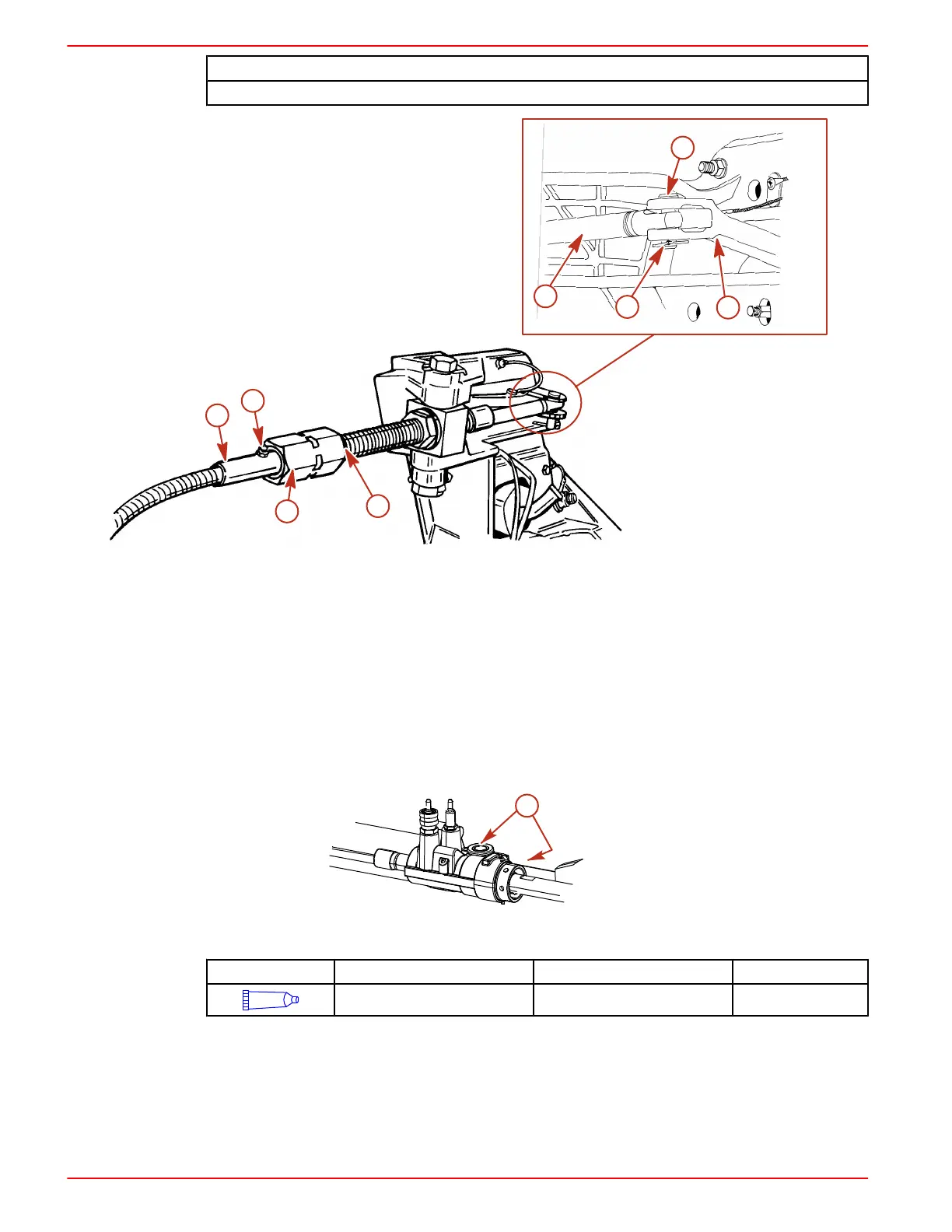

a - Steering cable
b - Grease fitting
c - Cable coupler nut
d - Cable guide tube
e - Steering cable end
f - Cotter pin
g - Clevis pin
h - Steering lever
Power Steering Instalation
NOTE: For dual installations, power steering unit can be mounted on port or starboard transom
assembly. Measure exact distance between power package centerlines. Select a tie bar from
Mercury Precision Parts / Quicksilver Accessory Guide. Refer to tie bar installation instructions
before proceeding.
1. Inspect the bushings for debris. Lubricate the power steering bushings.
a
7709
a - Bushings
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Power steering bushings 92-802865Q02
2. Remove the protective shipping caps.
To Next Page
