SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 15 / 54

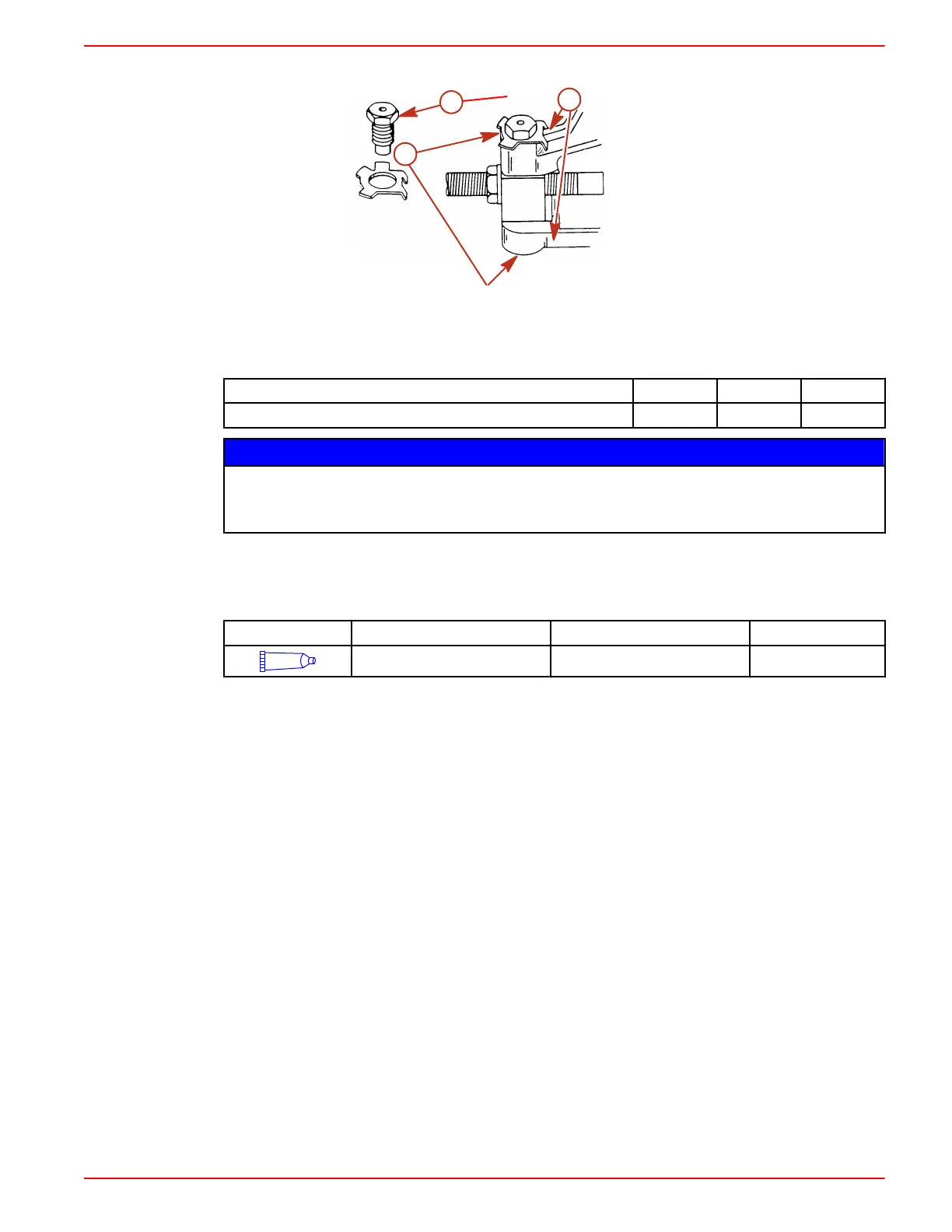

5. Torque pivot bolts. Bend washer tabs against corresponding flats on bolt heads.
a
bc
A
7707
Manual steering
a - Tab washers
b - Ridge
c - Pivot bolts
Description Nm lb. in. lb. ft.
Pivot Bolts 34 25
NOTICE
Fastening any items to the steering cables or outer casings prevents normal operation. The
steering cable and outer casing must be free to move back and forth. Do not fasten any items
to the steering cable and outer casing.
6. Connect steering cable as follows:
a. Remove shipping cap from both ends of steering cable guide tube or control valve spool.
b. Coat steering cable end with a liberal amount of lubricant.
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Steering cable end 92-802865Q02
c. Install steering cable and secure with hardware as specified.
To Next Page
