Mercury MerCruiser 3.0 MPI User Manual

STARTING AND ELECTRICAL SECTION - 7
Page 16 / 22 90-899883183 DECEMBER 2007

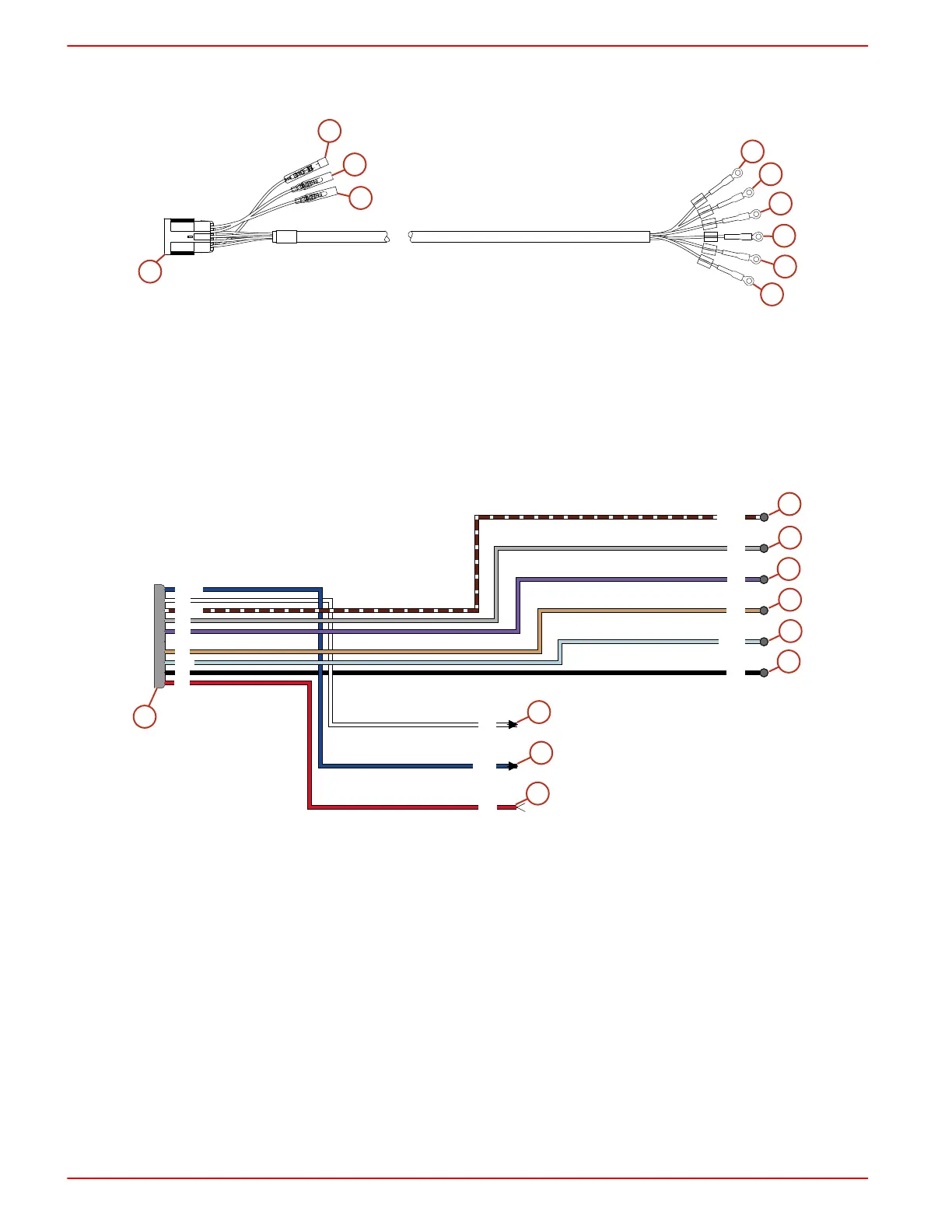

Analog Gauge Harness
DRAWING
12312
8
9
10
2
3
4
5
6
7
1
1 - Connector to boat harness
2 - Trim
3 - Tach
4 - Key on (+)
5 - Temp
6 - Oil
7 - Ground (–)
8 - CAN (+) or spare
9 - CAN (–) or spare
10 - 12V (+)
DIAGRAM
RED
RED
DK_BLU
DK_BLU
WHT
WHT
BLK
BLK
LTBLU
LTBLU
TAN
TAN
PPL
PPL
GRY
GRY
BRN_WHT
BRN_WHT
A B C D E F G H J K
12318
1
2
3
4
5
6
7
8
9
10
1 - Connector to boat harness
2 - Trim
3 - Tach
4 - Key on (+)
5 - Temp
6 - Oil
7 - Ground (–)
8 - CAN (+) or spare
9 - CAN (–) or spare
10 - 12V (+)
