DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 22 / 54 90-899883183 DECEMBER 2007

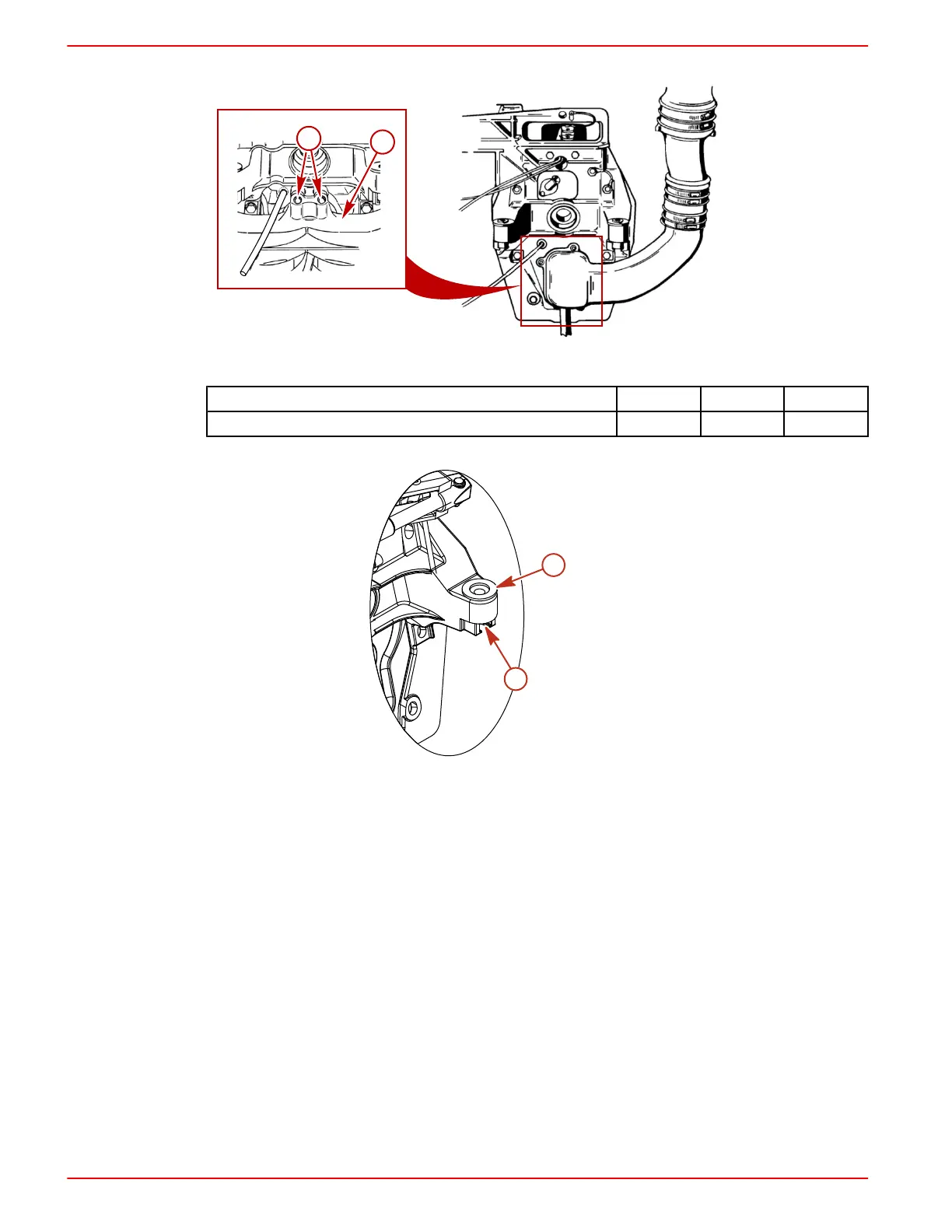

4. Install exhaust pipe assembly as shown, using 4 bolts and lockwashers. Torque bolts.
a - Exhaust pipe b - Bolts and lockwashers (4)
Description Nm lb. in. lb. ft.
Exhaust pipe bolts 34 25
5. Position rear engine mount attaching hardware on inner transom plate mounts as shown.
a
b
7839
a - Fiber Washer (2) b - Locknut (2)
3.0 MPI Engine Preparation
1. Remove and read all tags attached to engine.
2. Remove all hardware that secures engine to shipping container.
3. Connect battery cables to engine. Observe the following:
a. Ensure that the grounding stud and starter solenoid terminal are free of paint or any other
material that could cause a poor electrical connection.
b. Install the battery negative (‑) cable directly to the ground stud on the port or starboard
side of the flywheel housing.
c. Install battery positive (+) cable directly to the large starter solenoid stud.
