DRIVE SYSTEM AND ENGINE INSTALLATION SECTION - 6
Page 4 / 54 90-899883183 DECEMBER 2007

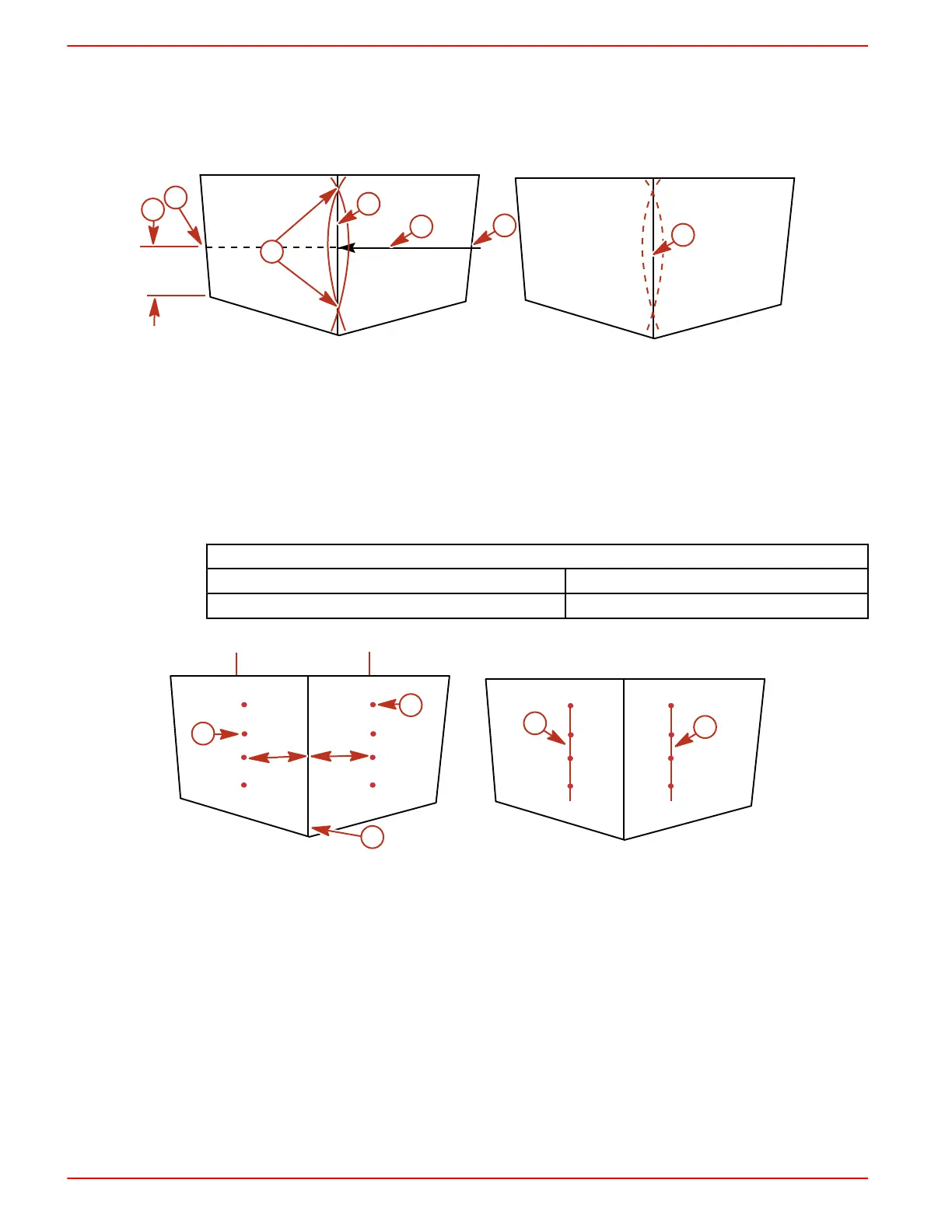

2. If unknown, a compass can be used to locate the vertical centerline:
a. Mark identical locations on each side of the boat 29.4 cm (12 in.) from the bottom of the
hull.
b. Position the fixed end of a compass at the marks and draw arcs on the transom.
c. Draw the crankshaft vertical centerline through the intersection points of the 2 arcs.
b
b
a
c
e
d
e
7687
Single engine installation
a - 29.4 cm (12 in.)
b - Identical side marks
c - Compass arc
d - Arc intersection points
e - Crankshaft vertical centerline
DUAL ENGINE
1. Locate and mark the vertical centerline on the transom. Refer to Single Engine procedure.
2. Make a set of marks equal to 1/2 the minimum distance between crankshaft vertical centerlines
on either side of the vertical centerline
Minimum Distance Between Crankshaft Vertical Centerlines (Dual Side‑By‑Side)
Model cm (in.)
181 cid / 3.0 liter 83.8 (33)
3. Draw the 2 crankshaft vertical centerlines through the intersection of the marks.
b
c
7688
c
b
a
Dual installation
a - Vertical centerline
b - 1/2 minimum distance between
crankshaft centerline marks
c - Crankshaft vertical centerlines
Finding Crankshaft Horizontal Center Line (X‑dimension)
X‑dimension can be measured by the 90 Degree Tool Method or by the Tape Measure Method.
