SECTION - 6 DRIVE SYSTEM AND ENGINE INSTALLATION
90-899883183 DECEMBER 2007 Page 21 / 54
Engine Installation
Transom Preparation for the Alpha Drive

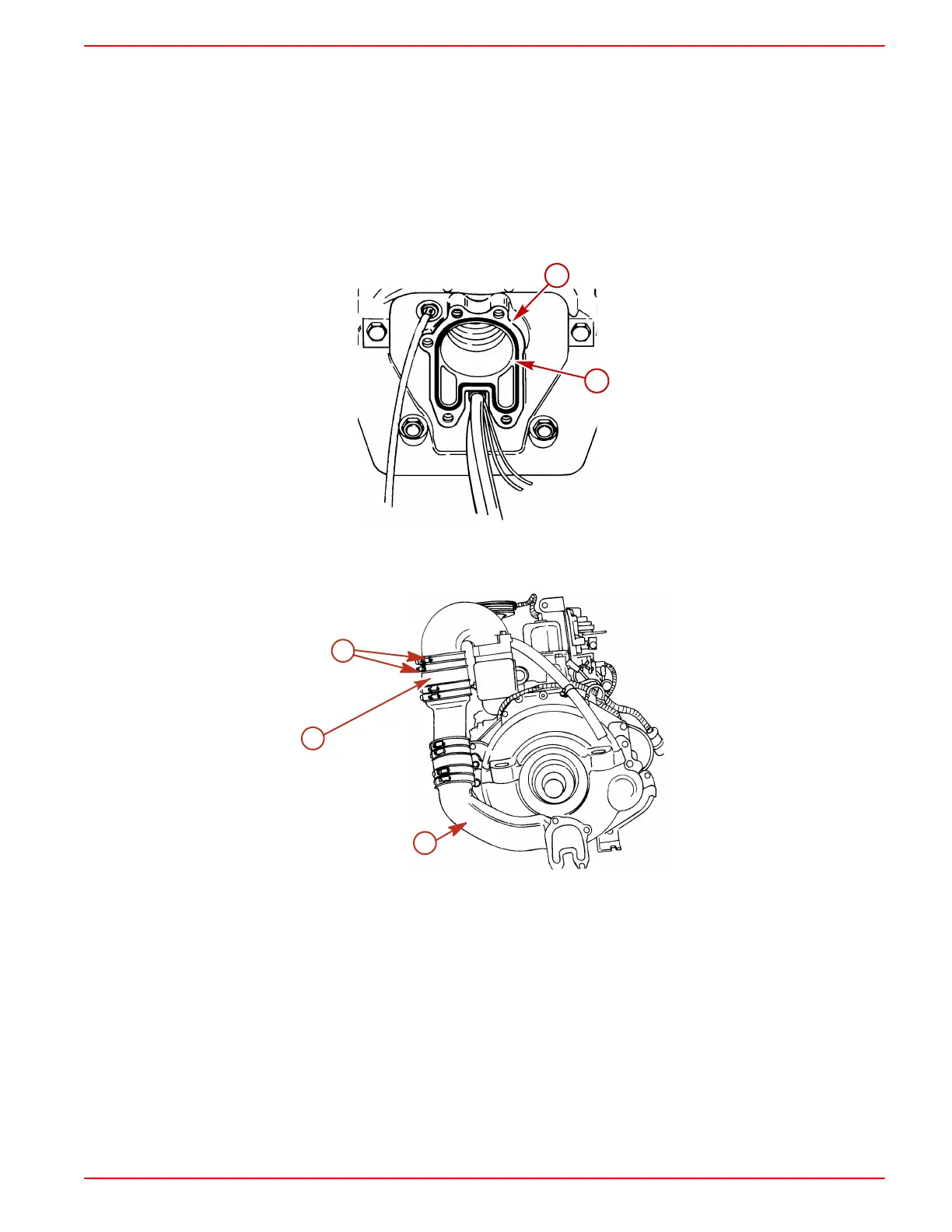

IMPORTANT: Exhaust pipe and gimbal housing mating surfaces must be clean and free of nicks
and scratches and O‑ring must be properly seated in groove or water and exhaust may leak into
boat.
1. Ensure the exhaust pipe and gimbal housing mating surfaces are clean and free of nicks and
scratches.
2. Ensure the O‑ring is properly seated in the groove.
a
b
6638
a - Gimbal housing mating surface b - O‑ring
3. Loosen hose clamps, remove exhaust pipe and exhaust bellows from engine.
a
c
b
7837
3.0 TKS model
a - Exhaust pipe
b - Bellows
c - Clamps
